Hook Anchor Bolt
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of Hook Anchor Bolts
Sleeve Anchor Bolt Title:
High Strength sleeve anchor with l-hook q235 carbon steel j hook with bolt for water heater
Structural Features

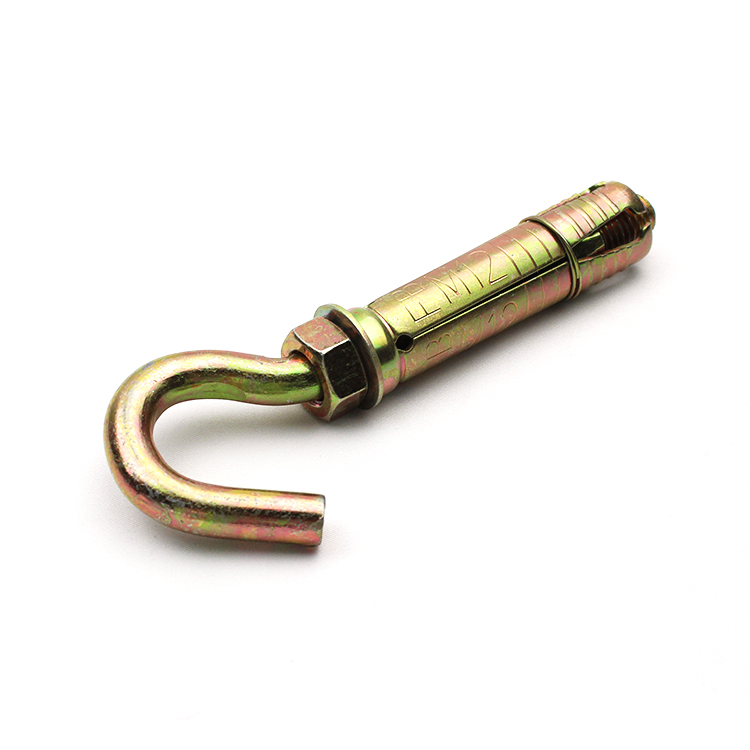

J-shaped hook: a 180 ° curved hook at the end, resembling the letter "J", used for hanging pipelines or equipment;

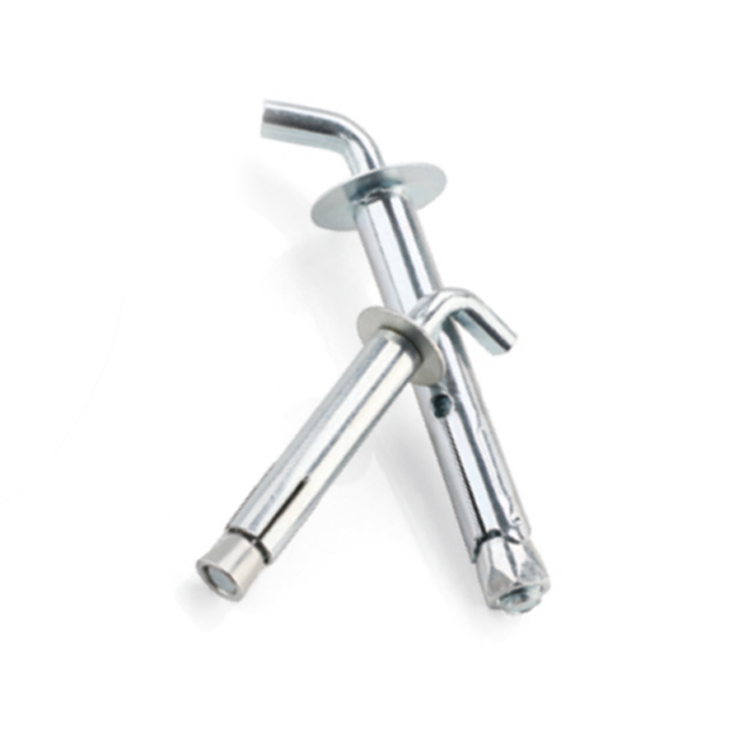

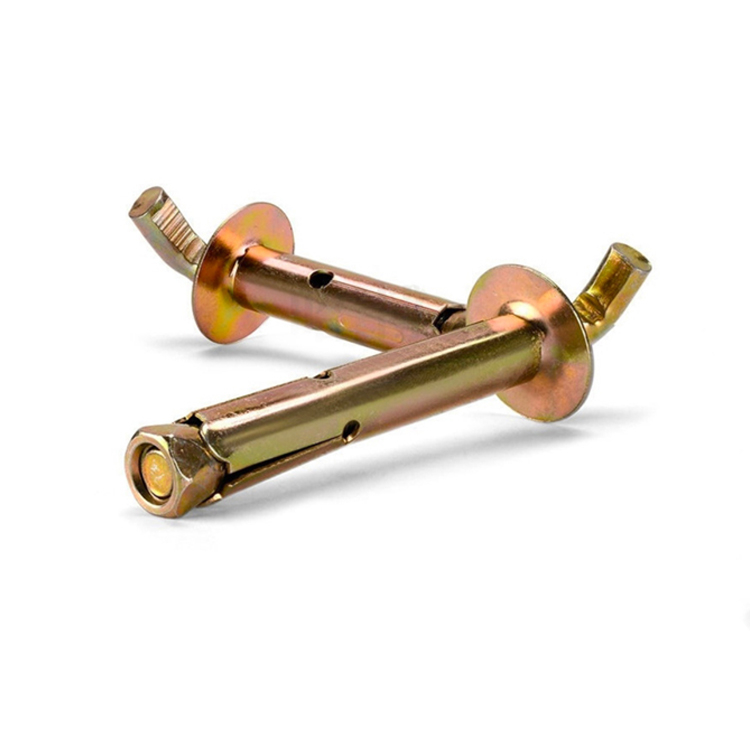

L-shaped hook: 90 ° right angle bending design, suitable for fixed corner scenes;

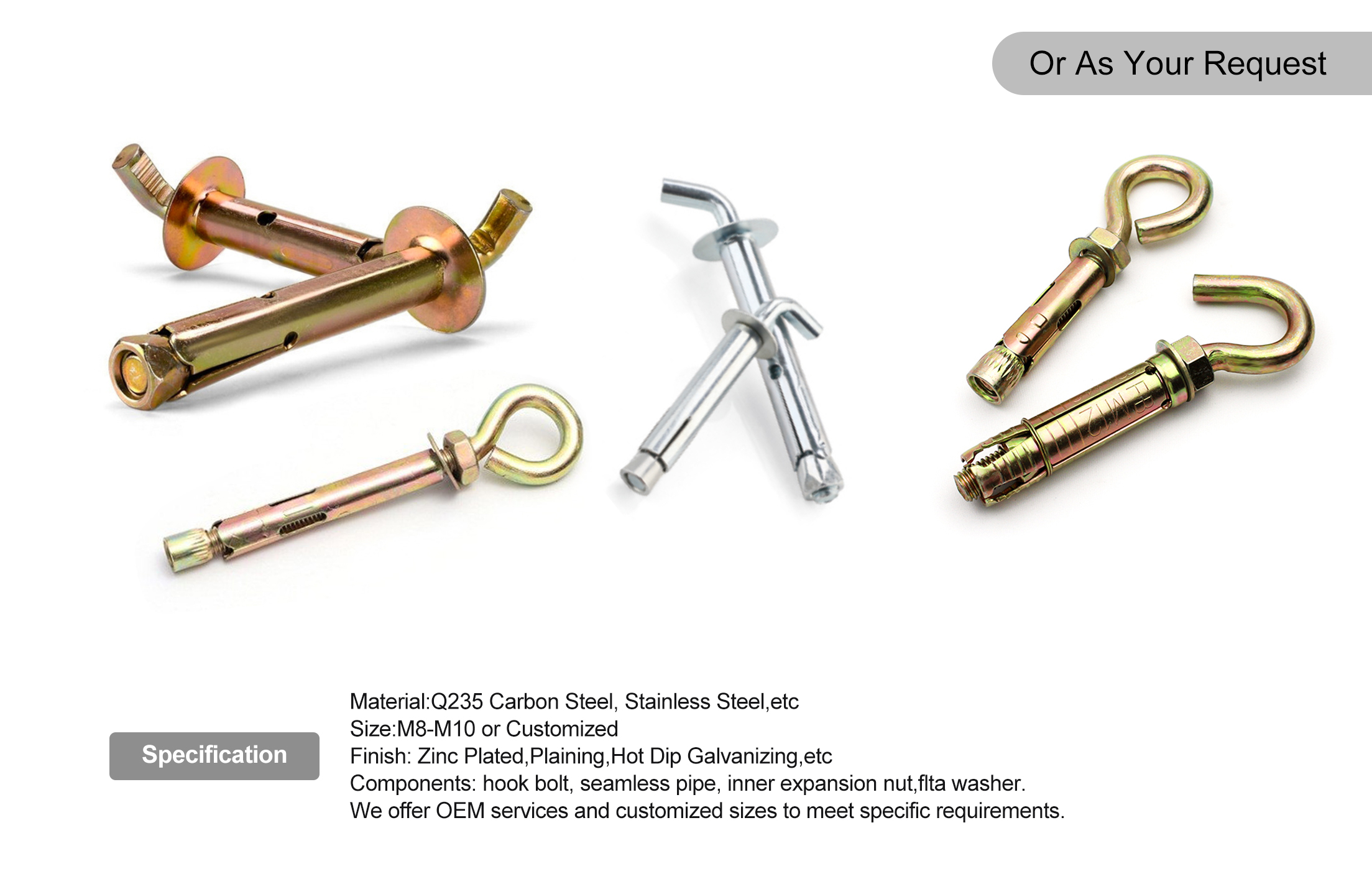

Material: Carbon steel/stainless steel (SS304 common) surface galvanized or hot-dip galvanized treatment;
Size:M8-M10 or Customized
Grade:4.8-12.9 Grade or As per spec
Finish: Zinc Plated,Plaining,Hot Dip Galvanizing,etc
Components: hook bolt, seamless pipe, inner expansion nut,flta washer.
We offer OEM services and customized sizes to meet specific requirements.

| Item | Water Heater Hook Bolt |
| Size | M8-M10 or Customized |
| Material | Q235 Carbon Steel,Stainless Steel,etc |
| Components | Hook bolt,seamless pipe,inner expansion nut, flat washer or as your requirements |
| Surface Treatment | Plaining,Zinc Coating,Hot Dip Galvanizing,etc |
| Product Feature | Easy and fast installation |
| Application | Construction field, concrete, energy industrial,etc |
Application:
Expansion anchoring system for electric water heaters, suspension system for building exterior wall pipelines, anchoring points for heavy machinery, etc.

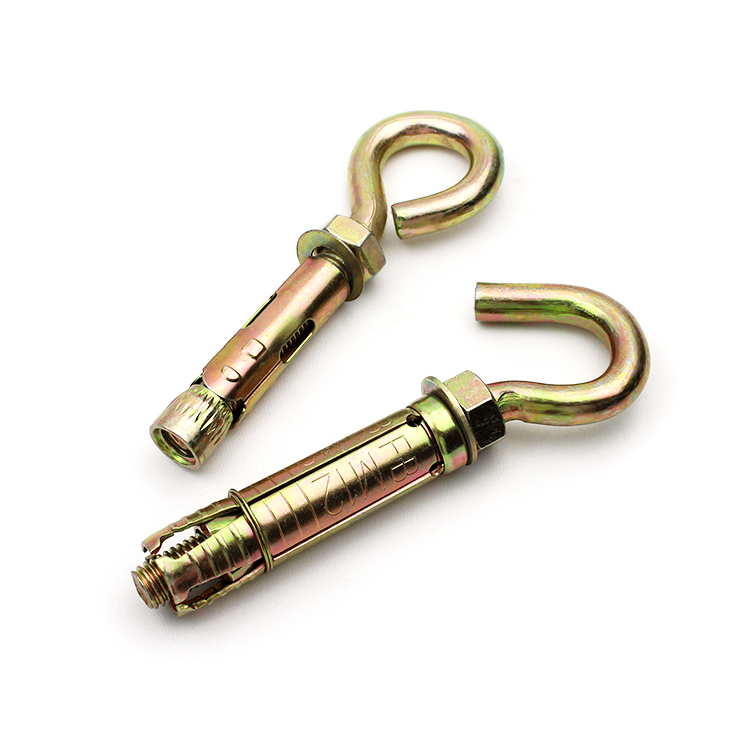

Eye Type Hook Bolt
Functional design
The top circular hole design facilitates the threading of ropes/chains;
The threaded rod body provides adjustable fixed depth;
Hot dip galvanizing treatment enhances weather resistance;
Notes:
L-shaped anchor bolts are only suitable for non seismic scenarios (such as fixing small equipment);
J-type anchor bolts are suitable for scenarios that require mechanical locking, such as hollow block base layers;
J/L-type anchor bolt - flat fixed equipment (corrosion resistance requirement: moderate)
Eye shaped hook bolt - suspension load-bearing system (corrosion resistance requirement: high Hot Dip)
