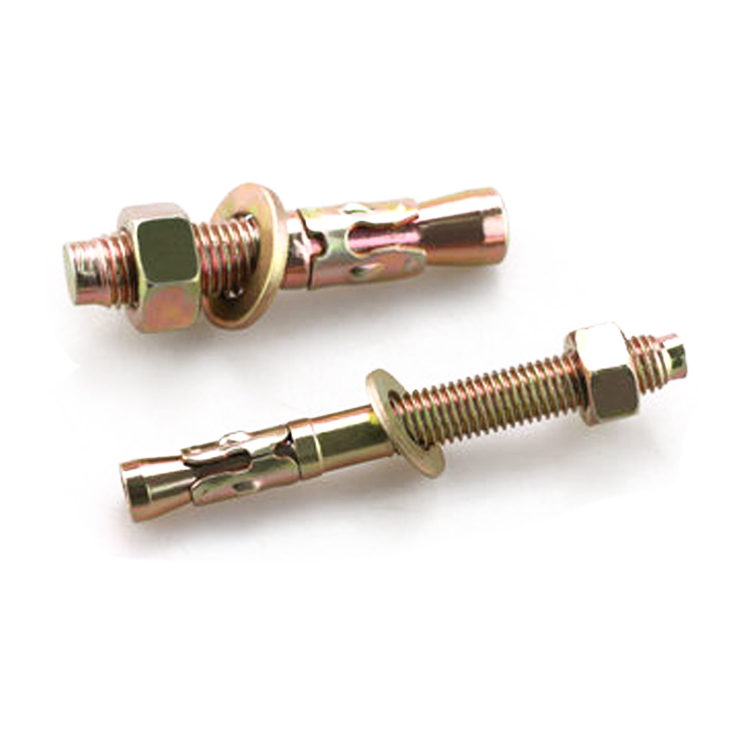

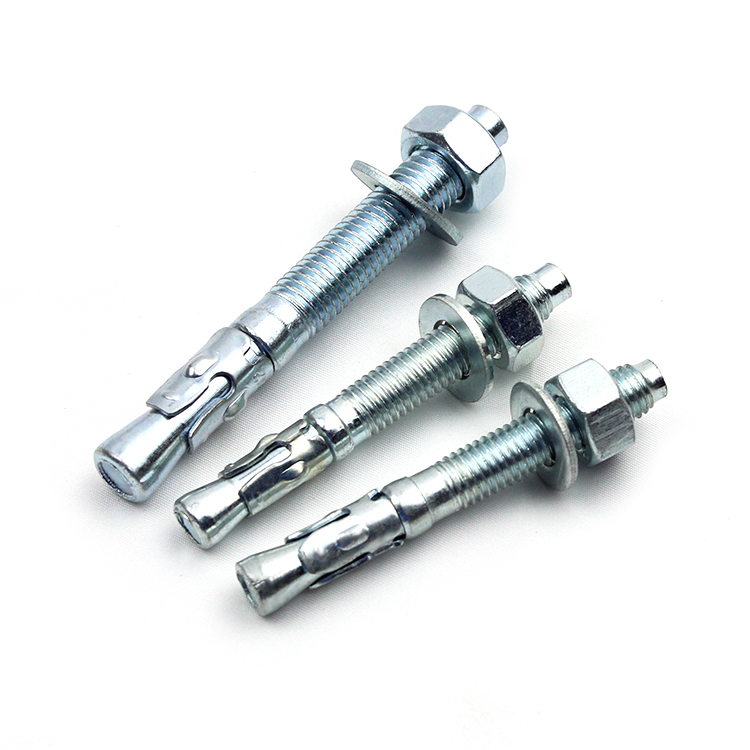

Wedge Anchor
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of Wedge Anchors
Wedge Anchor Bolt Title:
High Quality expansion wedge anchor bolt steel & stainless steel concrete anchor bolt
Core advantages
Instantaneous load bearing: Using patented mechanical locking technology, it can directly bear the design load without waiting for curing time after installation, especially suitable for emergency reinforcement scenarios.
Dynamic stability: The unique wedge-shaped expansion structure is designed with multi-directional stress dispersion, which can maintain over 90% of the initial preload force under continuous vibration, impact and other dynamic load conditions, meeting the high dynamic environmental requirements of bridges, rail transit, etc.
Anti corrosion upgrade: We offer two anti-corrosion solutions: hot-dip galvanizing and A2/A4 stainless steel, suitable for extreme corrosive environments such as coastal areas and chemical plants.
Aperture adaptation: The innovative elastic sleeve design enables a single product diameter to be compatible with a drilling tolerance of ± 1mm, effectively solving the problem of on-site drilling deviation and significantly improving construction efficiency.
Material specifications:
Carbon steel: ASTM grade 8.8, hot-dip galvanized;
Stainless steel: AISI 316, passivated treatment;
Standard diameter: M6-M24 or Customized
Manufacturing process:
Adopting multi station cold heading forming+fully automatic heat treatment line+optical sorting and detection;

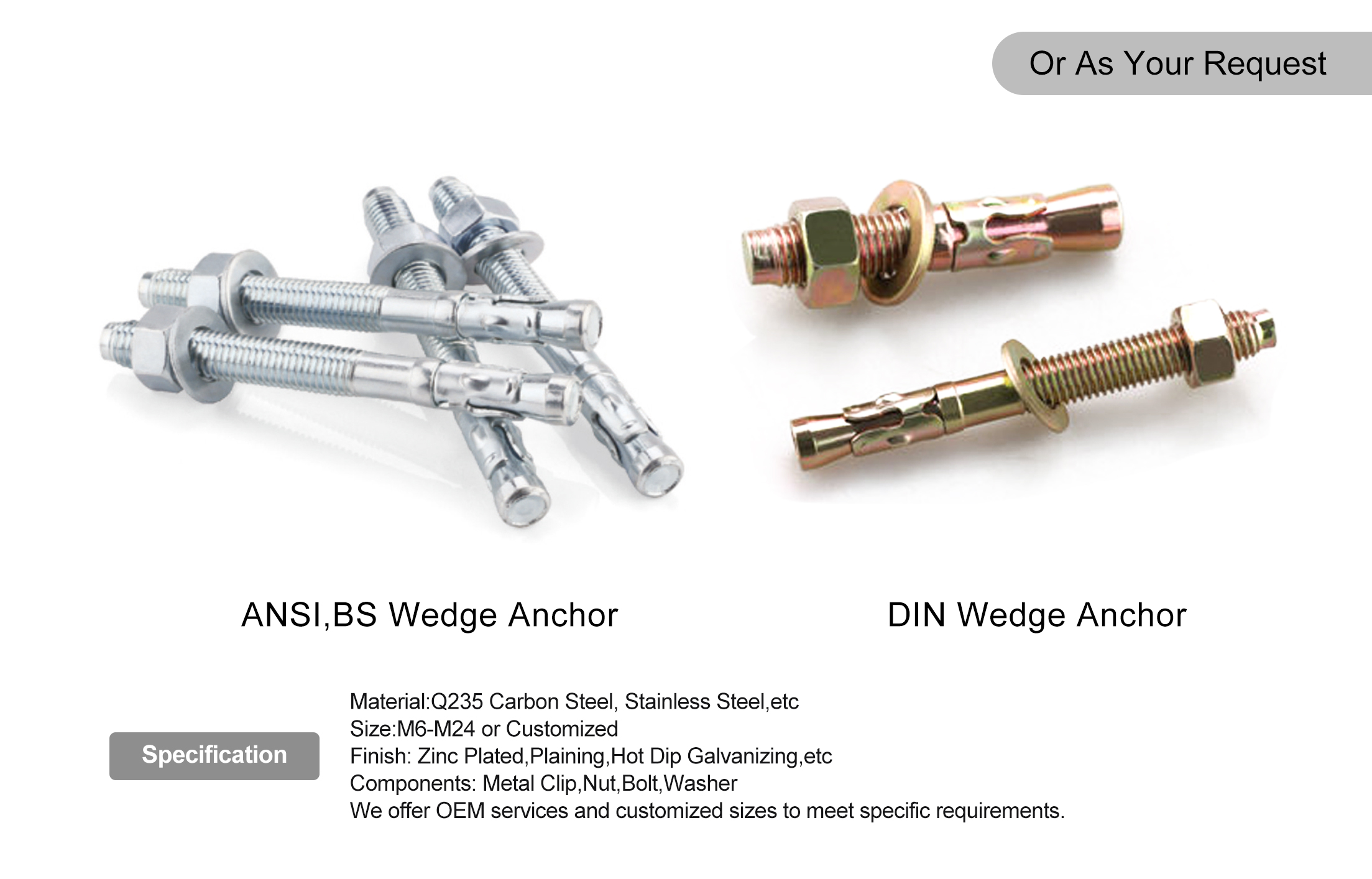

| Item | Wedge Anchor |
| Size | M6-M24 or Customized |
| Material | Q235 Carbon Steel,Stainless Steel,etc |
| Components | Metal Clip,Nut,Bolt,Washer or as your requirements |
| Surface Treatment | Plaining,Zinc Coating,Hot Dip Galvanizing,etc |
| Product Feature | Easy installation, large load, wide use. |
| Application | Construction field, concrete, energy industrial,etc |
Application:
Building structural connections: reinforcement connections between beams, columns, and concrete foundations;
Concrete roof fixation: installation of solar brackets and advertising board bases;
Installation of energy facilities: concrete anchoring of oil and gas pipeline supports and power equipment bases;

Support non-standard customization:
special length (50-500mm), irregular wedge block (trapezoidal/parabolic);
Anti loosening nut (nylon insert/double nut);
