X & Y Pipe Exhaust Connectors
PDM-Racing
| Quantity: | |
|---|---|
Features of Exhaust X pipe Y pipe
Y X Pipe Exhaust Title:
High Quality double x pipe exhaust & exhaust y pipe for automotive exhaust system
Y-shaped exhaust pipe
Structural characteristics: The main pipeline splits into two branches at an acute angle of 30 ° -60 °, reducing fluid resistance and avoiding turbulence.
Core functions:
Split flow optimization: Reduce local erosion in scenarios such as multiple output of chemical reactors and branching of cooling systems in thermal power plants;
Liquid accumulation prevention and control: Eccentric design (such as vertical exhaust pipes for commercial vehicles) prevents the accumulation of condensate.
X-shaped exhaust pipe (cross type)
Functional positioning: Dual exhaust system intersection structure, balancing back pressure and eliminating sound wave interference (optimized for modified car sound waves);
High voltage scenario: requires forging process manufacturing;
Y-shaped tee/X-shaped cross pipe material:
316L stainless steel (corrosion-resistant), carbon steel coated with anti-corrosion coating, etc;
Process:Stamping,Welding,Cutting,etc.
Installation Type: Weld-on

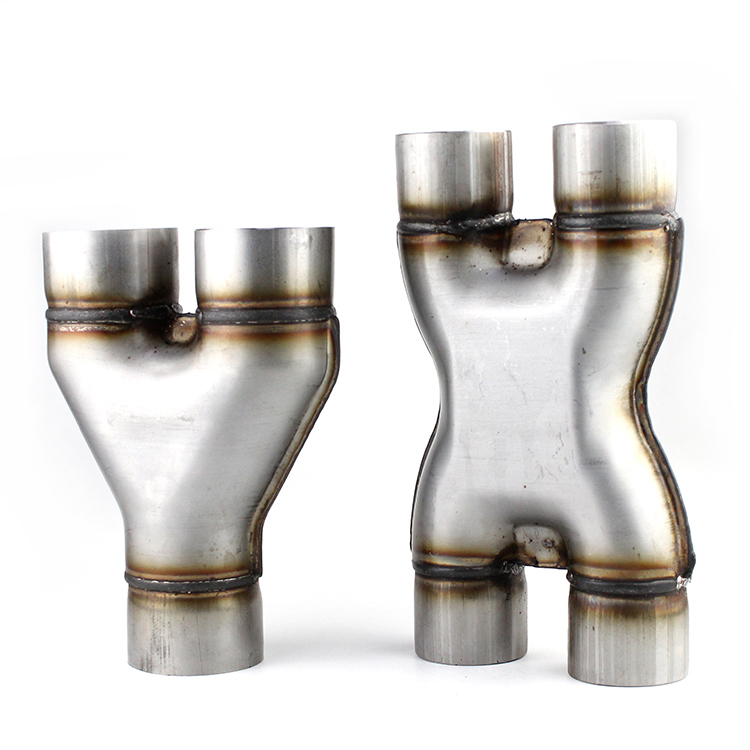

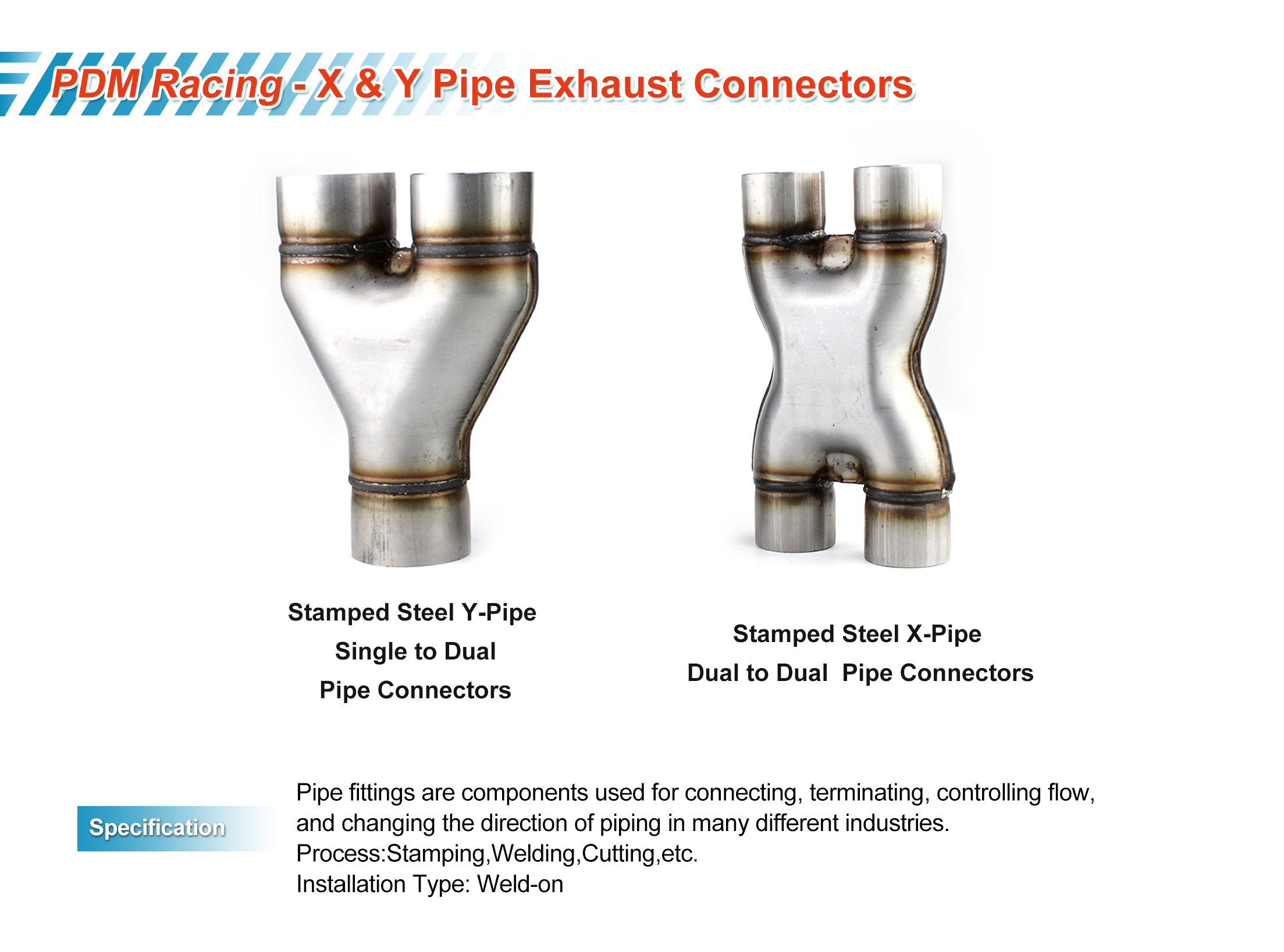

Stamped Steel Y-Pipe Single to Dual Pipe Connectors |
 |
| PART # | Pipe ID Single / Dual | Material |
| SU2-2 | 2" x 2" | Mild Steel |
| SU2-2SS | 2" x 2" | T409 Stainless Steel |
| SU3-3 | 2 1/4" x 2 1/4" | Mild Steel |
| SU3-3SS | 2 1/4" x 2 1/4" | T409 Stainless Steel |
| SU4-3 | 2 1/4" x 2 1/4" | Mild Steel |
| SU4-3SS | 2 1/4" x 2 1/4" | T409 Stainless Steel |
| SU4-4 | 2 1/2" x 2 1/2" | Mild Steel |
| SU4-4SS | 2 1/2" x 2 1/2" | T409 Stainless Steel |
| SU6-3 | 3" x 2 1/4" | Mild Steel |
| SU6-3SS | 3" x 2 1/4" | T409 Stainless Steel |
| SU6-4 | 3" x 2 1/2" | Mild Steel |
| SU6-4SS | 3" x 2 1/2" | T409 Stainless Steel |
| SU6-6 | 3" x 3" | Mild Steel |
| SU6-6SS | 3" x 3" | T409 Stainless Steel |

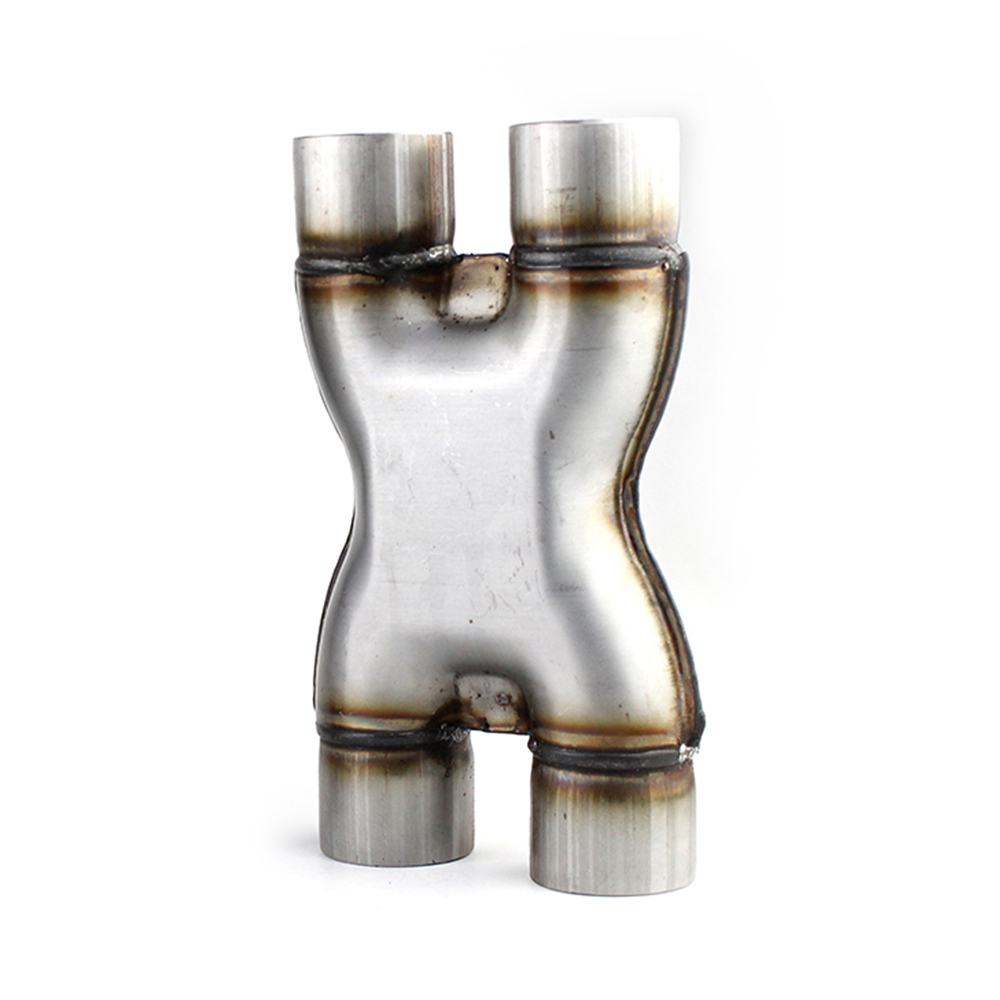

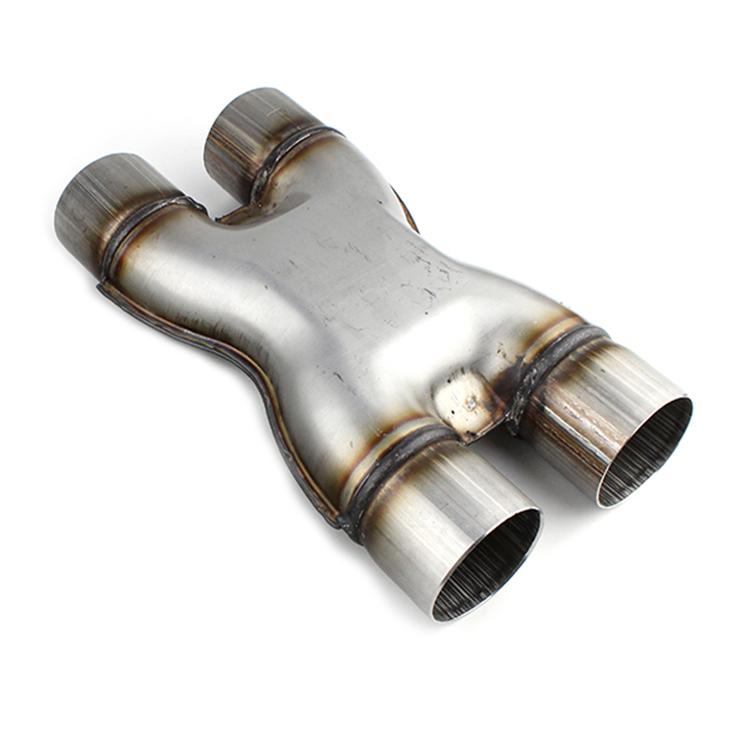

Stamped Steel X-Pipe Dual to Dual Pipe Connectors |
|
| PART # | Pipe ID Dual / Dual | Material |
| SXP2SS 2" | 2" | T409 Stainless Steel |
| SXP3 2 1/4" | 2 1/4" | Mild Steel |
| SXP3SS | 2 1/4" | T409 Stainless Steel |
| SXP4 | 2 1/2" | Mild Steel |
| SXP4SS | 2 1/2" | T409 Stainless Steel |
| SXP6 | 3" | Mild Steel |
| SXP6SS | 3" | T409 Stainless Steel |
Application:
Automotive Exhaust System (Performance Modification)
Flow regulation of automobile EGR exhaust gas recirculation pipeline;
Industrial exhaust gas multi probe sampling (exhaust gas detection Y-shaped tube).
Chemical diversion: 316L material Y-shaped three-way distribution for corrosive media (such as acid and alkali waste gas)
Energy sector: symmetrical diversion of cooling systems in thermal power plants;
Notes:Y-Pipe：
Reduce exhaust back pressure and improve turbo lag (response speed of turbocharged models);
Equal length manifold design suitable for engines, balancing cylinder exhaust pulsation.
X-Pipe：
Intersection points form sound wave interference, eliminating harsh sound frequencies;
