V Shape Pipe Pin
PDM
| Availability: | |
|---|---|
| Quantity: | |

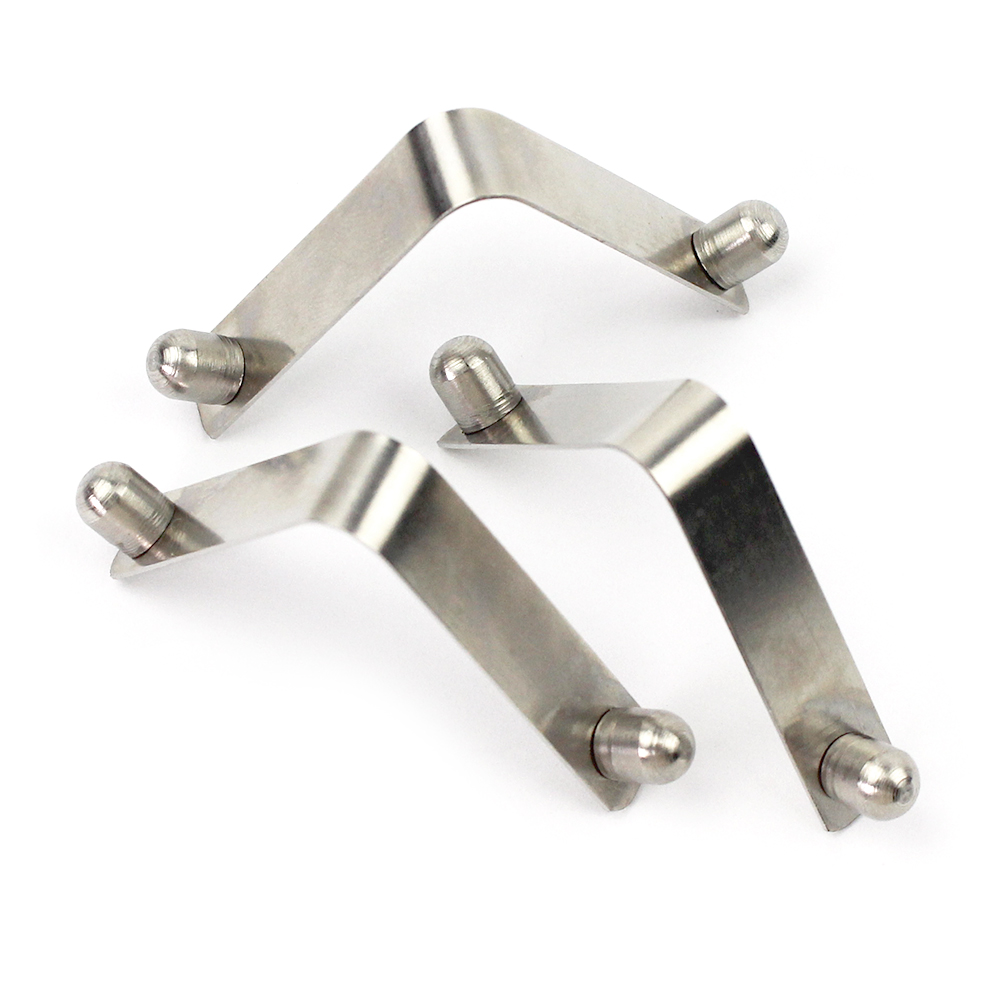

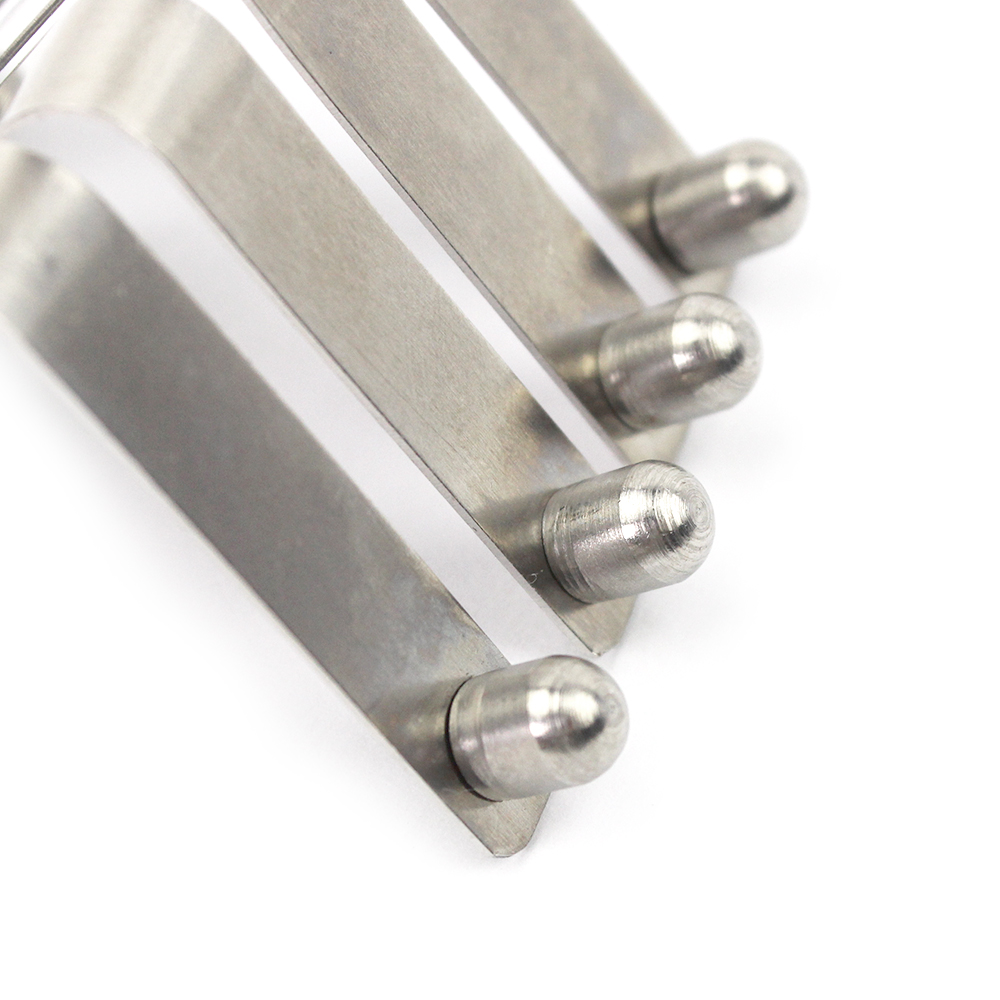

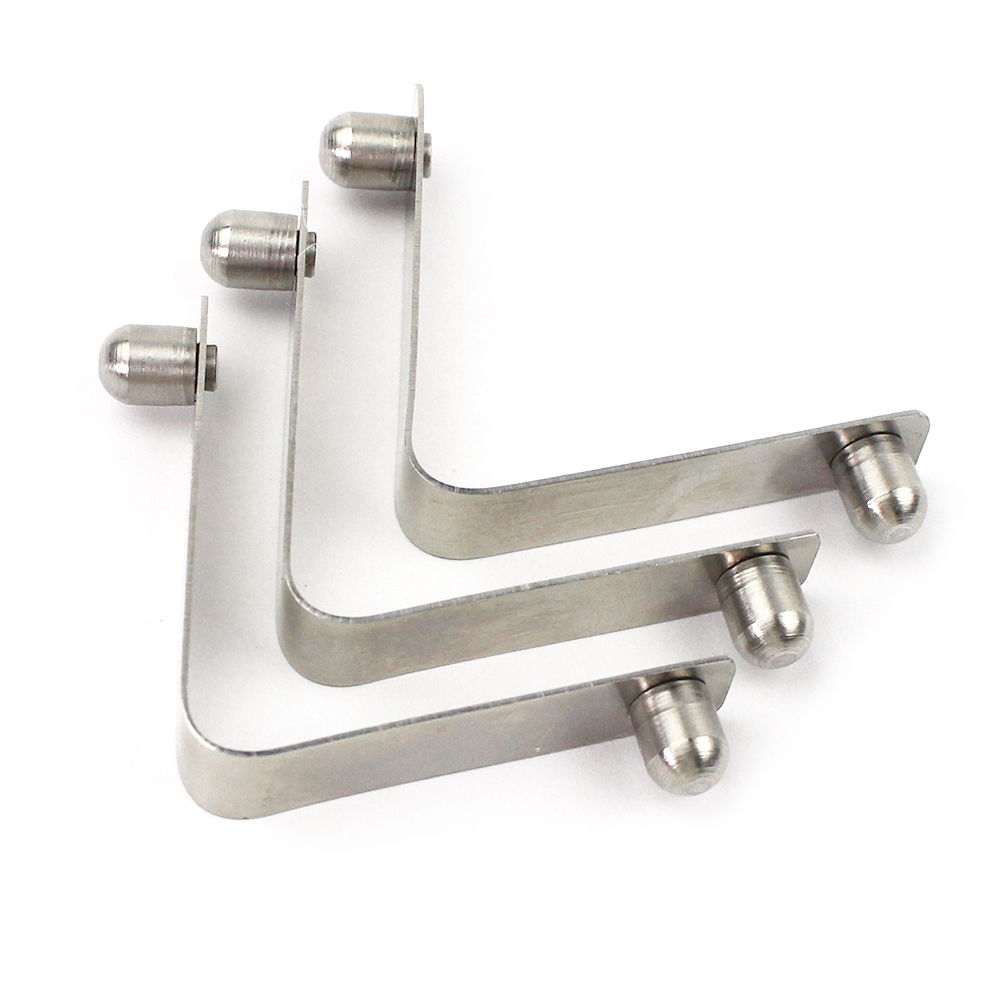

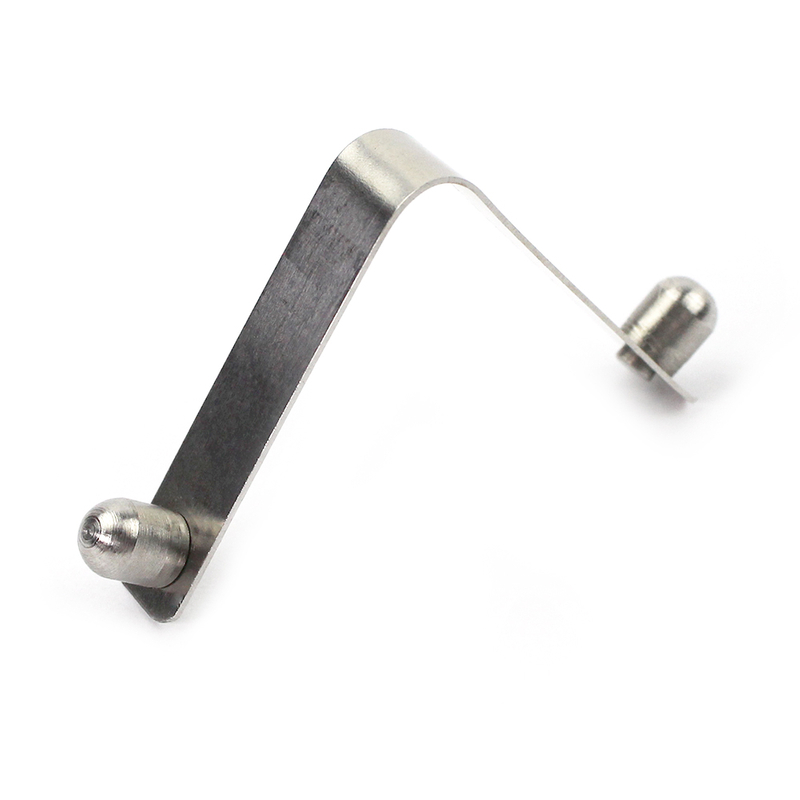

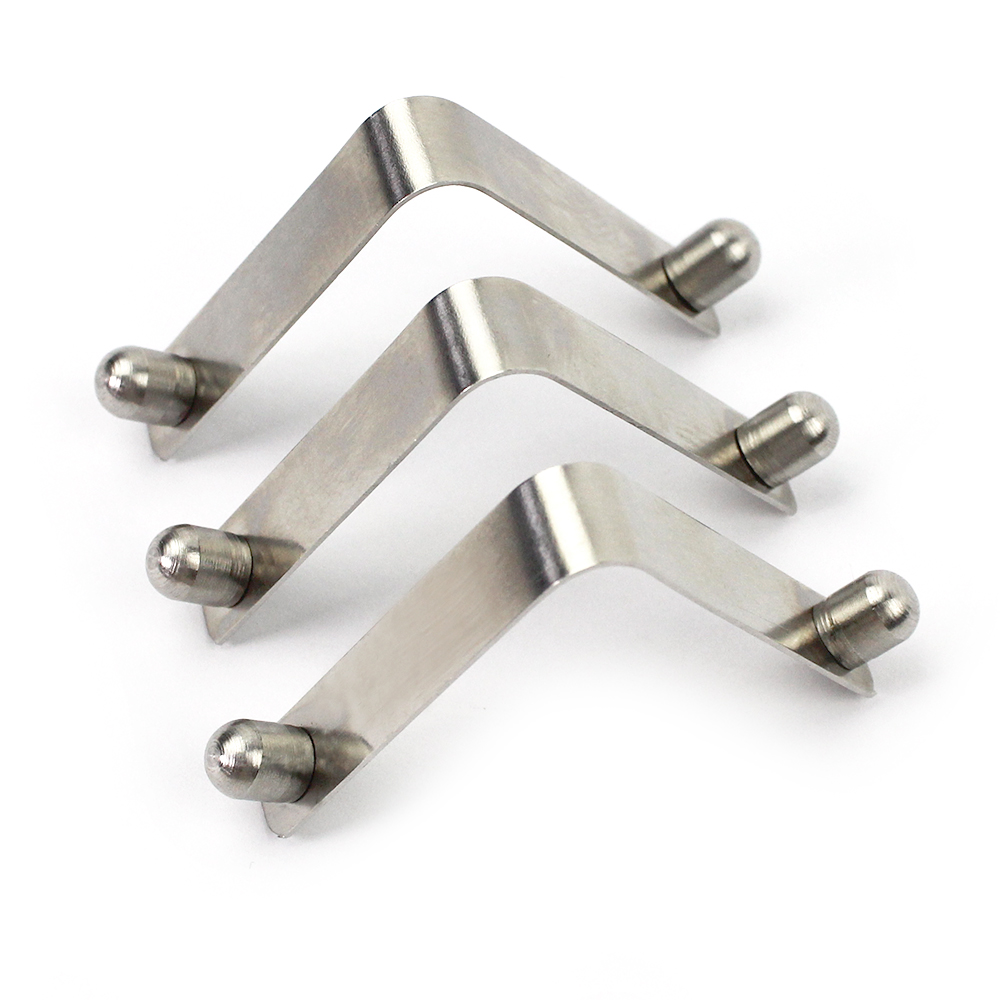

Features of V Shape Spring Pin
Locking Push Button Spring Clips Title:
Spring Steel tent pole spring clip v shape spring clip for Expansion fittings
Button Spring Clips Core functions:
V Shape Spring Pin is a slotted cylindrical elastic pin that forms an elastic structure by cutting V-shaped gaps in the metal tube wall. During installation, continuous tension is generated through radial compression deformation to achieve thread free self-locking fixation.
Core functions:
Quick connection and locking:
Fixing or releasing components through elastic deformation;
High durability:
Suitable for high pressure or vibration environments, such as industrial equipment, automotive components, etc.
V-shaped slotting: Cutting a single or multiple V-shaped gaps along the axial direction to enable the pin body to have radial elastic deformation ability;
Chamfered end: Double or single end design chamfer, easy to press into the installation hole;
Material:Stainelss Steel,Spring Steel,etc
Surface treatment: galvanizing, nickel plating, polishing, etc;
Size: Diameter 4-10mm, thickness 0.4-0.7mm, supports hollow/solid design.

| Single End-Hollow Push Button Spring Clips |
![]() |
| Type | Code | Button Type | Size | Material | |||||
| Button Dia.(D) | Button Height (H) | Clip Width (K) | S | L | Button | Clip | |||
| Single End | SEH05 | Hollow | 5mm | 8.5mm | 6.5mm | 25mm | 30mm | Spring Steel | Spring Steel |
| Single End | SEH55 | Hollow | 5.5mm | 8.5mm | 6.5mm | 31mm | 33mm | Spring Steel | Spring Steel |
| Single End | SEH06 | Hollow | 6mm | 10mm | 8mm | 36mm | 37mm | Spring Steel | Spring Steel |
| Single End | SEH75 | Hollow | 7.5mm | 10.5mm | 10mm | 48mm | 50mm | Spring Steel | Spring Steel |
| Single End | SEH78 | Hollow | 7.8mm | 9.5mm | 11.5mm | 40mm | 40mm | Spring Steel | Spring Steel |
| Single End | SEH08 | Hollow | 8mm | 10mm | 10.8mm | 60mm | 50mm | Spring Steel | Spring Steel |
| Single End | SEH09 | Hollow | 9mm | 12mm | 12.5mm | 70mm | 60mm | Spring Steel | Spring Steel |
| Double End-Hollow Push Button Spring Clips |
![]() |
| Type | Code | Button Type | Size | Material | |||||
| Button Dia.(D) | Button Height (H) | Clip Width (K) | S | L | Button | Clip | |||
| Double End | DEH05 | Hollow | 6mm | 8mm | 8mm | 45mm | 43mm | Steel/SS | Steel/SS |
| Single End-Solid Push Button Spring Clips |
![]() |
| Type | Code | Button Type | Size | Material | |||||
| Button Dia.(D) | Button Height (H) | Clip Width (K) | S | L | Button | Clip | |||
| Single End | SES03 | Solid | 3mm | 3.5mm | 4mm | 16mm | 15mm | Steel/SS | Steel/SS |
| Single End | SES05 | Solid | 5mm | 10mm | 6.5mm | 43mm | 41mm | Steel/SS | Steel/SS |
| Single End | SES55 | Solid | 5.5mm | 7.5mm | 5mm | 23mm | 33mm | Steel/SS | Steel/SS |
| Single End | SES58 | Solid | 5.8mm | 7mm | 8.5mm | 23mm | 25mm | Steel/SS | Steel/SS |
| Single End | SES63 | Solid | 6.3mm | 8mm | 7mm | 45mm | 38mm | Steel/SS | Steel/SS |
| Single End | SES65 | Solid | 6.5mm | 6mm | 10mm | 40mm | 42mm | Steel/SS | Steel/SS |
| Single End | SES07 | Solid | 7mm | 7mm | 8.5mm | 55mm | 47mm | Steel/SS | Steel/SS |
| Single End | SES09 | Solid | 9mm | 11mm | 10mm | 60mm | 45mm | Steel/SS | Steel/SS |
| Double End-Solid Push Button Spring Clips |
![]() |
| Type | Code | Button Type | Size | Material | |||||
| Button Dia.(D) | Button Height (H) | Clip Width (K) | S | L | Button | Clip | |||
| Double End | DUS75 | Solid | 7.5mm | 10mm | 12mm | 62mm | 56mm | Steel/SS | Steel/SS |
Application:
Application: Can be used for pipe fittings connection, furniture assembly, electronic device fixed tent bracket, umbrella bone connection, etc.

Technical features:
Elastic design: The V-shaped structure provides stable elasticity and adapts to different aperture sizes.
Corrosion resistance: Coating treatment (such as nickel plating) extends the service life.
Customization: Supports customization of size, material, and color.
