D Ring Handle Quick Release Ball Lock Pin
PDM
| Quantity: | |
|---|---|

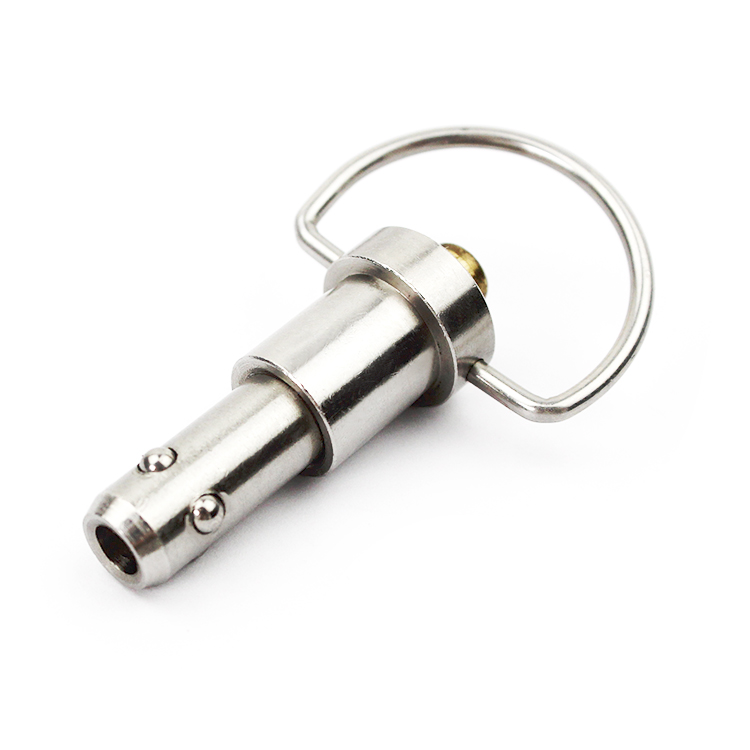

Features of D Ring Handle Quick Release Ball Lock Pin
Release Ball Lock Pins Title:
Stainless Steel Ball Lock Pins Quick Release Ball Lock Pin
Quick Release Ball Lock Pin Core components:
D Ring Handle: refers to a D-shaped circular handle design that optimizes grip comfort and tension transmission efficiency, commonly used in one handed operation or glove wearing scenarios;
Quick Release Ball Pin: The core is the Ball Lock Pin, which has a built-in spring and locking steel ball. After pressing the button, the steel ball retracts to achieve quick insertion or extraction of the pin;
Material: The main body is made of 304/316 stainless steel (with strong anti-corrosion properties) or galvanized steel (economical type), and the D-ring handle is reinforced for durability;
Standard diameter range: 3/16 ", 1/4", 5/16 ", 1/2", supports non-standard customization;
Surface treatment: electroplating or passivation process (such as nickel plating) to enhance corrosion resistance;
Shank Material:Stainless Steel,Heat treated;
Handle Material:Aluminium,Black,Red,Purple,or Custom Colors Anodized Finish
Handle Style:D Ring Handle Type
Button Material:Brass or Aluminium,Black,Red,Purple,or Other Colors Anodized Finish,according to your request.
Ball Material:Stainless Steel AISI 440C
Grip Length:10mm-150mm or Customized
Pin Dia.: (Metric & Inch)
Please refer to the specification table below for details
| Metric - D Ring Handle Quick Release Ball Lock Pin |
 |
| NominalDia. | d3 | d2 | I1 | D | d4 | F | I4 | I3 | |
| Min. | Max. | +/-0.25 | +0.0/-1.0 | ||||||
| 5 | 4.92 | 4.96 | 5.54 | 6 | 6.5 | 10.8 | 28.0 | 34.1 | 20.8 |
| 6 | 5.92 | 5.96 | 6.99 | 7 | 6.5 | 10.8 | 28.0 | 34.1 | 20.8 |
| 8 | 7.92 | 7.96 | 9.42 | 8 | 6.5 | 10.8 | 28.0 | 34.1 | 21.8 |
| 10 | 9.92 | 9.96 | 11.86 | 9 | 7.7 | 14.2 | 28.0 | 38.0 | 25.2 |
| 12 | 11.92 | 11.96 | 14.45 | 10 | 11.2 | 17.2 | 35.2 | 47.2 | 30.5 |
| 16 | 15.92 | 15.96 | 19 | 14 | 12.4 | 23.9 | 41.9 | 61.6 | 42.6 |
| 20 | 19.92 | 19.96 | 24.08 | 17 | 14.6 | 23.9 | 41.9 | 61.6 | 46.4 |
| 25 | 24.92 | 24.96 | 30.94 | 22 | 19.2 | 30.0 | 45.0 | 72.4 | 54.0 |
| Inch - D Ring Handle Quick Release Ball Lock Pin |
|
| Dia.d1 | d2 | I1 | D | d4 | F | I4 | I3 |
| 3/16 | 0.22 | 0.26 | 0.25 | 0.31 | 1.06 | 1.45 | 0.73 |
| 1/4 | 0.289 | 0.29 | 0.25 | 0.31 | 1.06 | 1.5 | 0.78 |
| 5/16 | 0.375 | 0.33 | 0.25 | 0.41 | 1.06 | 1.65 | 0.83 |
| 3/8 | 0.44 | 0.365 | 0.3 | 0.45 | 1.06 | 1.65 | 0.94 |
| 7/16 | 0.509 | 0.38 | 0.3 | 0.55 | 1.09 | 1.85 | 0.98 |
| 1/2 | 0.594 | 0.46 | 0.435 | 0.6 | 1.16 | 1.85 | 1.14 |
| 9/16 | 0.666 | 0.51 | 0.435 | 0.68 | 1.16 | 2.03 | 1.14 |
| 5/8 | 0.75 | 0.58 | 0.45 | 0.75 | 1.24 | 2.25 | 1.40 |
| 3/4 | 0.887 | 0.67 | 0.57 | 0.865 | 1.64 | 2.65 | 1.625 |
| 7/8 | 1.046 | 0.76 | 0.7 | 0.98 | 1.64 | 3.00 | 1.875 |
| 1 | 1.209 | 0.89 | 0.75 | 1.175 | 1.64 | 3.10 | 2.00 |
Application:
Industrial equipment: Modular position switching of mold fixtures, D-ring handle for frequent adjustment;
Outdoor machinery: fixing of maintenance panels for construction vehicles or sound arrays;
Automation system: quick change interface for robotic arm end tools;
Operation process:
Press the button → the steel ball is retracted into the pin body (unlocked state);
Insert/Remove → Align the pin with the mounting hole and move freely;
Release button → The spring pushes the steel ball to pop out and lock it into the positioning hole.
Functional advantages:
To avoid accidental release: In the locked state, the button needs to be forcefully pressed to unlock;
Customized options reference
Handle type: customizable all stainless steel D-ring or integrated webbing buckle (for safety rope connection);
Function expansion: Optional double acting spring for quick release in both directions;
Features of D Ring Handle Quick Release Ball Lock Pin
Release Ball Lock Pins Title:
Stainless Steel Ball Lock Pins Quick Release Ball Lock Pin
Quick Release Ball Lock Pin Core components:
D Ring Handle: refers to a D-shaped circular handle design that optimizes grip comfort and tension transmission efficiency, commonly used in one handed operation or glove wearing scenarios;
Quick Release Ball Pin: The core is the Ball Lock Pin, which has a built-in spring and locking steel ball. After pressing the button, the steel ball retracts to achieve quick insertion or extraction of the pin;
Material: The main body is made of 304/316 stainless steel (with strong anti-corrosion properties) or galvanized steel (economical type), and the D-ring handle is reinforced for durability;
Standard diameter range: 3/16 ", 1/4", 5/16 ", 1/2", supports non-standard customization;
Surface treatment: electroplating or passivation process (such as nickel plating) to enhance corrosion resistance;
Shank Material:Stainless Steel,Heat treated;
Handle Material:Aluminium,Black,Red,Purple,or Custom Colors Anodized Finish
Handle Style:D Ring Handle Type
Button Material:Brass or Aluminium,Black,Red,Purple,or Other Colors Anodized Finish,according to your request.
Ball Material:Stainless Steel AISI 440C
Grip Length:10mm-150mm or Customized
Pin Dia.: (Metric & Inch)
Please refer to the specification table below for details
| Metric - D Ring Handle Quick Release Ball Lock Pin |
|
| NominalDia. | d3 | d2 | I1 | D | d4 | F | I4 | I3 | |
| Min. | Max. | +/-0.25 | +0.0/-1.0 | ||||||
| 5 | 4.92 | 4.96 | 5.54 | 6 | 6.5 | 10.8 | 28.0 | 34.1 | 20.8 |
| 6 | 5.92 | 5.96 | 6.99 | 7 | 6.5 | 10.8 | 28.0 | 34.1 | 20.8 |
| 8 | 7.92 | 7.96 | 9.42 | 8 | 6.5 | 10.8 | 28.0 | 34.1 | 21.8 |
| 10 | 9.92 | 9.96 | 11.86 | 9 | 7.7 | 14.2 | 28.0 | 38.0 | 25.2 |
| 12 | 11.92 | 11.96 | 14.45 | 10 | 11.2 | 17.2 | 35.2 | 47.2 | 30.5 |
| 16 | 15.92 | 15.96 | 19 | 14 | 12.4 | 23.9 | 41.9 | 61.6 | 42.6 |
| 20 | 19.92 | 19.96 | 24.08 | 17 | 14.6 | 23.9 | 41.9 | 61.6 | 46.4 |
| 25 | 24.92 | 24.96 | 30.94 | 22 | 19.2 | 30.0 | 45.0 | 72.4 | 54.0 |
| Inch - D Ring Handle Quick Release Ball Lock Pin |
|
| Dia.d1 | d2 | I1 | D | d4 | F | I4 | I3 |
| 3/16 | 0.22 | 0.26 | 0.25 | 0.31 | 1.06 | 1.45 | 0.73 |
| 1/4 | 0.289 | 0.29 | 0.25 | 0.31 | 1.06 | 1.5 | 0.78 |
| 5/16 | 0.375 | 0.33 | 0.25 | 0.41 | 1.06 | 1.65 | 0.83 |
| 3/8 | 0.44 | 0.365 | 0.3 | 0.45 | 1.06 | 1.65 | 0.94 |
| 7/16 | 0.509 | 0.38 | 0.3 | 0.55 | 1.09 | 1.85 | 0.98 |
| 1/2 | 0.594 | 0.46 | 0.435 | 0.6 | 1.16 | 1.85 | 1.14 |
| 9/16 | 0.666 | 0.51 | 0.435 | 0.68 | 1.16 | 2.03 | 1.14 |
| 5/8 | 0.75 | 0.58 | 0.45 | 0.75 | 1.24 | 2.25 | 1.40 |
| 3/4 | 0.887 | 0.67 | 0.57 | 0.865 | 1.64 | 2.65 | 1.625 |
| 7/8 | 1.046 | 0.76 | 0.7 | 0.98 | 1.64 | 3.00 | 1.875 |
| 1 | 1.209 | 0.89 | 0.75 | 1.175 | 1.64 | 3.10 | 2.00 |
Application:
Industrial equipment: Modular position switching of mold fixtures, D-ring handle for frequent adjustment;
Outdoor machinery: fixing of maintenance panels for construction vehicles or sound arrays;
Automation system: quick change interface for robotic arm end tools;
Operation process:
Press the button → the steel ball is retracted into the pin body (unlocked state);
Insert/Remove → Align the pin with the mounting hole and move freely;
Release button → The spring pushes the steel ball to pop out and lock it into the positioning hole.
Functional advantages:
To avoid accidental release: In the locked state, the button needs to be forcefully pressed to unlock;
Customized options reference
Handle type: customizable all stainless steel D-ring or integrated webbing buckle (for safety rope connection);
Function expansion: Optional double acting spring for quick release in both directions;
