L Handle Quick Release Ball Lock Pin

The L-shaped handle quick release ball locking pin can achieve steel ball expansion and contraction by pressing the button, completing quick locking/release, and can be repeatedly disassembled without the need for auxiliary tools;

Model:
L Handle Quick Release Ball Lock Pin
Brand:
PDM

Quantity:
Availability:





Inquire Add to Basket

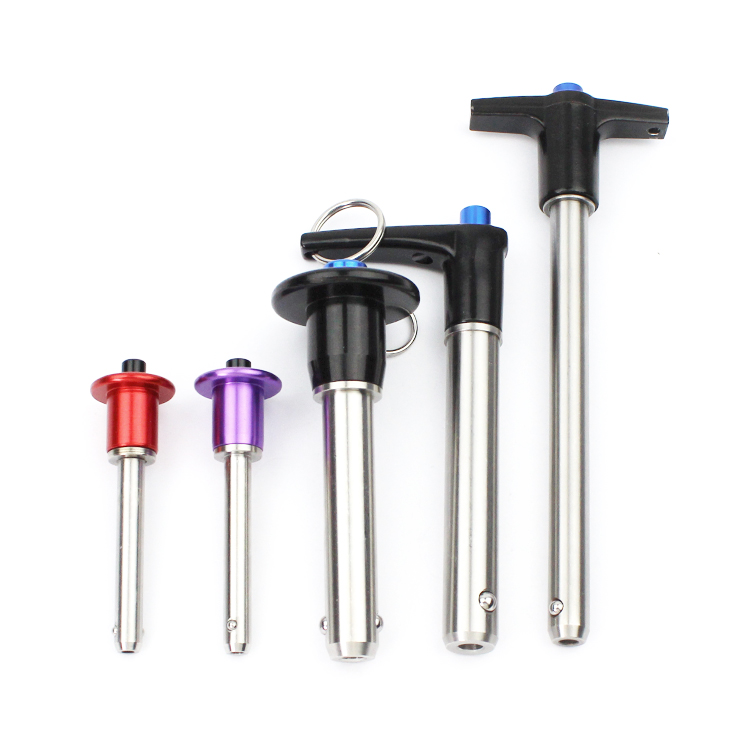

Product Description

Features of L Handle Quick Release Ball Lock Pin

Release Ball Lock Pins Title:

Stainless Steel Ball Lock Pins Quick Release Ball Lock Pin

Quick Release Ball Lock Pin Core components:

Structural composition:

L-shaped handle: a 90 ° bent operating lever that provides lever torque, making it easy to apply force with one hand;

Button mechanism: After pressing, it drives the internal push rod to control the contraction of the steel ball;

Locking steel ball: stainless steel quenched steel ball, unlocked when retracted, and inserted into the positioning hole when ejected;

Shank Material:Stainless Steel,Heat treated;

Handle Material:Aluminium,Black,Red,Purple,or Custom Colors Anodized Finish

Handle Style:L Handle Type

Button Material:Brass or Aluminium,Black,Red,Purple,or Other Colors Anodized Finish,according to your request.

Ball Material:Stainless Steel AISI 440C

Grip Length:10mm-150mm or Customized

Pin Dia.: (Metric & Inch)

Please refer to the specification table below for details

L-Handle-Quick-Release-Ball-Lock-Pin-01

Metric - L Handle Quick Release Ball Lock Pin

NominalDia.	d2		d1	I1	D	d3	L	I2	I3
NominalDia.	Min.	Max.	+/-.25	+0.01-1	D	d3	L	I2	I3
5	4.92	4.96	5.54	6	6.5	13.1	44.9	31.3	19.7
6	5.92	5.96	6.99	7	6.5	13.1	44.9	31.3	19.7
8	7.92	7.96	9.42	8	6.5	13.1	44.9	31.3	19.7
10	9.92	9.96	11.86	9	7.7	15.1	50.8	36.1	24.0
12	11.92	11.96	14.45	10	11.1	19.1	57.2	41.9	25.8
16	15.92	15.96	19	14	14.5	23.9	63.0	49.8	30.1
20	19.92	19.96	24.08	17	26.2	23.9	63.0	49.8	30.1
25	24.92	24.96	30.94	22	26.2	32.4	82.6	55.9	33.9

Inch - L Handle Quick Release Ball Lock Pin

NominalDia.	d2		d1	I1	I2	d3	I3	D	L
NominalDia.	Min.	Max.	+/-.005	+0.0000-	I2	d3	I3	D	L
3/16	0.1870	0.1885	0.22	0.26	1.25	0.50	0.75	0.25	1.75
1/4	0.2470	0.2485	0.29	0.29	1.25	0.50	0.75	0.25	1.75
5/16	0.3095	0.3110	0.38	0.33	1.25	0.50	0.75	0.25	1.75
3/8	0.3720	0.3735	0.44	0.37	1.44	0.59	0.94	0.31	2.00
7/16	0.4345	0.4360	0.51	0.38	1.44	0.59	0.94	0.31	2.00
1/2	0.4970	0.4985	0.59	0.46	1.63	0.75	1.00	0.47	2.25
9/16	0.5595	0.5610	0.67	0.51	1.63	0.75	1.00	0.47	2.25
5/8	0.6220	0.6235	0.75	0.58	1.97	0.94	1.19	0.56	2.50
3/4	0.7470	0.7485	0.89	0.67	1.97	0.94	1.19	0.63	2.50
7/8	0.8720	0.8735	1.05	0.76	2.25	1.25	1.34	0.75	3.25
1	0.9970	0.9985	1.21	0.89	2.25	1.25	1.34	0.75	3.25

Application:

Industrial equipment: rapid mold change, quick tool change at the end of the robotic arm;

Transportation: fixing of railway vehicle maintenance panels, locking of aviation equipment cabin doors;

Medical fitness: disassembly of medical equipment modules, adjustment plugs for fitness equipment;

L-Handle-Quick-Release-Ball-Lock-Pin-02

Installation steps:

Positioning installation hole

Insert the locking pin body

Hold the L-shaped handle and insert the ball plunger vertically into the positioning hole;

Press the handle to the bottom (triggering the internal spring to retract the ball head);

Lock confirmation

Release the handle and hear a "click" sound to indicate that the ball head has popped out and completed mechanical locking;

Key operation: Keep the locking pin aligned with the axis of the installation hole throughout the process to avoid tilting installation and causing wear on the ball head;

Dismantling process

Unlocking mechanism:

Press the L-shaped handle firmly to the bottom (to retract the ball head into the locking slot);

Pull out the locking pin: Maintain the pressed state and pull out the locking pin vertically and uniformly outward;

Reset check: check the flexibility of the ball head's extension and contraction;
