Quick Release Detent Pin
PDM
| Quantity: | |
|---|---|
Features of Detent Ball Pin
Release Ball Lock Pins Title:

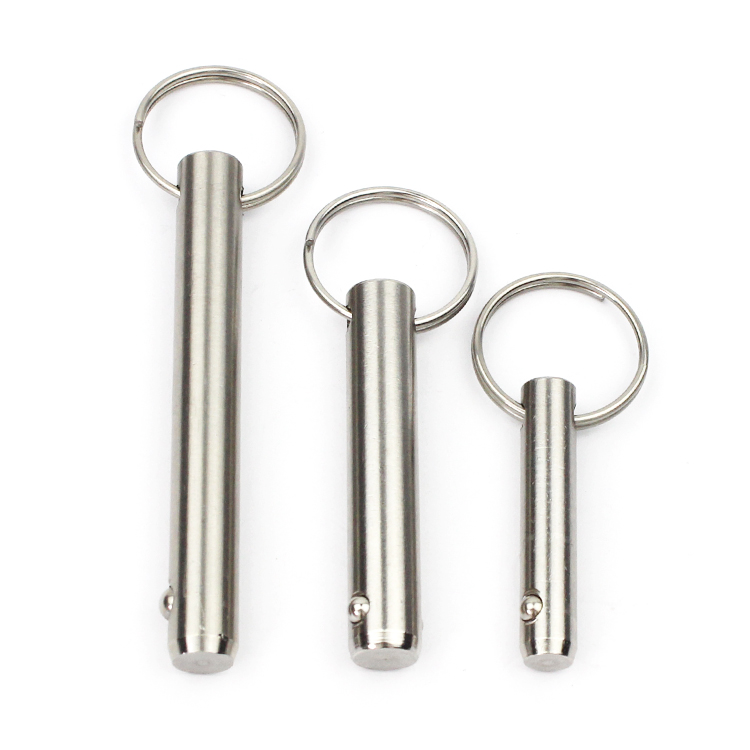

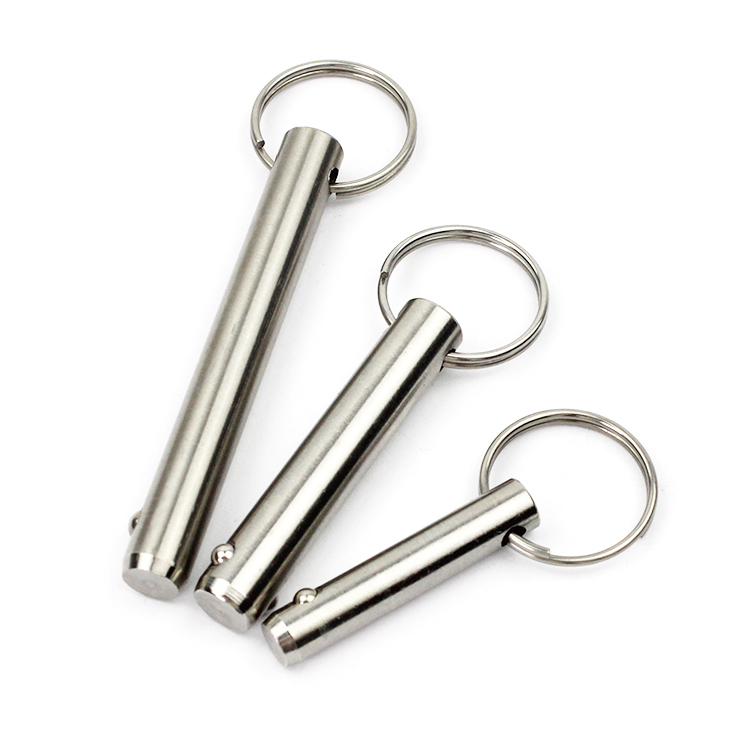

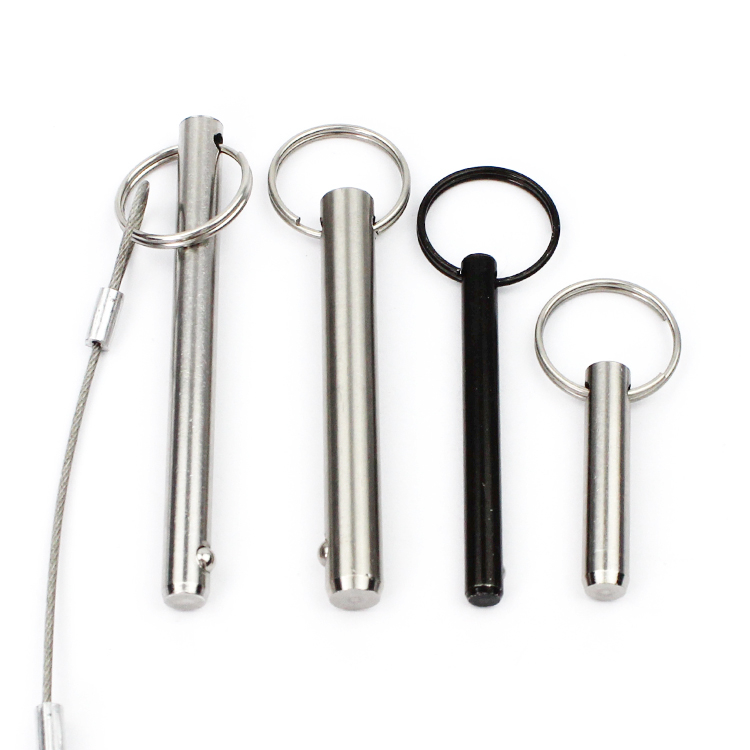

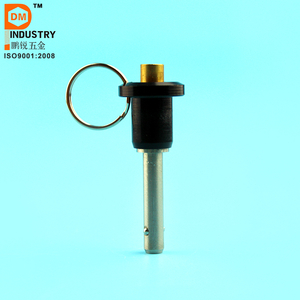

Stainless Steel Ball Lock Pins Quick Release Detent Pin
Deterrent Pin, also known as positioning pin or braking pin; A type of locking device pin that restricts the movement of components through mechanical fitting, achieving precise positioning or one-way stopping. The typical structure includes spring-loaded steel balls/locking pins;
Product specifications and technical parameters:

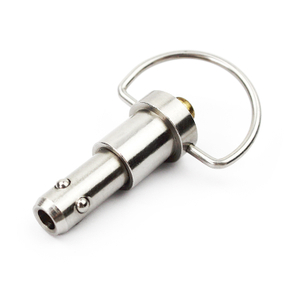

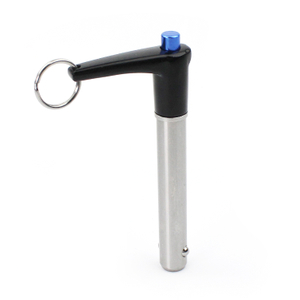

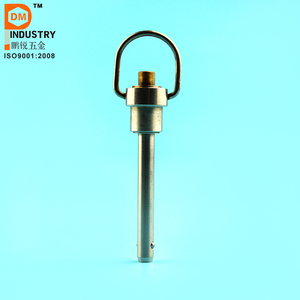

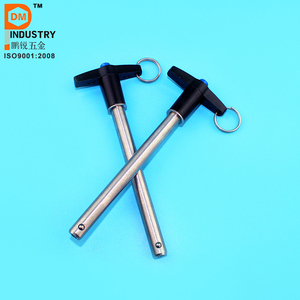

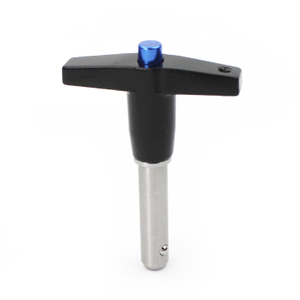

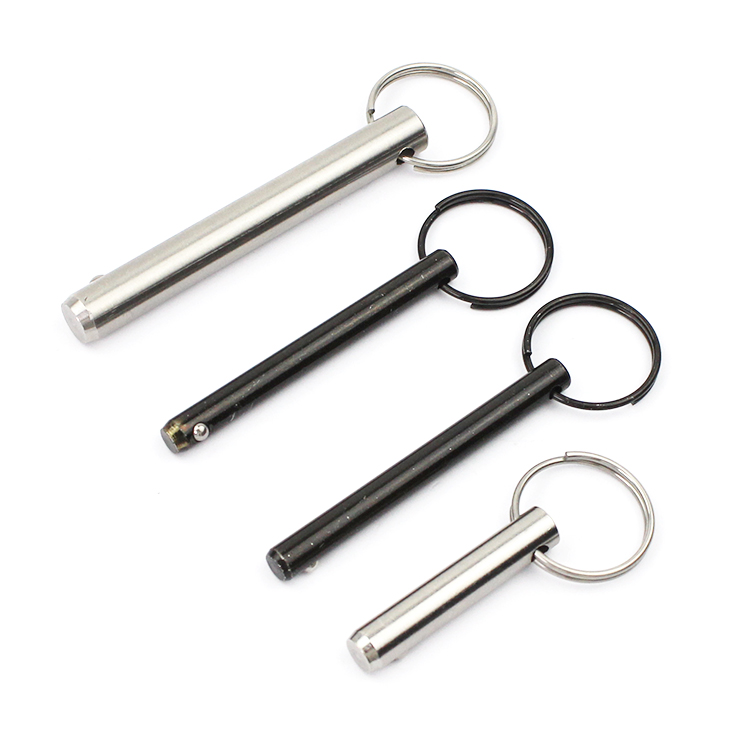

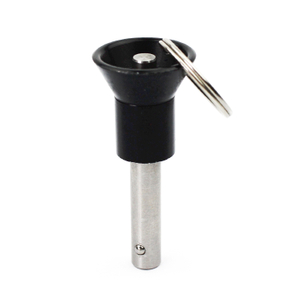

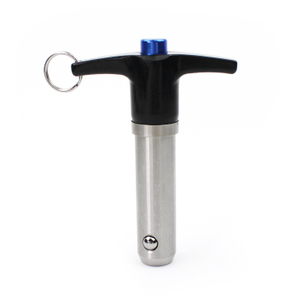

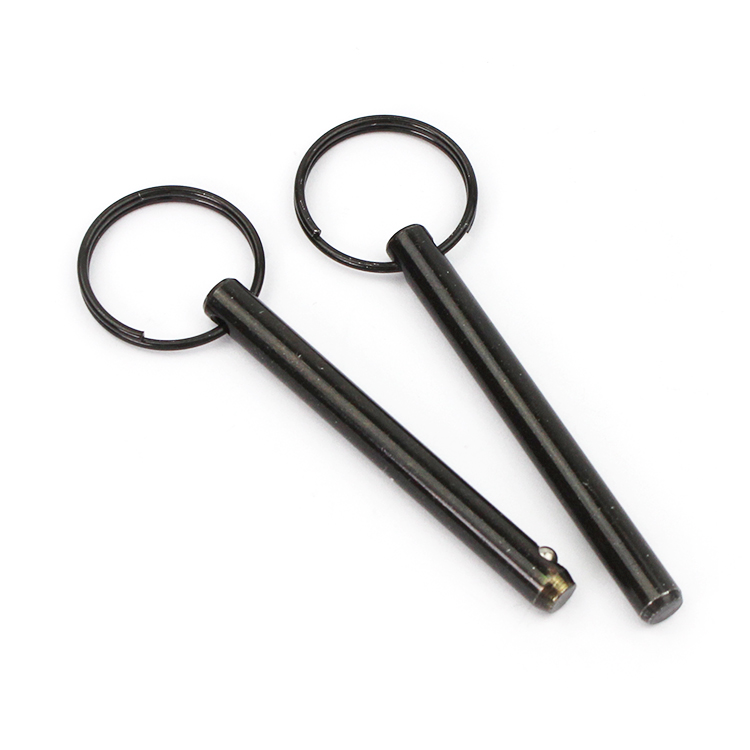

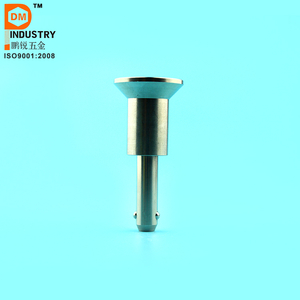

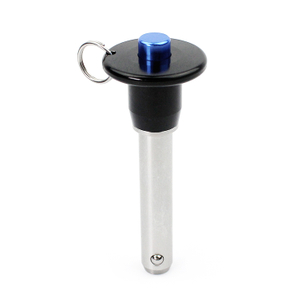

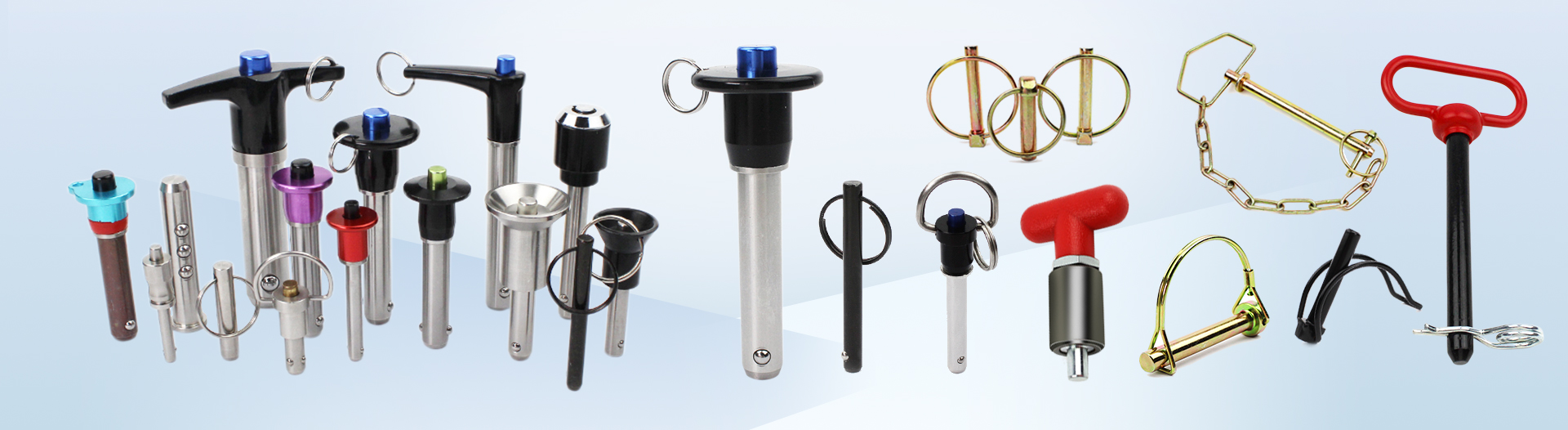

Structure type: single steel ball/double steel ball locking, L-shaped/T-shaped/Ring handle;
Material: Pin body: 303 stainless steel (corrosion-resistant)
Steel ball: 440C stainless steel (high hardness)
Dia.Range:3mm-20mm or As Your Request.
Grip Length:10-150mm or Customizable
Finnish: phosphating coating (rust proof), galvanized stainless steel, Black Oxide,etc
Shank Material:Stainless Steel,Heat treated;
Pin Dia.: (Metric & Inch)

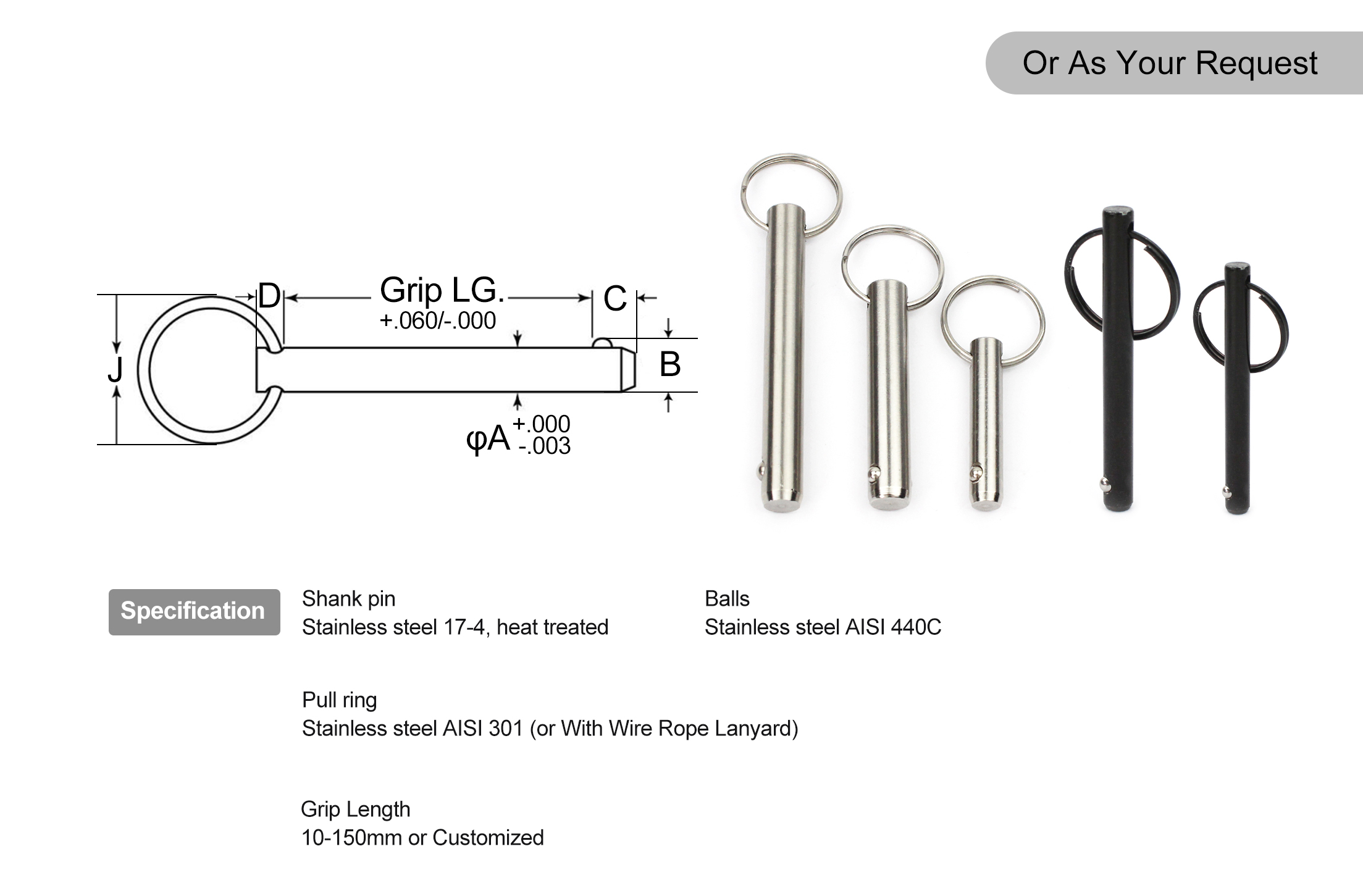

Please refer to the specification table below for details
| Metric - Detent Pin |
 |
| φA | Grip LG. | B | C |
| 3 | 10 15 20 25 30 35 40 45 50 55 60 | 3.5 | 5 |
| 4 | 10 15 20 25 30 35 40 45 50 55 60 | 4.5 | 5.6 |
| 5 | 10 15 20 25 30 35 40 45 50 55 60 | 5.5 | 6 |
| 6 | 10 15 20 22 23 25 30 35 40 50 57 60 70 80 90 100 | 7 | 7 |
| 6.35 | 20 30 40 50 | 7 | 7 |
| 8 | 10 15 20 25 30 35 40 45 50 55 60 70 80 90 100 | 9.5 | 8 |
| 9.5 | 20 30 35 40 45 50 | 12 | 9 |
| 10 | 20 25 30 35 40 45 50 55 60 70 80 90 100 | 12 | 9 |
| 12 | 20 25 30 40 50 60 70 80 90 100 | 14.5 | 10 |
| 12.7 | 20 25 30 35 40 45 50 88.9 | 14.5 | 10 |
| 16 | 20 25 30 35 40 45 50 55 60 70 80 90 100 110 120 130 140 150 | 19 | 14 |
| 20 | 25 30 40 50 60 70 80 90 100 110 120 130 140 | 23.8 | 17 |
| Inch - Detent Pin |
|
| φA | B | C | D | J | φHole Max | φHole Min |
| 3/16 | 0.204 | 0.2 | 0.187 | 1.00 | 0.193 | 0.189 |
| 1/4 | 0.286 | 0.312 | 0.22 | 1.00 | 0.255 | 0.251 |
| 5/16 | 0.358 | 0.375 | 0.25 | 1.00 | 0.318 | 0.314 |
| 3/8 | 0.426 | 0.5 | 0.25 | 1.00 | 0.380 | 0.376 |
| 1/2 | 0.57 | 0.625 | 0.25 | 1.25 | 0.506 | 0.501 |
| 5/8 | 0.71 | 0.75 | 0.375 | 1.25 | 0.631 | 0.626 |
| 3/4 | 0.856 | 0.937 | 0.375 | 1.50 | 0.758 | 0.751 |
| 1 | 1.14 | 1.25 | 0.500 | 1.50 | 1.011 | 1.0015 |
Application:
Fixture positioning, mold module switching, safety locking mechanism (fixed with vehicle mounted tools), automation equipment, etc;
Operation logic:
Press the button → retract the steel ball → insert/remove the locating hole of the pin body;
Release button → Steel ball pops out → Lock workpiece position;
