T Handle Quick Release Ball Lock Pin
PDM
| Availability: | |
|---|---|
| Quantity: | |

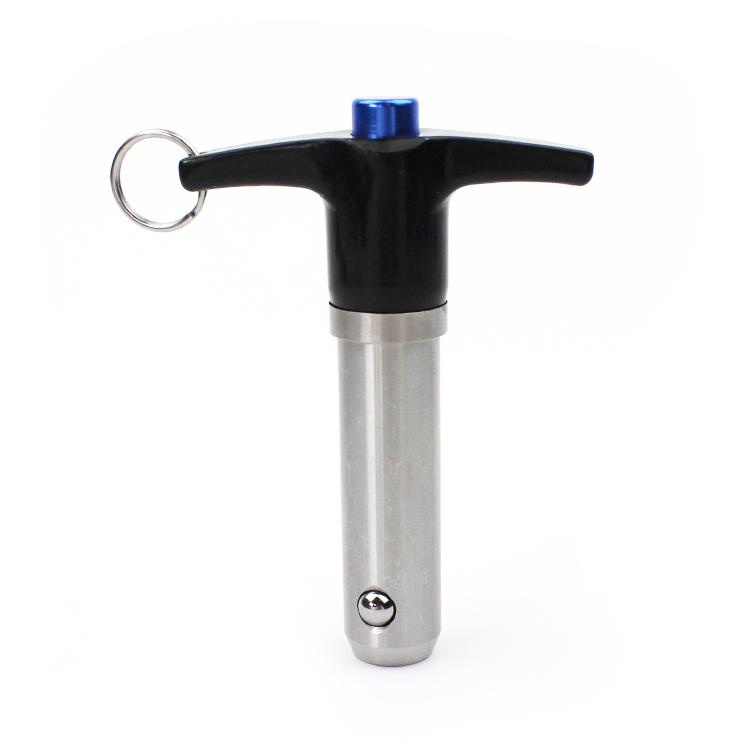

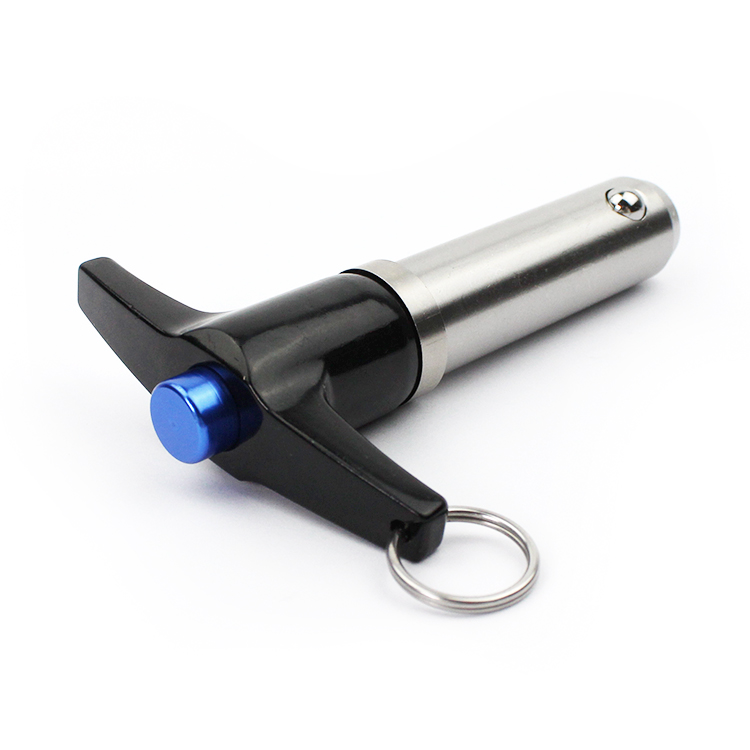

Features of T Handle Quick Release Ball Lock Pin
Release Ball Lock Pins Title:
Stainless Steel Ball Lock Pins Quick Release Ball Lock Pin
Quick Release Ball Lock Pin Core components:
T-Handle: The horizontal grip provides lever torque, allowing for locking/unlocking operations to be completed with one hand;
Ball Lock mechanism:
When the handle is pressed, the internal spring compresses to retract the locking steel ball. After release, the spring pushes the steel ball out and locks it into the workpiece positioning hole to achieve mechanical locking;
Shank Material:Stainless Steel,Heat treated;
Handle Material:Aluminium,Black,Red,Purple,or Custom Colors Anodized Finish
Handle Style:T Handle Type
Button Material:Brass or Aluminium,Black,Red,Purple,or Other Colors Anodized Finish,according to your request.
Ball Material:Stainless Steel AISI 440C
Grip Length:10mm-150mm or Customized
Pin Dia.: (Metric & Inch)
Please refer to the specification table below for details

| Metric - T Handle Quick Release Ball Lock Pin |
![]() |
| NominalDia. | d1 | d2 | I2 | I3 | d4 | I4 | d3 | L | |
| Min. | Max. | +/-.25 | +0.01-1 | ||||||
| 5 | 4.92 | 4.96 | 5.54 | 6 | 32 | 12.5 | 21 | 6.0 | 45 |
| 6 | 5.92 | 5.96 | 6.99 | 7 | 32 | 12.5 | 21 | 6.0 | 45 |
| 8 | 7.92 | 7.96 | 9.42 | 8 | 32 | 12.5 | 21 | 6.0 | 45 |
| 10 | 9.92 | 9.96 | 11.86 | 9 | 37.3 | 15 | 24 | 7.0 | 50.8 |
| 12 | 11.92 | 11.96 | 14.45 | 10 | 37.3 | 15 | 24 | 7.0 | 50.8 |
| 16 | 15.92 | 15.96 | 19 | 14 | 45 | 23.8 | 28.2 | 12.7 | 78.0 |
| 20 | 19.92 | 19.96 | 24.08 | 17 | 45 | 23.8 | 28.2 | 12.7 | 78.0 |
| 25 | 24.92 | 24.96 | 30.94 | 22 | 55.9 | 32 | 33.9 | 19 | 88.9 |
| Inch - T Handle Quick Release Ball Lock Pin |
![]() |
| d1 | d2 | I2 | d3 | d4 | L | I3 | I4 |
| 3/16 | 0.22 | 0.26 | 1/4 | 1/2 | 1-13/16 | 1-1/4 | 3/4 |
| 1/4 | 0.289 | 0.39 | 1/4 | 1/2 | 1-13/16 | 1-1/4 | 3/4 |
| 5/16 | 0.375 | 0.33 | 1/4 | 1/2 | 1-13/16 | 1-1/4 | 3/4 |
| 3/8 | 0.44 | 0.365 | 5/16 | 19/32 | 2 | 1-7/16 | 15/16 |
| 7/16 | 0.509 | 0.38 | 5/16 | 19/32 | 2 | 1-7/16 | 15/16 |
| 1/2 | 0.594 | 0.46 | 15/32 | 3/4 | 2 | 1-5/8 | 1 |
| 9/16 | 0.666 | 0.51 | 15/32 | 3/4 | 2-3/8 | 1-5/8 | 1 |
| 5/8 | 0.75 | 0.58 | 9/16 | 15/16 | 3-1/8 | 1-31/32 | 1-3/16 |
| 3/4 | 0.887 | 0.67 | 5/8 | 15/16 | 3-1/8 | 1-31/32 | 1-3/16 |
| 7/8 | 1.046 | 0.76 | 3/4 | 1-1/4 | 3-1/2 | 2-1/4 | 1-11/32 |
| 1 | 1.209 | 0.89 | 3/4 | 1-1/4 | 3-1/2 | 2-1/4 | 1-11/32 |
Application:
Sound engineering: Modular assembly and locking of line array speakers;
Automated production line: robotic arm end tool quick change system;
Heavy equipment maintenance: quick locking of engineering machinery access doors;

Industrial grade design features:
Surface treatment: stainless steel natural polishing, black oxide/zinc coating;
Single/double steel ball locking to prevent accidental pressing of the buckle;
The Deternt Ring accessory can also be equipped with a wire rope lanyard (sold separately)
