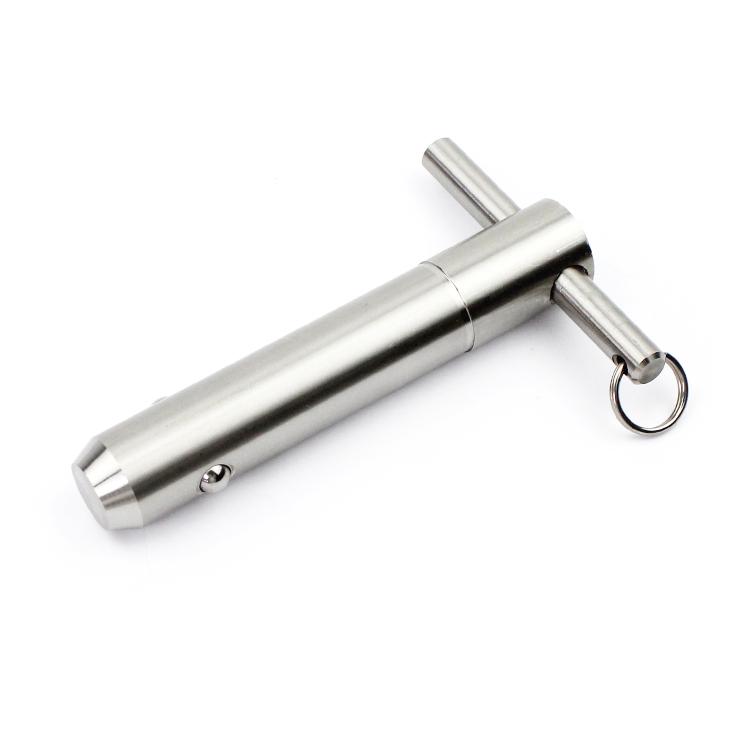

T-handle Quick Release Ball Pin, also known as T-handle quick release ball head pin, is a mechanical component used for quick connection and disassembly, widely used in situations that require frequent assembly and disassembly.
T-handle Locking Quick-Release Pin
PDM
| Quantity: | |
|---|---|
T Handle Ball Locking Pins Specifications:

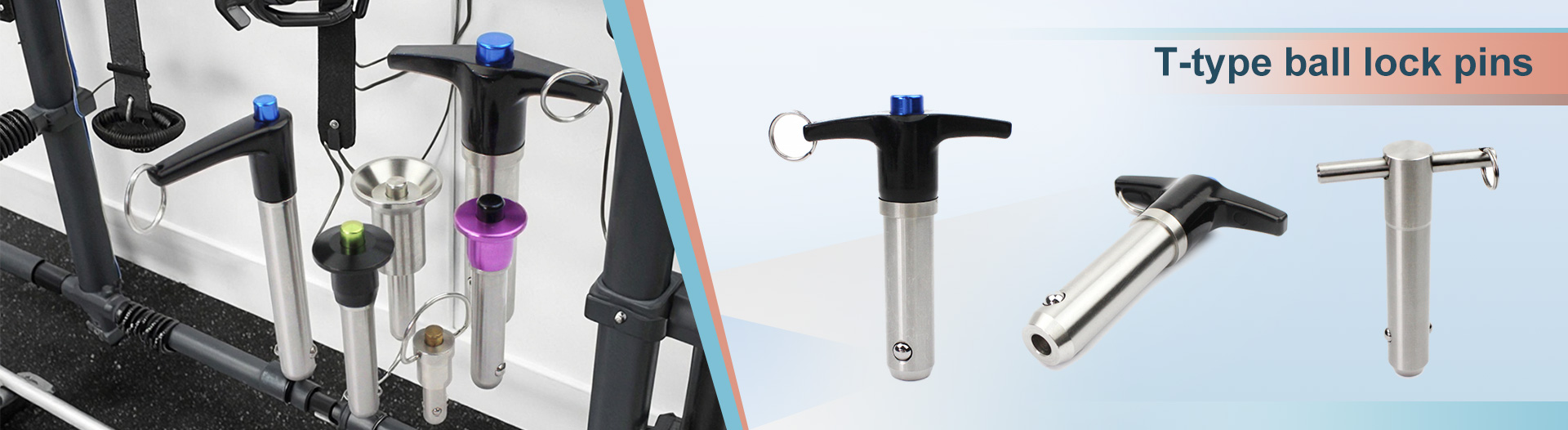

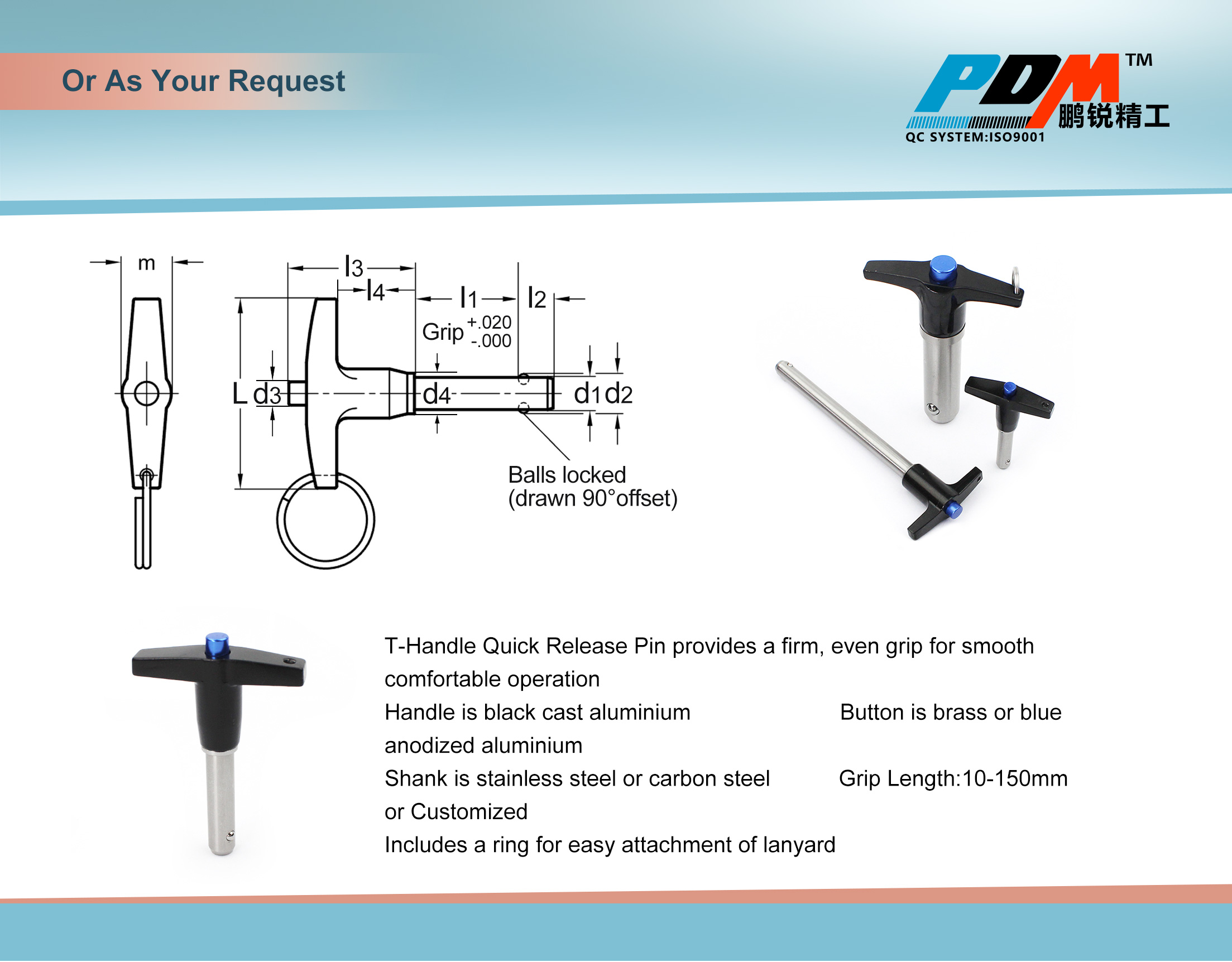

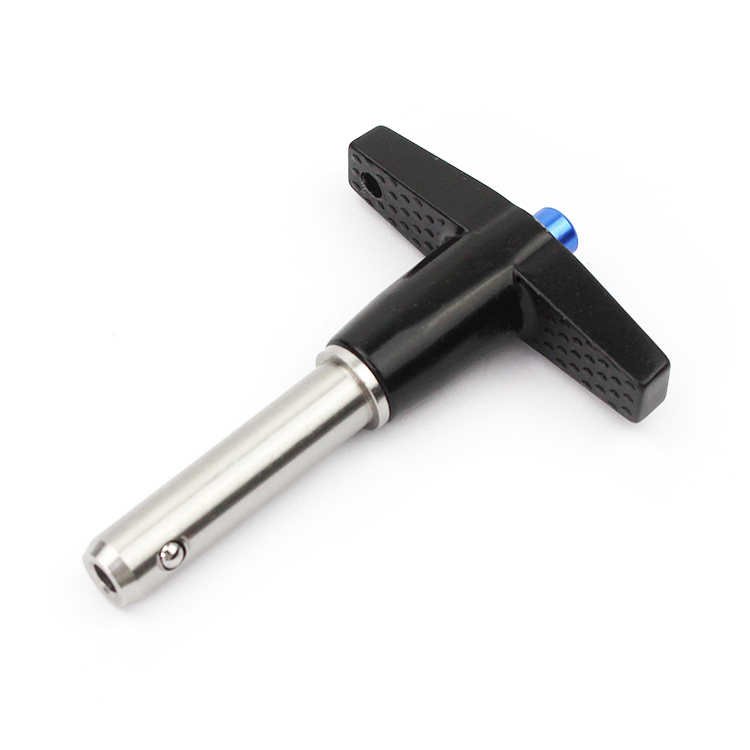

Structure: Usually composed of a T-shaped handle, button, pin body, and ball head. The T-shaped handle is easy to grip and operate, the button is connected to the internal mechanism, the pin body is the main body, and the ball head is located at the end of the pin body.
Working principle: When the button is not pressed, the ball head protrudes, causing the pin to tightly fit with the connecting hole and achieve locking. After pressing the button, the ball head retracts into the pin body, and the pin can be easily inserted or removed from the connection hole to complete the assembly and disassembly operation.
Material and Characteristics
Handle: Generally made of black cast aluminum material, such as PDM products, which have the characteristics of light weight, high strength, and corrosion resistance.
Button: mostly made of blue anodized aluminum material, which is not only beautiful but also enhances wear resistance and corrosion resistance.
Body: Heat treated stainless steel is commonly used, which has high strength, good corrosion resistance, and fatigue resistance, ensuring stable operation in harsh environments.
Specifications and dimensions

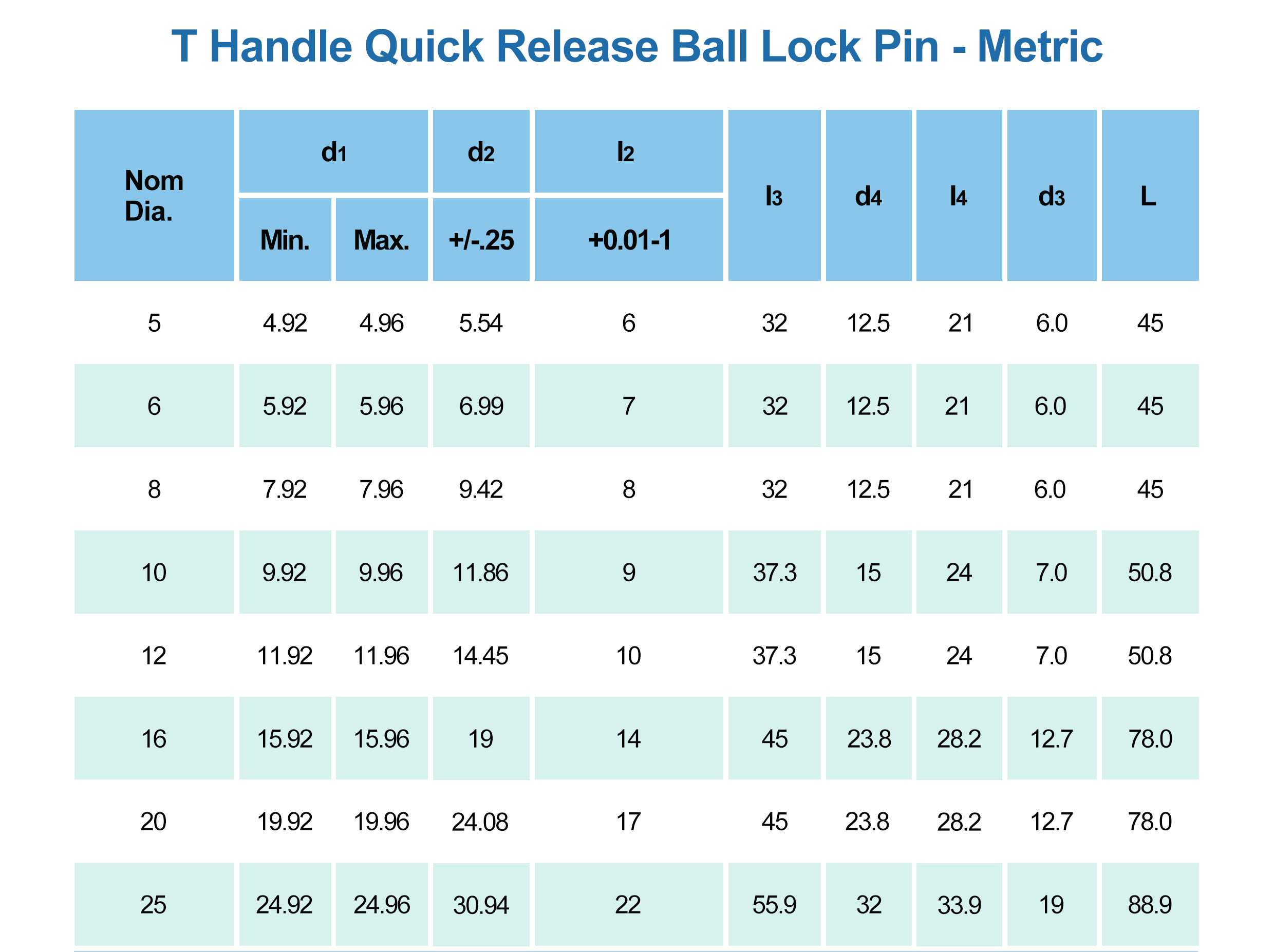

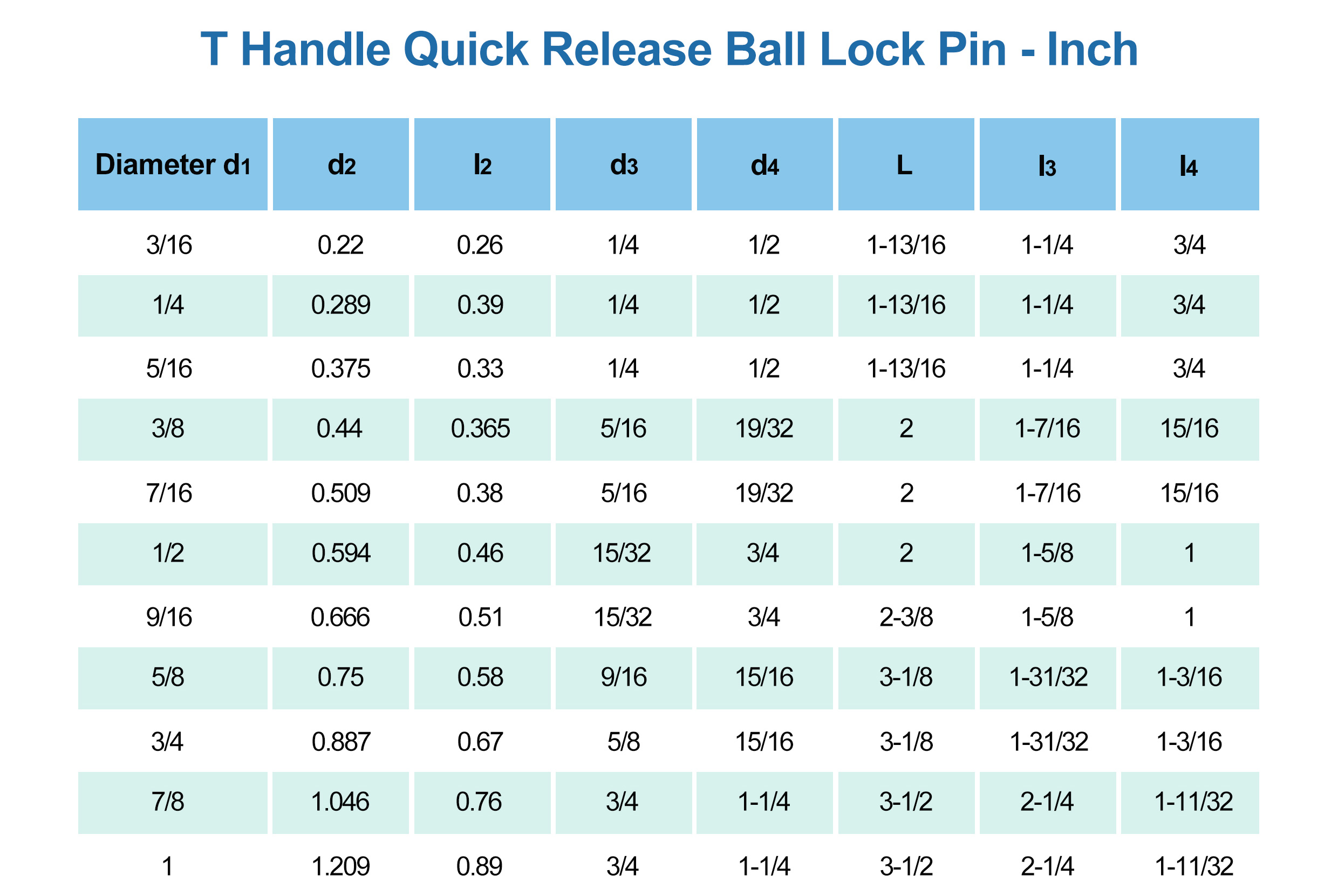

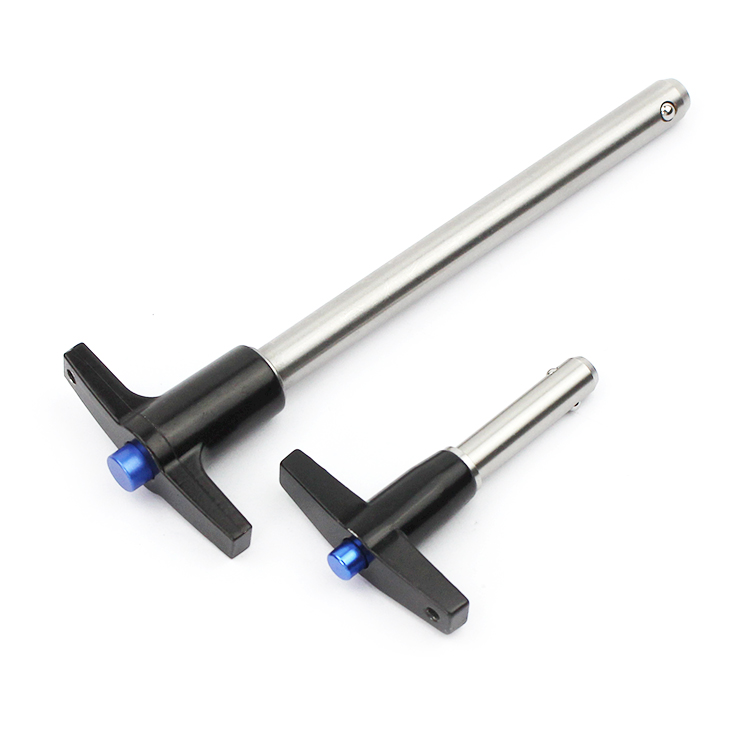

Diameter and effective grip length: Taking PDM products as an example, there are specifications such as 8 * 100mm, 6 * 80mm, 10 * 80mm, and other customized sizes.
Easy to operate: The pin can be quickly loaded and unloaded by pressing the button, without the need for tools, which can greatly improve work efficiency and is suitable for situations that require frequent repeated connections.
Reliable locking: The ball head locking structure can provide strong locking force, ensure the stability of the connection, and prevent the pin from accidentally falling off during use.
Corrosion resistance: Due to the use of stainless steel and anodized aluminum materials, it has good corrosion resistance and can be used in harsh environments.
Application:
Mechanical manufacturing: used for rapid assembly and disassembly of equipment components, such as positioning and connecting fixtures and molds.
Aerospace: Can be used for temporary fixation and rapid assembly of aircraft components, requiring high reliability and corrosion resistance.
Automotive industry: In the process of automobile manufacturing, it is used for body welding fixtures, engine assembly and other links to achieve rapid positioning and connection of components.
Notes:
Optional accessories (wire rope lanyard)
Hanging rope: A hanging rope can be installed on a pin to prevent the pin from being lost, making it easy to carry and use.
Multiple ball heads: Some products can choose a design with multiple ball heads to provide more uniform tension distribution and higher tensile strength.
