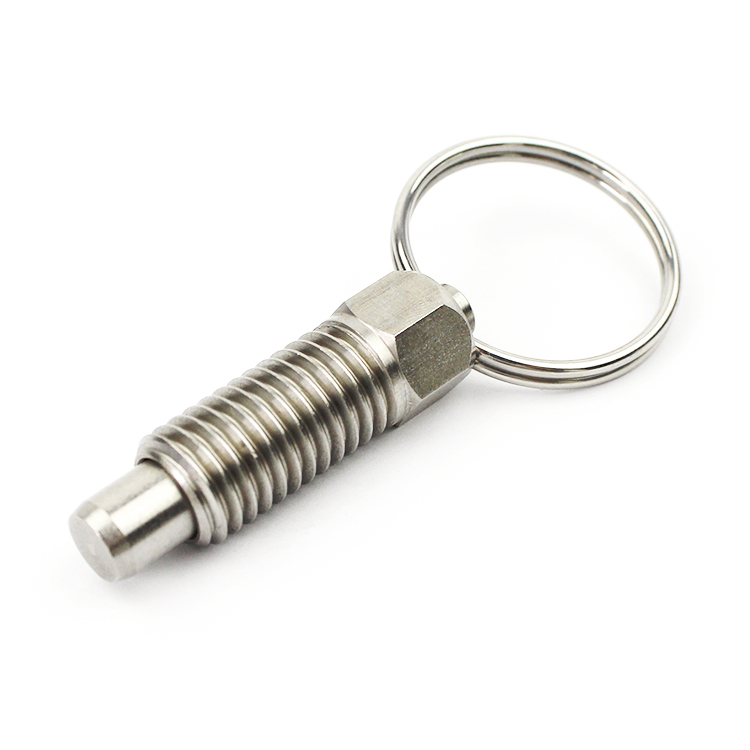

Features of GN717 Indexing Plunger
Retractable Indexing Plunger Title:
High Precise GN717 Indexing Plunger Spring plunger
Pull Ring GN717 Spring Plunger Introduction:
Core Features:

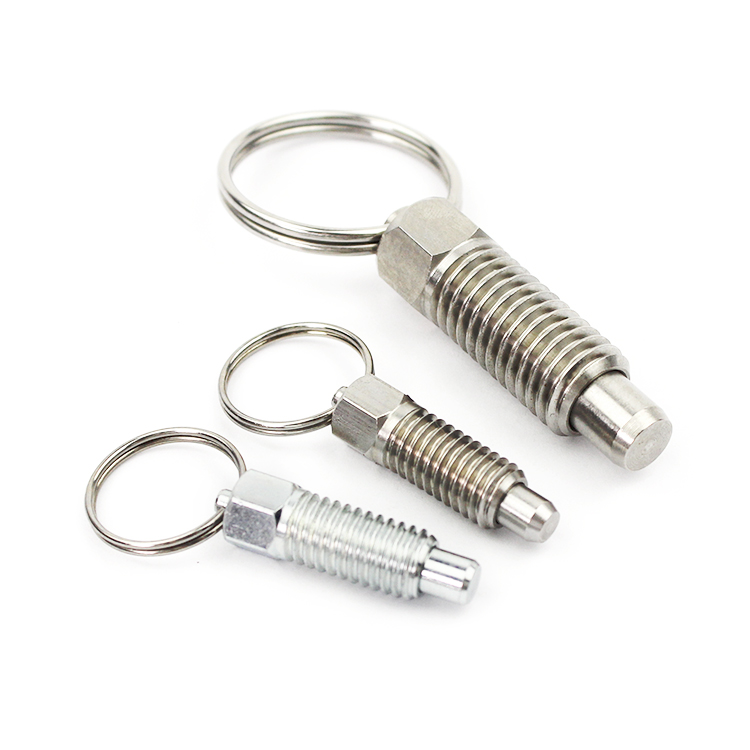

Structural design:
Threaded galvanized steel body, stainless steel pin head (AISI303);
Optional pull ring or wire loop operation, some models include locking nuts.
Material: The main body is made of galvanized steel or stainless steel.

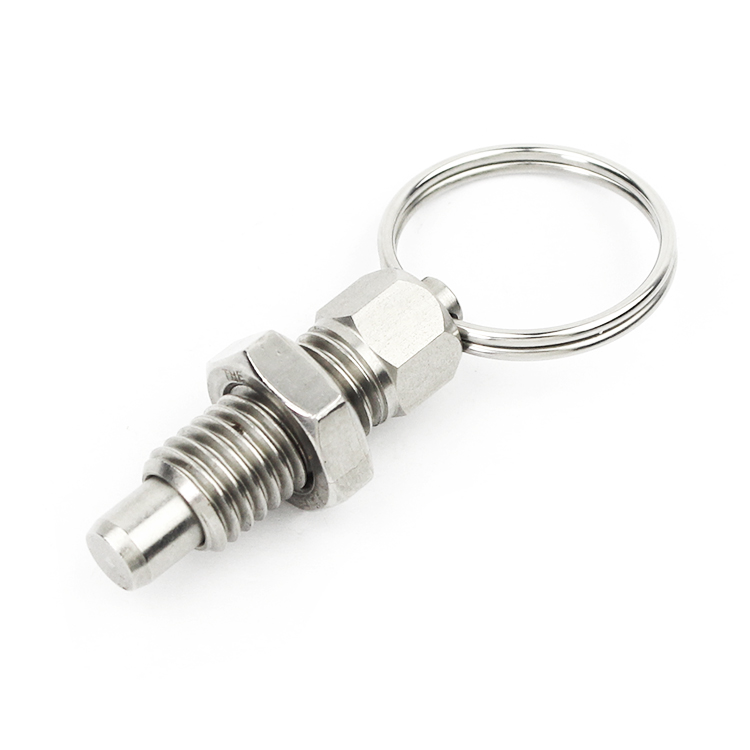

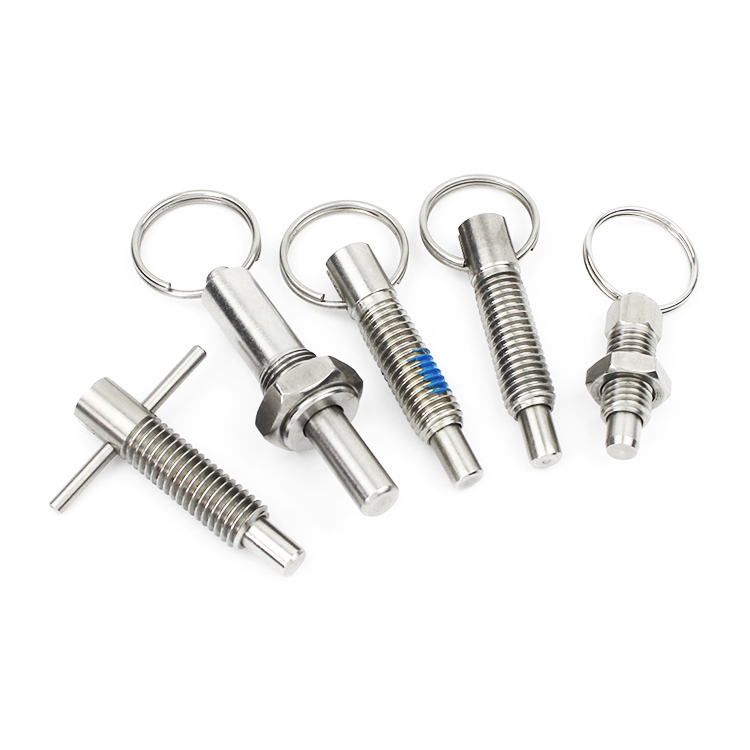

Type01: With pull ring, without lock nut
Type02: With pull ring, with lock nut
Type03: With wire loop, without lock nut
Type04:With wire loop, with lock nut
Thread Size:1/4-20inch,3/8-16inch,1/2-13inch,5/8-11inch
Hand Retractable:0.19inch,0.28inch,0.38inch,0.44inch
End Pressures Start:0.50lbs,0.75lbs,1.00lbs,1.25lbs
End Pressures Full:2.00lbs,3.00lbs,4.00lbs,5.00lbs

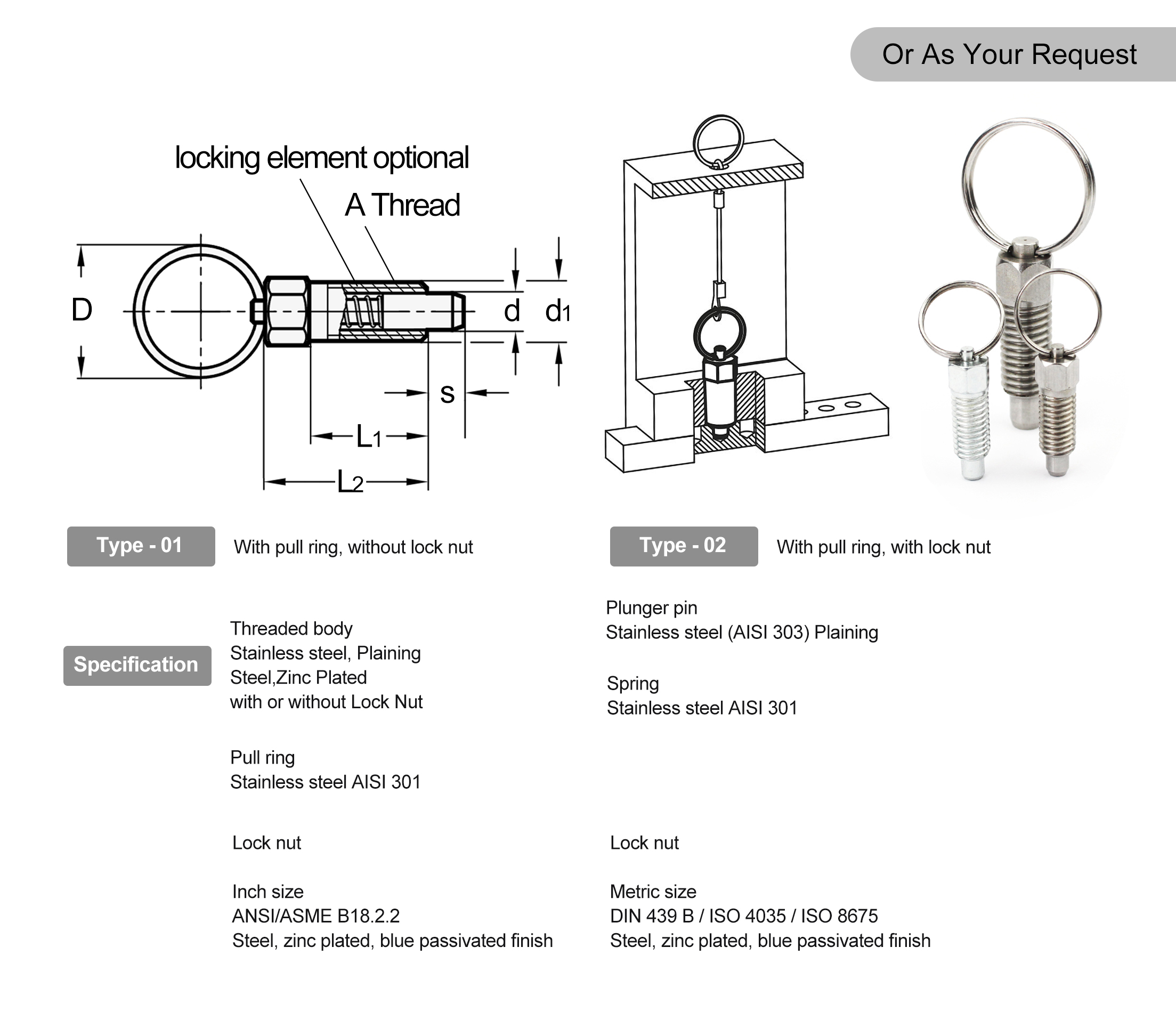

| Carbon Steel | Stainless Steel | End Pressures (lbs) | |||||||
| Part No. | Part No. | Start | Full | Thread | L2 | S | d | L1 | D |
| SRP025-C | SRP025-S | 0.50 | 2.00 | 1/4-20 | 0.44 | 0.19 | 0.16 | 0.31 | 0.75 |
| SRP375-C | SRP375-S | 0.75 | 3.00 | 3/8-16 | 0.63 | 0.28 | 0.25 | 0.44 | 0.75 |
| SRP050-C | SRP050-S | 1.00 | 4.00 | 1/2-13 | 0.81 | 0.38 | 0.31 | 0.56 | 1.00 |
| SRP625-C | SRP625-S | 1.25 | 5.00 | 5/8-11 | 1.00 | 0.44 | 0.38 | 0.69 | 1.00 |
Application:
Indexing: The workpiece in the mold and fixture is locked by indexing, and repeated positioning is achieved by inserting the plunger into the groove;
Quick adjustment device: scenes where production line fixtures and robotic arm joints require frequent manual adjustment;
Safety release mechanism: Equipment emergency manual unlocking function (such as the "Safety Pull Ring" design)

Model Definition
GN717: Product series number, identifying specific ring indexing pin model;
Indexing Plunger: Function definition, which achieves indexing function through plunger positioning;
Carbon Steel/SS303: Material options, carbon steel is economical and wear-resistant, stainless steel is corrosion-resistant;
Hexagon Head: hexagonal shell design, compatible with standard tool installation;
GN717 Indexing Plunger material advantages:
GN717 Indexing Plumger mainly offers two material options: galvanized steel (blue dull treatment) and AISI 303 stainless steel style, with advantages reflected in the following aspects:
Excellent corrosion resistance: AISI 303 stainless steel material can resist moisture and chemical corrosion, extending the service life of equipment in harsh environments; Galvanized steel also enhances its rust prevention ability through coating treatment.
High strength and wear resistance: The material design ensures that the plunger can withstand mechanical loads during high-frequency positioning operations, reducing wear and maintaining stable positioning accuracy.
