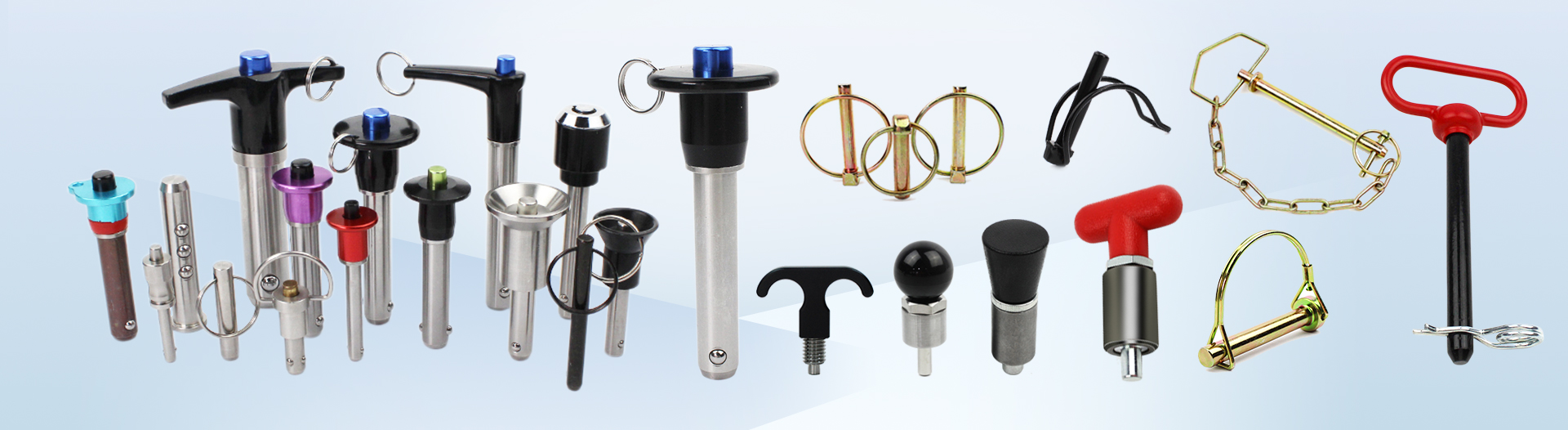

Features of Spring Loaded Pull Pin
Spring Push Pin Title:
Pop Pull Pin Knob Spring Loaded Pin
Spring Loaded Pin Introduction:
A pop pull pin knob is a mechanical device with a built-in spring that uses spring tension to achieve the extension, retraction, and reset functions of the plunger. It is commonly used in positioning, locking, or connecting scenarios;
Core components
Pull ring/handle: provides a tension fulcrum, usually a D-ring or T-ring;

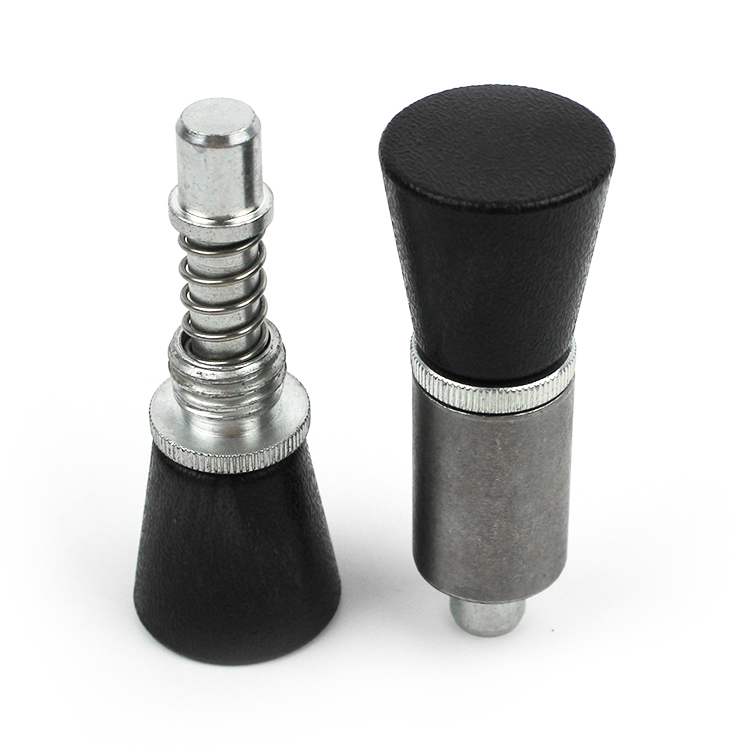

Spring locking mechanism: Built in compression spring and hardened steel ball, the steel ball pops out and locks when inserted, and retracts and unlocks when pulled; Sales body: cylindrical body, surface hardened treatment;

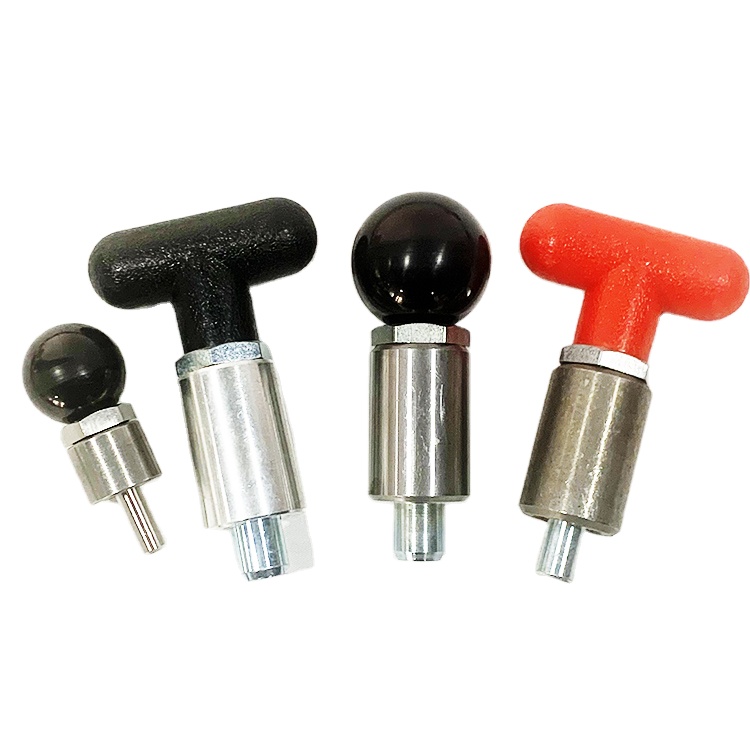

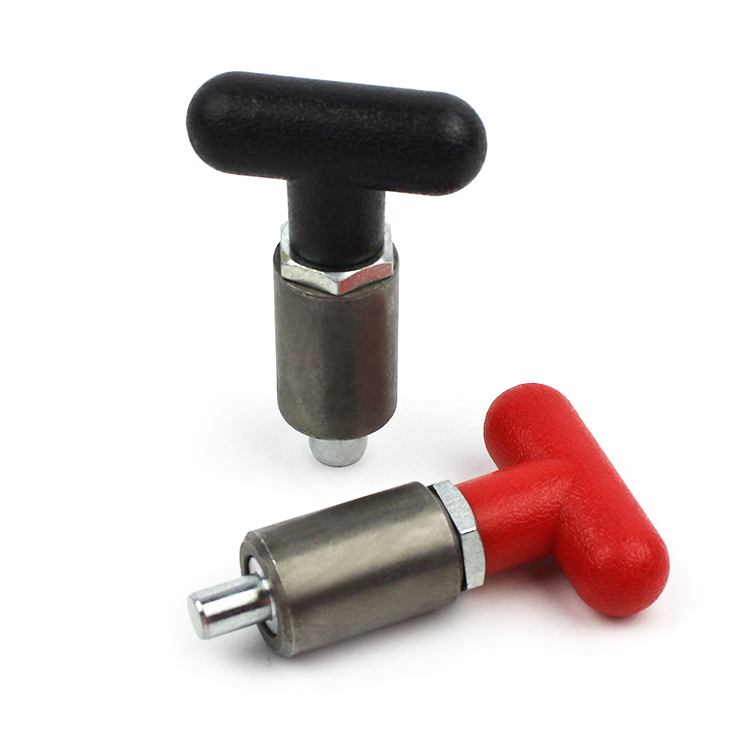

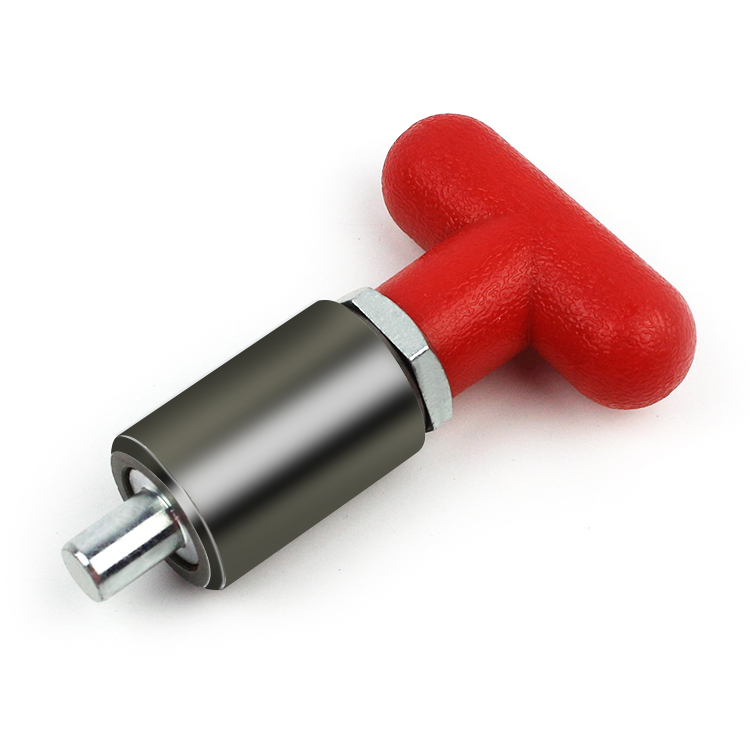

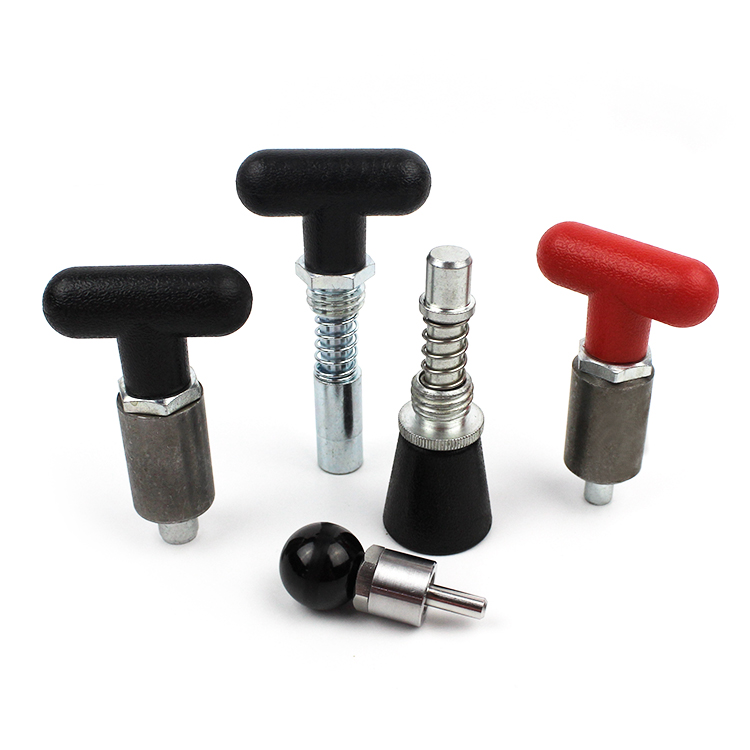

Pop pull pin Type:T handle pull pin,Round handle pull pin or Custom handle Pull Pin,etc.
Pin Housing Material:SUS304,Carbon Steel,Aluminium(Lightweight requirements)
Spring Material:High Carbon Steel Spring,Stainless Steel Spring
Knob Handle Material:Plastic,Nylon,POM,Aluminium,Stainless Steel,etc
Surface treatment process:(Carbon Steel)Black oxidation, galvanizing or phosphating treatment.
(Stainless Steel)polished,passivated or sandblasted ;
The Function of Pull-pull Pin:
Spring loaded type:
If the T-shaped handle pull pin is equipped with a spring device, the plunger can be extended and retracted through the action of the spring, which can quickly lock and position it,Push/Pull handle supports one handed push-pull switching, improving operational efficiency
Positioning sales type:
Rest Type with safety lock nut or plastic knob to prevent vibration displacement
Customizable spring pressure to meet different positioning strength requirements;

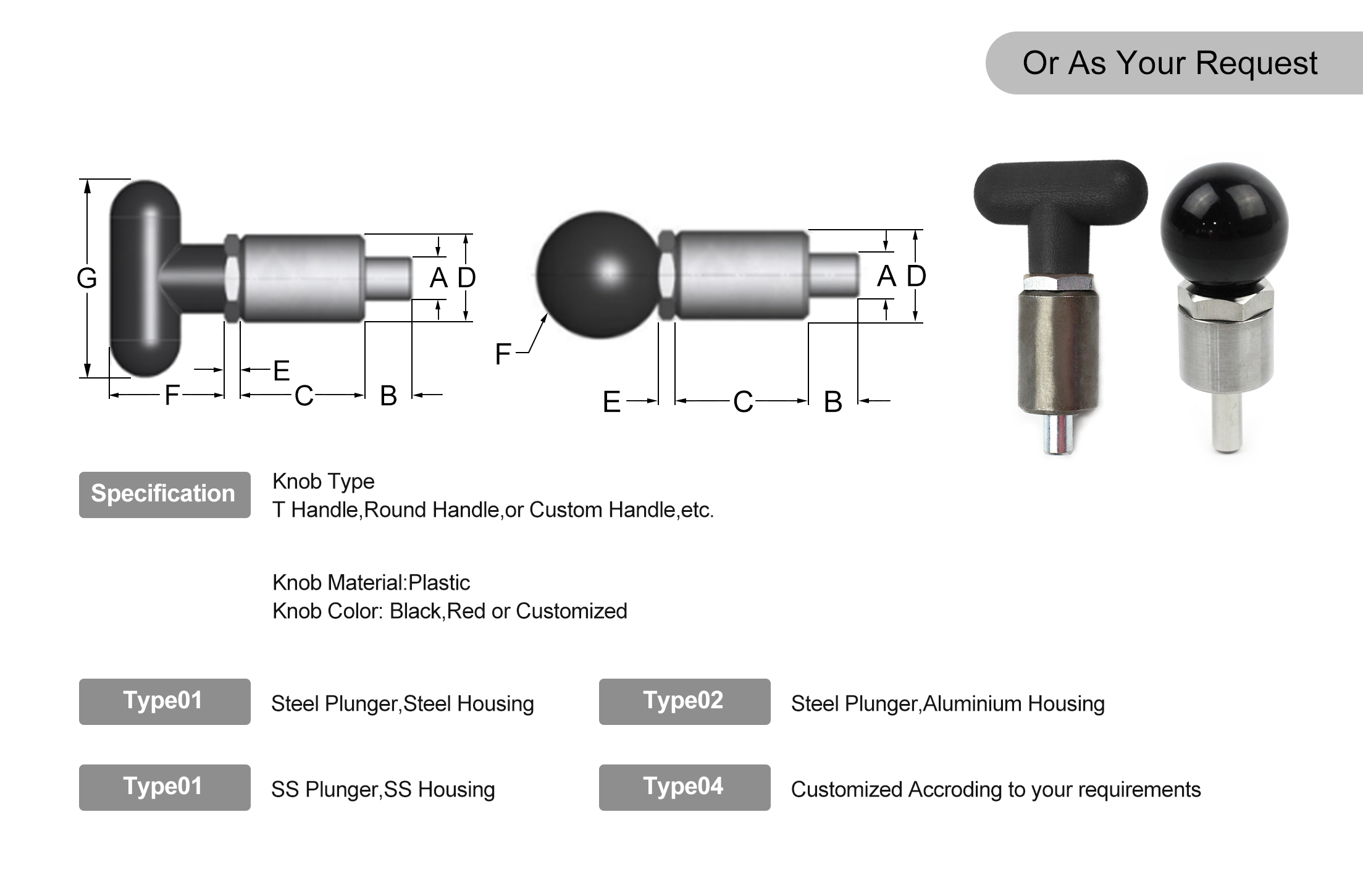

| T Handle Spring Loaded Pull Pin |
 |
Steel Plunger Steel Housing | Steel Plunger Alu. Housing | S.S Plunger S.S Housing | |||||||
| Part No. | Part No. | Part No. | A | B | C | D | E | F | G |
| PT025-150-C | PT025-150-A | ￣ | 1/4 | 9/16 | 1-1/2 | 1 | 3/16 | 1-7/16 | 2-1/4 |
| PT375-150-C | PT375-150-A | PT375-150-S | 3/8 | 9/16 | 1-1/2 | 1 | 3/16 | 1-7/16 | 2-1/4 |
| PT050-150-C | PT050-150-A | PT050-150-S | 1/2 | 9/16 | 1-1/2 | 1 | 3/16 | 1-7/16 | 2-1/4 |
| PT050-225-C | PT050-225-A | PT050-225-S | 1/2 | 9/16 | 2-1/4 | 1 | 3/16 | 1-7/16 | 2-1/4 |
| PT625-225-C | PT625-225-A | ￣ | 5/8 | 9/16 | 2-1/4 | 1 | 3/16 | 1-7/16 | 2-1/4 |
| Round Handle Spring Loaded Pull Pin |
|
Steel Plunger Steel Housing | Steel Plunger Alu. Housing | S.S Plunger S.S Housing | ||||||
| Part No. | Part No. | Part No. | A | B | C | D | E | F |
| PB025-150-C | PB025-150-A | ￣ | 1/4 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 |
| PB375-150-C | PB375-150-A | PB375-150-S | 3/8 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 |
| PB050-150-C | PB050-150-A | PB050-150-S | 1/2 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 |
| PB050-225-C | PB050-225-A | PB050-225-S | 1/2 | 9/16 | 2-1/4 | 1 | 3/16 | 1-3/8 |
| PB625-225-C | PB625-225-A | ￣ | 5/8 | 9/16 | 2-1/4 | 1 | 3/16 | 1-3/8 |
Application:
Building curtain walls, mold positioning pins, automation equipment, transportation, etc;
T Handle Pull Pin Advantage:
The high-strength pull pin shell design has strong pressure bearing capacity;
Accurate positioning and fixation of equipment or components
Different choices of multiple materials can be applied to various environmental work scenarios;
Working principle
Locking: Insert the pin into the hole → the steel ball pops out and clicks into the groove (confirm with a "click" sound);
Unlock: Pull the pull tab → Spring compression → Steel ball retraction → Pin body can be freely pulled out;
