L Handle Retractable Spring Plunger
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of L Handle Retractable Spring Plunger
Retractable Indexing Plunger Title:
High Positioning L Handle Retractable Spring Plunger
L Handle Retractable Spring Plunger Introduction:
Core Features:

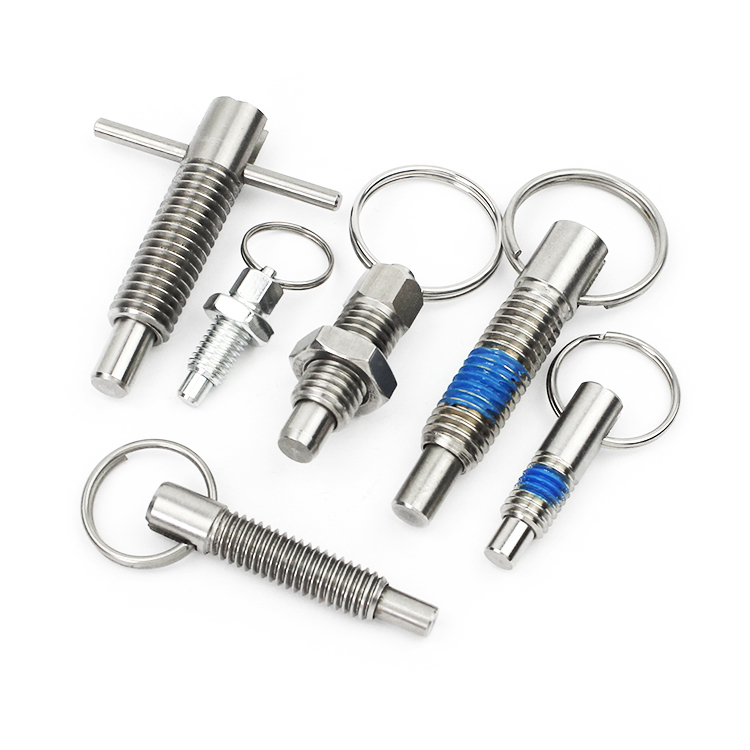

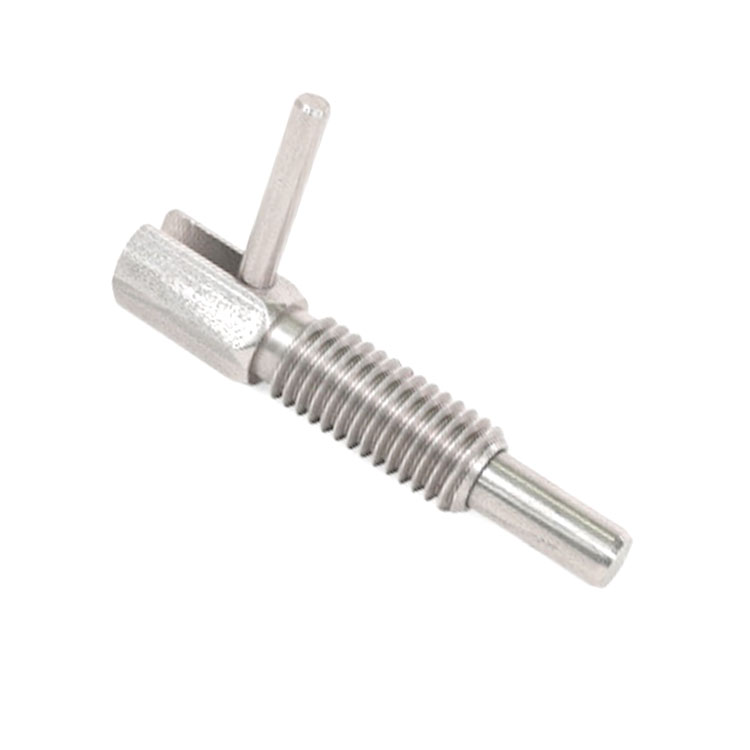

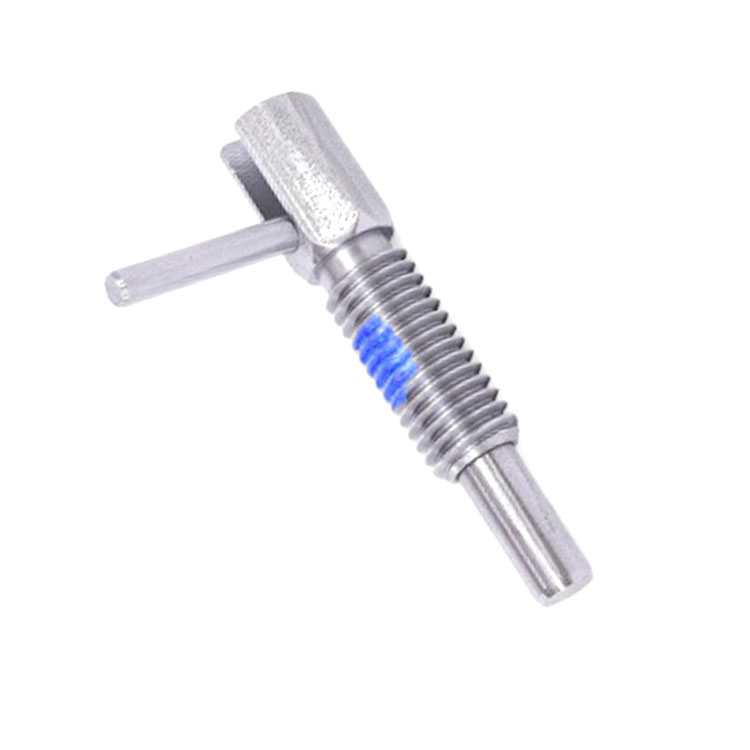

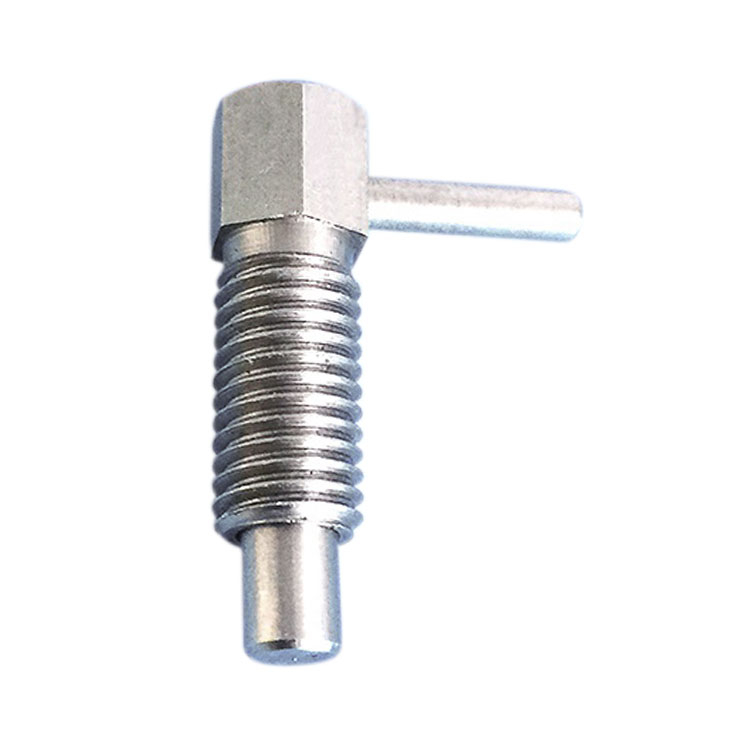

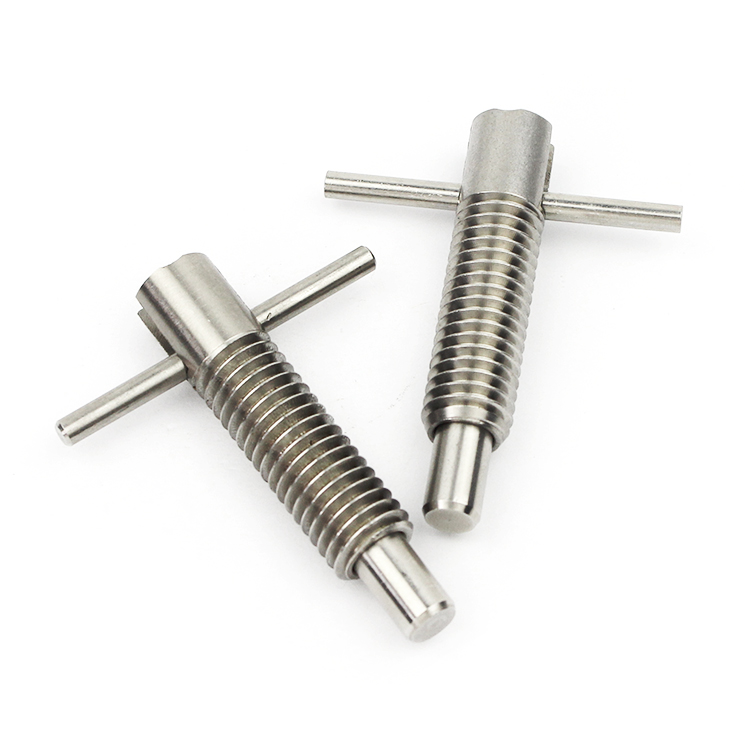

L-shaped handle design
Using an L-shaped metal handle instead of a traditional pull ring to achieve lever style labor-saving operation, the plunger can be quickly retracted with a single hand pressure;
Self Locking Mechanism
Built in ratchet or slot structure, the handle automatically locks when pressed down to a specific position, maintaining the plunger in a continuously contracted state;
Double tapping the handle will release the lock, and the spring driven plunger will instantly reset.
Spring rebound system
The plunger contains a high load stainless steel spring inside, providing stable rebound force;
Body Material:Stainless Steel(AISI 303);
Handle:Steel Nickel Plating
Thread Size:1/4-20inch,3/8-16inch,1/2-13inch,5/8-11inch

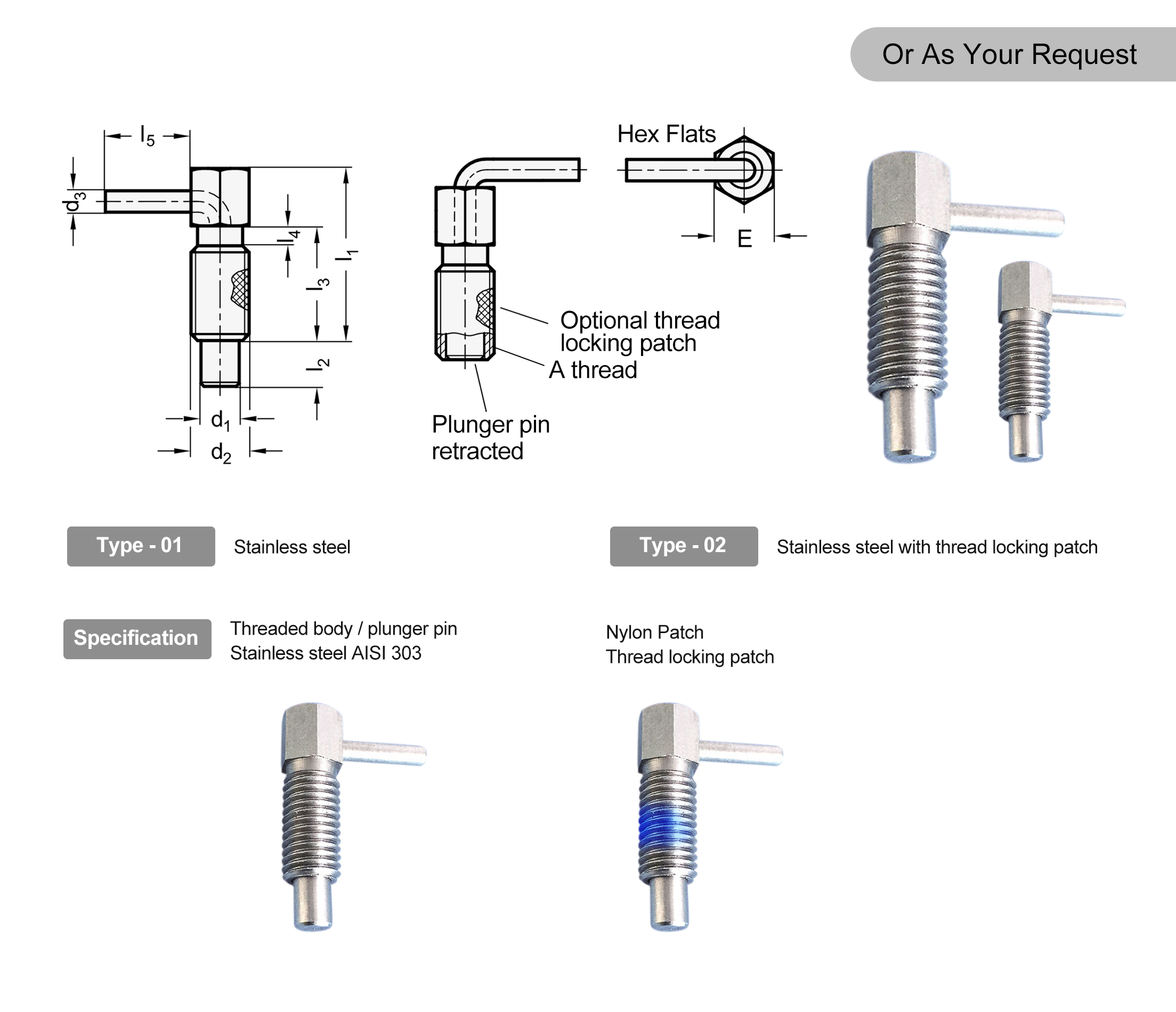

| Carbon Steel | Stainless Steel | End Pressures (lbs) | ||||||||
| Part No. | Part No. | Start | Full | Thread | I1 | I2 | d1 | E | I5 | d3 |
| LP025-C | LP025-S | 0.50 | 2.00 | 1/4-20 | 1.25 | 0.38 | 0.16 | 0.25 | 0.50 | 0.09 |
| LP375-C | LP375-S | 0.75 | 3.75 | 3/8-16 | 2.00 | 0.56 | 0.25 | 0.38 | 0.75 | 0.14 |
| LP050-C | LP050-S | 1.00 | 5.0 | 1/2-13 | 2.11 | 0.75 | 0.31 | 0.50 | 0.93 | 0.19 |
| LP625-C | LP625-S | 1.00 | 5.0 | 5/8-11 | 3.05 | 1.00 | 0.38 | 0.62 | 1.00 | 0.19 |
Application:
Modular positioning of fixtures and jigs;
Mechanical safety lock during equipment maintenance;
High load scenarios such as injection molding machines and stamping molds

Notes:
Definition of Model Naming
L Handle: Identify the operating handle as an L-shaped lever structure;
Retractable: supports manual retraction function;
Spring Plunger: The core is a spring driven plunger positioning mechanism;
Self Locking (some models): includes automatic locking/unlocking features;
Standard type: Basic L-shaped handle design, no locking function;
Self locking type (such as some stainless steel models): with locking card slot;
Customized version: adjustable spring stiffness or thread specifications;
