Features of Retractable Spring Plunger - No Locking
Retractable Indexing Plunger Title:
High Precise Retractable Indexing Plunger No Locking retractable plunger
Hand Retractable Spring Plunger Introduction:
Main features of the product:

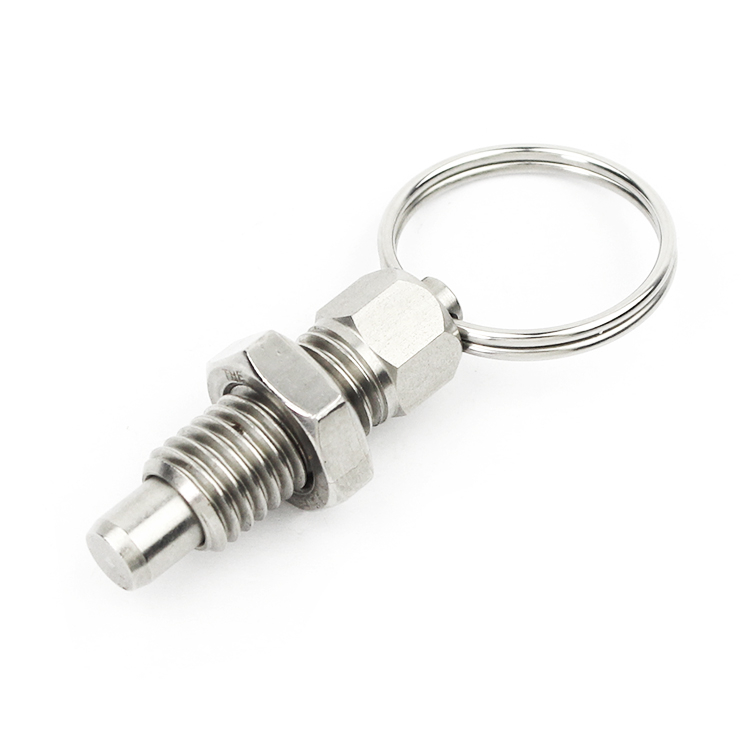

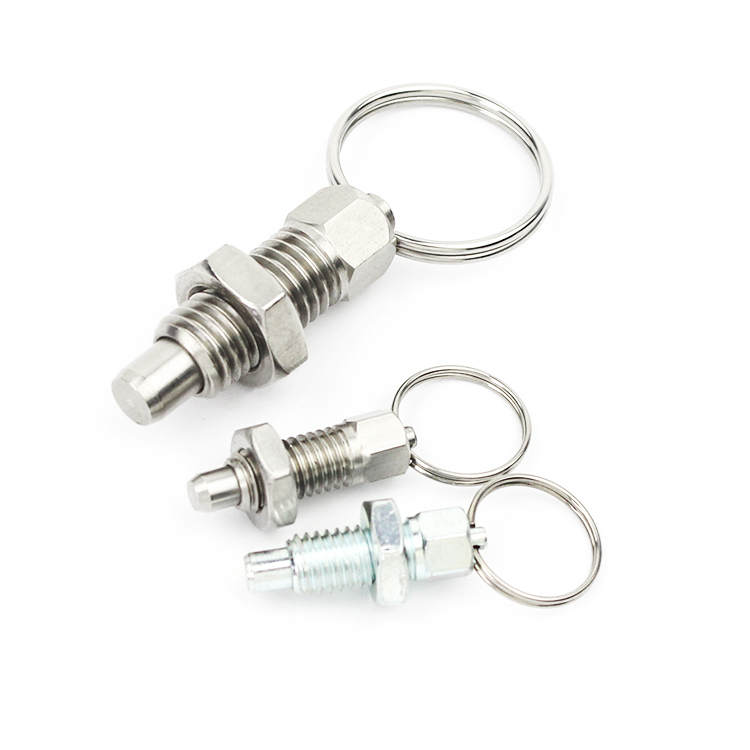

Pull Ring: The circular design facilitates finger pulling and manual control of plunger contraction.
Plunger: A spring-loaded metal rod (such as stainless steel or carbon steel) that provides positioning pressure.

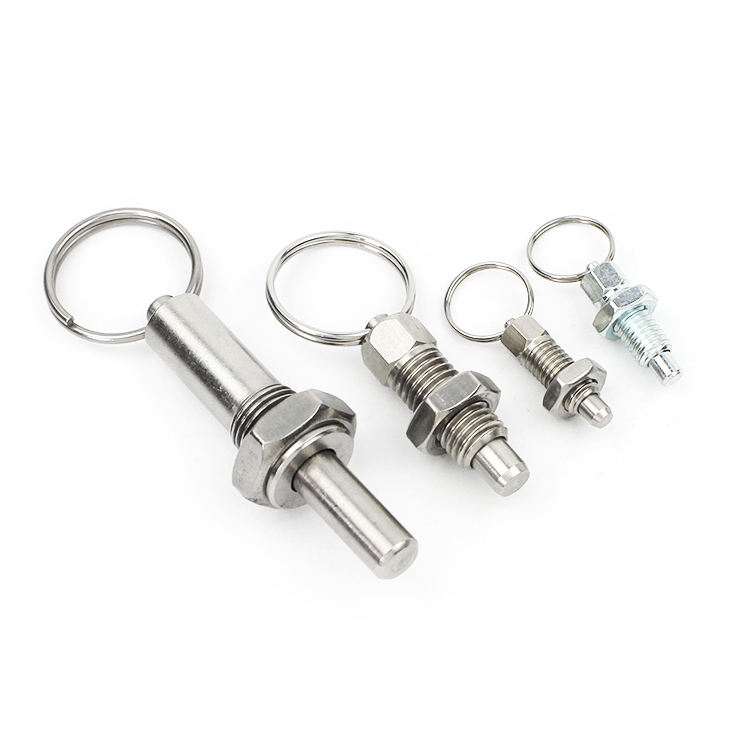

Material and Craftsmanship
Material: Stainless Steel or Carbon Steel can be selected, balancing corrosion resistance and strength.
Surface treatment:
Stainless steel is polished in plain color;
Carbon steel can be coated with either Black Ring or Zinc Plated
Model Number:
Plunger Pin Dia.:4.0mm,5.0mm,6.0mm,8.0mm
Thread Size:M6,M8,M10,M12
Exposed Pin Height (S):4.0mm,5.0mm,6.0mm,8.0mm
Pull Ring Dia.:14.0mm,18.0mm,24.0mm,30.0mm
End Pressures Strat:3.0lbs,5.0lbs,6.0lab
End Pressures Full:12.0lbs,24.0lbs,21.0lbs,22lbs
| Carbon Steel | Stainless Steel | End Pressures (lbs) | ||||||||
| Part No. | Part No. | Start | Full | d1Thread | d | S | L1 | L2 | D | J |
| MRP006-C | MRP006-S | 3.0 | 12.0 | M6 | 4.0 | 4.0 | 12.0 | 4.5 | 14.0 | 3.0 |
| MRP008-C | MRP008-S | 5.0 | 24.0 | M8 | 5.0 | 5.0 | 16.0 | 6.0 | 18.0 | 4.0 |
| MRP010-C | MRP010-S | 5.0 | 21.0 | M10 | 6.0 | 6.0 | 20.0 | 7.5 | 24.0 | 5.0 |
| MRP012-C | MRP012-S | 6.0 | 22 | M12 | 8.0 | 8.0 | 24.0 | 9.0 | 30.0 | 6.0 |
Application:
Positioning and indexing: achieving rapid indexing and positioning of workpieces in molds and fixtures;
Safety device: a manually released safety lock buckle in mechanical equipment (such as a "Safety Pull Ring");
Frequent adjustment scenarios: scenarios where production line fixtures and automation equipment need to be repeatedly adjusted in position;

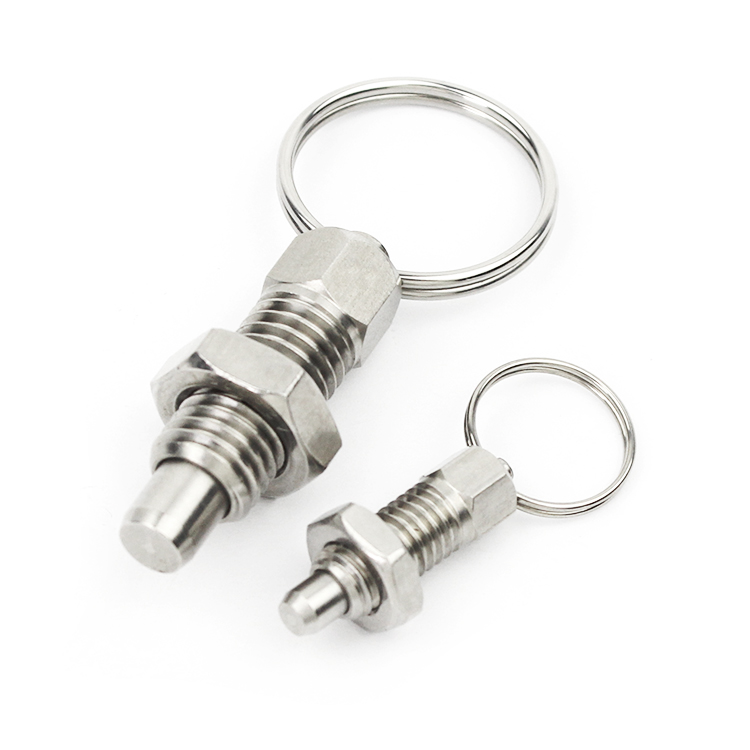

Product Definition and Details
Product Definition Explanation
Pull Ring: A circular handle that triggers plunger contraction by manually pulling it;
Retractable: The plunger automatically pops out and resets after the tension is removed;
No Locking: No locking function, relying entirely on spring reset force to maintain position;
