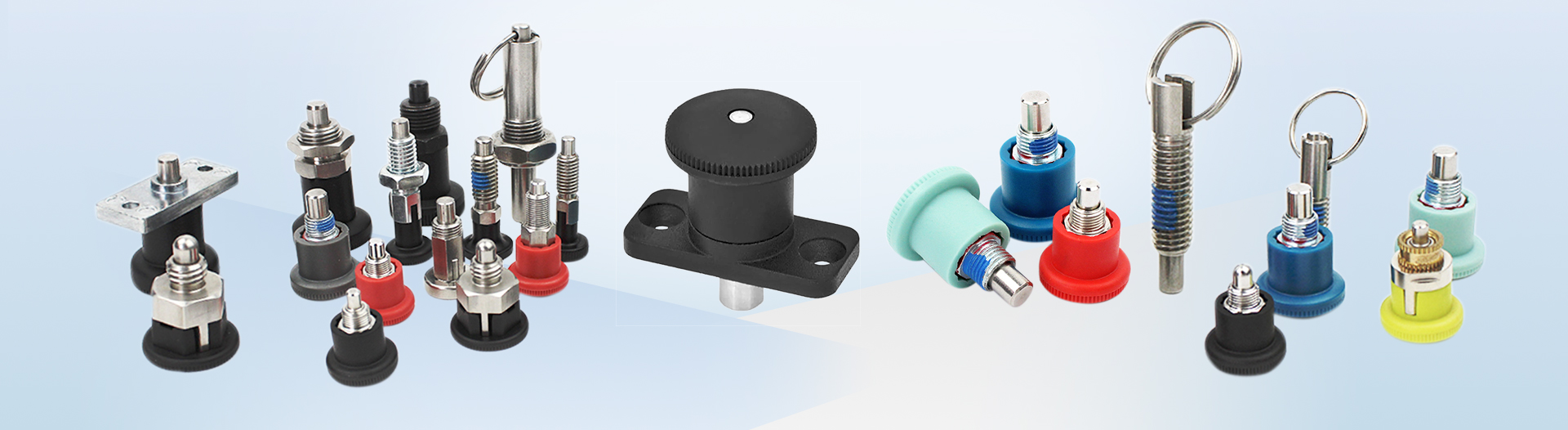

GN822.8 Stainless Steel Mini Indexing Plunger For Precision Positioning

Features of GN822.8 Mini Indexing Plunger

The GN822.8 series represents a highly specialized category of miniature positioning hardware, engineered specifically for compact spaces and thin-walled sheet metal components. By utilizing a concealed locking mechanism, this compact structure effectively saves critical internal equipment space without compromising on holding strength. When handling the plunger during assembly, operators will immediately notice the solid, reassuring weight of the industrial-grade materials. The tactile feedback provided during engagement instills confidence in secure positioning, ensuring that every mechanical adjustment is both precise and repeatable. Designed to integrate flawlessly into complex assemblies, these plungers eliminate the need for bulky external locking levers, streamlining the overall footprint of your machinery while maintaining maximum operational reliability.

GN822.8 Index Spring Plunger Title:

Mini Indexing Plunger GN822.8 stainless indexing plunger for Gym and Precision Equipment

This specialized plunger is crafted to endure the rigorous demands of frequent adjustments, making it an ideal choice for commercial gym equipment, precision testing jigs, and automated manufacturing lines where consistent performance is paramount. The cool touch of the stainless steel pin combined with the ergonomic polymer knob creates a premium user experience.

Indexing Spring Plunger Introduction:

GN822.8 is a mini indexing plunger that achieves precise positioning and locking through a highly responsive spring-loaded mechanism. The knob is designed with a distinct anti-slip texture, ensuring a firm, secure grip even in environments where industrial oils or lubricants might be present.

Non positioning groove type: suitable for continuous indexing scenarios (such as turntable indexing). This execution provides fluid, uninterrupted movement, allowing rapid transition between stations.

With positioning groove type: It needs to match the workpiece groove and provide mechanical stops. By simply pulling out and rotating the knob by exactly 30 degrees, the plunger achieves a static, secure rest position. The built-in notch guarantees that the lock remains steadfast without any unintended spring-back, delivering a crisp, audible click that confirms full engagement to the operator.

Spring Indexing Plunger Model Number:

Standard Model GN822.8:

Plunger Rod Diameter:4mm、5mm、6mm、8mm、10mm or Customized

Spring Pressure:Preload [N]:4.5N-11N,Max.load[N]:12N-35N

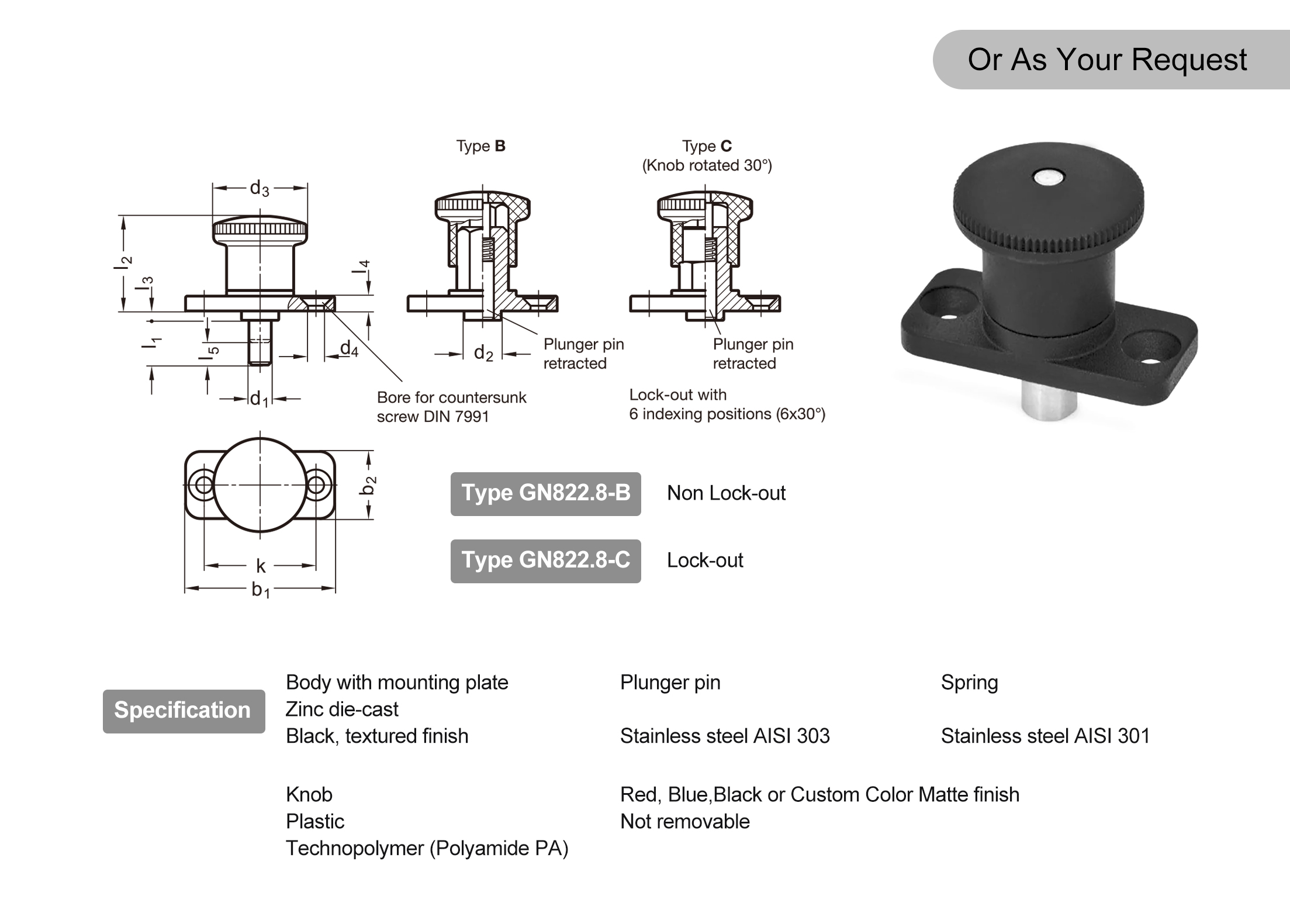

Variant Model GN822.8:

Body with mounting plate: Zinc die-cast Powder coated Black, textured finish

Plunger pin: Stainless steel AISI 303

Spring: Stainless steel AlSl 301

Knob Plastic: Technopolymer (Polyamide PA)

-Temperature resistant up to 230 °F(110°C)   Black, matte finish

-Not removable

Standard Executions

-Execution B: Without rest position

-Execution C: With rest position-Pull the knob and turn it by 30°

To seamlessly support engineering design and component selection, comprehensive technical resources are readily available. This includes downloadable 3D CAD models, detailed load rating information, and comprehensive material property data sheets, ensuring a perfect match for your specific engineering requirements. Furthermore, flexible customization services are offered, supporting tiered pricing and volume procurement discounts. Buyers can request specific knob colors, such as high-visibility red for emergency release points, alongside non-standard thread specifications tailored to unique project demands.

The Core Function of Index Plunger Auto Lock:

High positioning accuracy, suitable for high-precision scenarios, elastic crimping structure reduces displacement risk; Has good automation adaptability;

Customized requirement design:

Adjustable rod length, spring force, surface coating, and support for manufacturing non-standard thread specifications.

The fundamental value of this auto-lock index plunger lies in its ability to maintain absolute alignment under rigorous operational cycles. The elastic crimping structure significantly mitigates the risk of lateral displacement, ensuring that automated machinery functions without interruption or costly misalignment errors. The smooth surface coating not only enhances the visual appeal but also reduces friction during rapid actuation, translating to lower maintenance requirements. By securing moving parts with absolute certainty, this mechanism protects delicate internal components from vibration-induced wear.

Application:

Mechanical arm positioning, screw locking, equipment fixation, module insertion, etc.

These plungers excel in demanding environments where exact repeatability is non-negotiable. In mechanical arm positioning, the plunger provides a definitive stop that operators can feel and hear, confirming that the arm is locked securely in its designated coordinate. For module insertion tasks within server racks or testing jigs, the compact footprint allows for dense packing of components without interference. The resilient stainless steel construction resists the wear and tear typical of heavy-duty equipment fixation, maintaining its structural integrity and visual matte finish even after thousands of actuation cycles in harsh industrial settings.

Advantage of Spring Loaded Indexing Plunger:

Corrosion resistance and long service life:

Directly press in installation reduces processing steps and improves assembly efficiency;

Support sample delivery design, flexible customization services

Provide service technical support；

The materials used in the GN822.8 series strictly comply with international environmental directives, including RoHS, meeting the stringent entry standards for global procurement and export. The inherent corrosion resistance of the AISI 303 stainless steel ensures a long service life, even in humid or mildly corrosive atmospheres. To resolve system assembly challenges comprehensively, a range of standardized matching accessories is available, such as spacing collars, low-profile thin hex nuts, and precision positioning bushings. This one-stop approach simplifies the bill of materials, accelerates the transition from prototyping to full-scale production, and ensures that every component works in perfect harmony.

Installation points:

After cleaning the threaded hole, manually screw it in to avoid deformation caused by excessive torque. SS high load type and stainless steel material are preferred for high vibration scenarios.

The lock nut is intelligently designed with exposed wrench flats. This seemingly minor detail vastly improves the ease of installation, allowing technicians to use standard open-end wrenches to quickly and firmly tighten the plunger within extremely confined spaces. Proper seating ensures the spring mechanism operates flawlessly without binding, maximizing the lifespan of the internal coil.

Installation steps:

01. Manual pre alignment

Insert the plunger vertically into the threaded hole and rotate clockwise until the flange is completely in contact with the base, without any diagonal force.

02. Torque tightening

Use an open-end wrench to fix the flange hexagonal surface and tighten it in stages according to specifications: (the plastic plug head needs to be reduced in force).

Achieving the perfect installation yields a satisfying, flush fit against the mounting surface. The initial manual alignment protects the delicate internal threads from cross-threading, a common issue in rapid assembly lines. When applying torque, the staged tightening approach prevents stress concentrations, preserving the smooth, linear travel of the inner pin.

Installation process:

A [Check thread specifications] -->B [Clean base hole] -->C [Manually screw in to flange fit] -->D [Torque wrench graded tightening] -->E [Verticality correction] -->F [Load test]

Following this precise sequence guarantees optimal performance across all applications. The load test (Step F) is particularly crucial; operators should feel the crisp resistance of the preload spring (starting at 4.5N) and the smooth compression up to the maximum load. This tactile verification ensures the plunger will perform reliably during its operational lifespan, providing peace of mind for both assemblers and end-users alike.
