Metric Brass Tip Set Screw For Non-Destructive Clamping

Comprehensive Features of Metric Brass Tip Set Screws

Soft Tip Set Screw Configurations

When precision assembly demands a secure hold without the risk of surface damage, our socket nylon tip set screws and colorful brass tip set screws provide the ideal fastening solution. Engineered with a meticulously machined metallic body and a specialized soft insert, these fasteners deliver a firm, uniform grip. The tactile difference is immediate—while the carbon steel or stainless steel exterior offers a cold, unyielding strength, the embedded nylon or brass tips present a slightly yielding, smooth contact point. This dual-material construction ensures that delicate components remain entirely free from unsightly scratches, gouges, or compression marks during installation. Available in a spectrum of tip colors including green, red, and blue, these screws not only serve a critical mechanical purpose but also aid in visual identification during complex assembly processes, streamlining inventory management and reducing installation errors.

Round Tip Set Screw Introduction

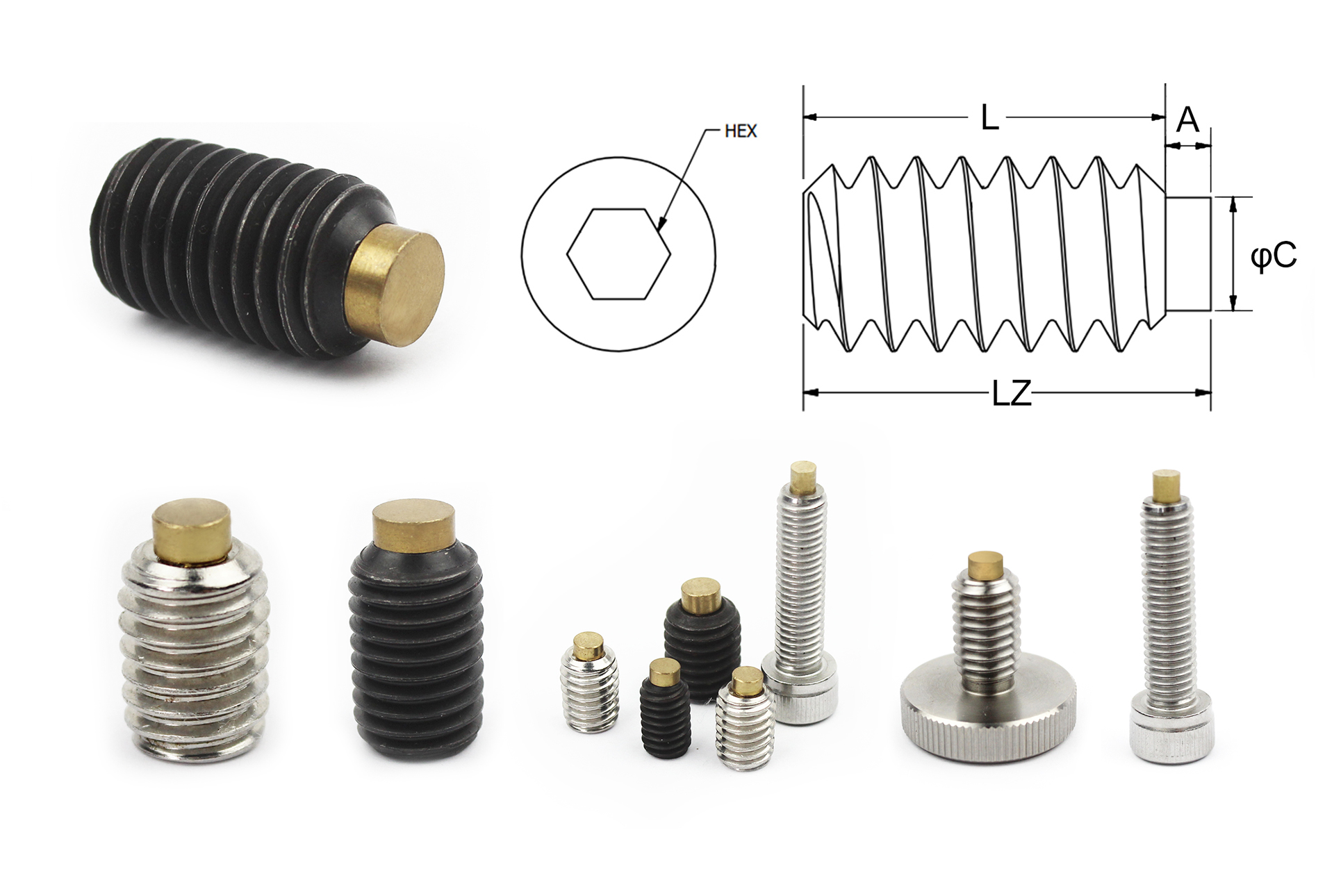

The metric brass tip set screw stands as a premium fastener specifically designed with non-metallic or soft brass ends to facilitate non-destructive clamping. In industries where surface integrity is paramount, traditional hardened steel screws can easily crush or permanently scar fixed components. Our specialized soft-tipped design fundamentally eliminates this risk by distributing the clamping force evenly across the contact area. Beyond standard offerings, we provide extensive customization capabilities covering the entire M2 to M24 size range. Whether your project requires a specific head type, a unique drive slot, or a proprietary tip material, our engineering team can adapt the design to meet exacting OEM and ODM specifications. The smooth, precisely cut threads ensure a fluid rotation during installation, allowing technicians to achieve optimal torque without the friction or binding often associated with lesser hardware.

Our diverse portfolio of soft-tipped fastening solutions is engineered to accommodate a wide array of demanding environments. Each variant is crafted to deliver exceptional performance, combining structural rigidity with protective contact points to safeguard your most valuable assemblies.

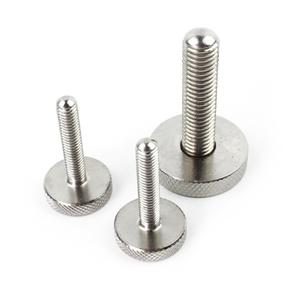

• Common Configurations: Set screws with integrated nylon or brass tips, socket cap heads featuring soft inserts, and spade thumb screws designed for rapid manual adjustment without the need for specialized tooling.

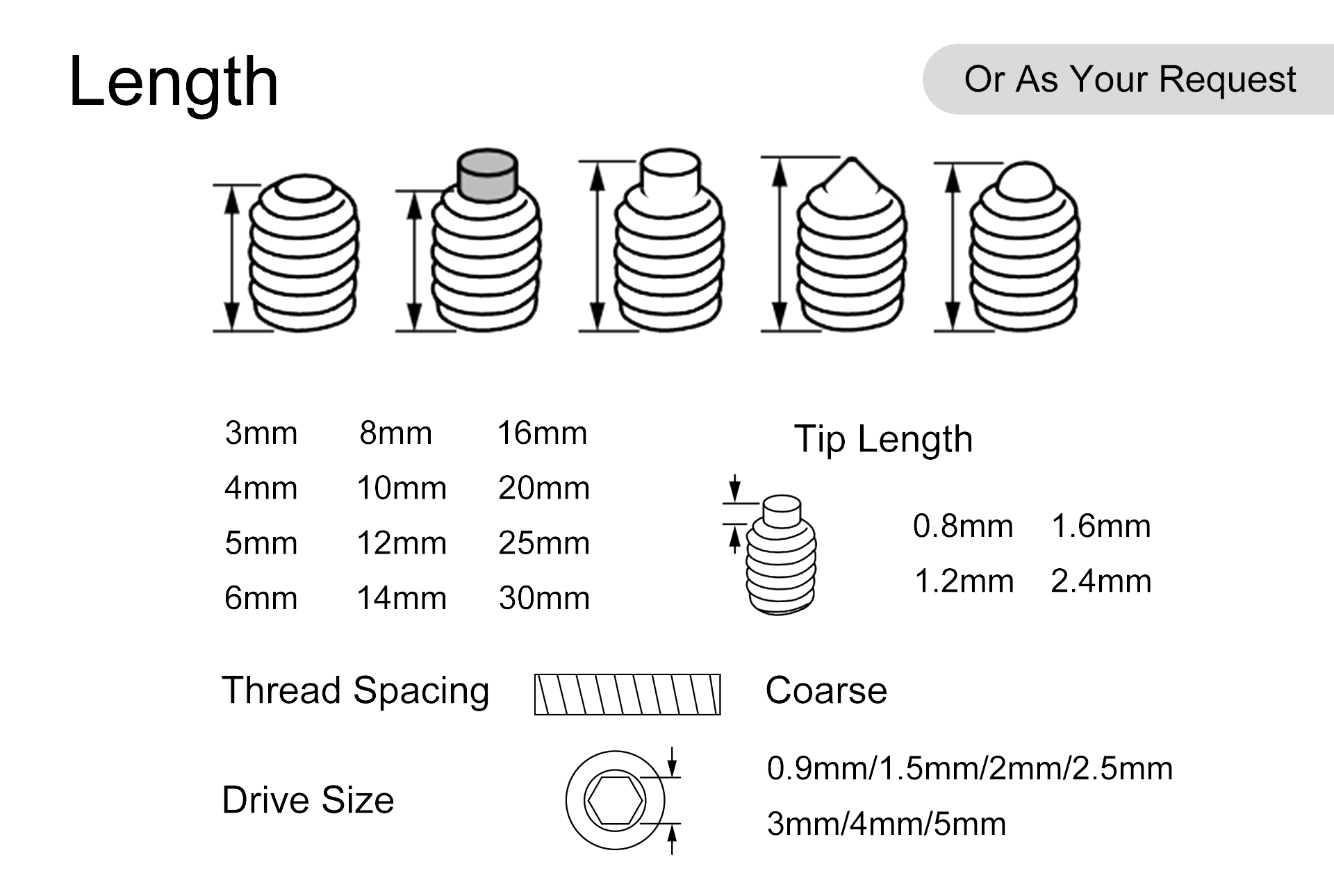

• Dimensional Range: Comprehensive coverage of metric thread sizes from M2 through M24. We also offer standard inch dimensions including #2, #3, #4, 1/4-inch, and 5/16-inch, with full support for custom sizing based on specific project requirements.

• Premium Body Materials: Constructed from high-tensile Carbon Steel finished with a sleek Black Oxide coating, or marine-grade Stainless Steel (SS304/SS316) for superior rust resistance. Alternative body materials include solid brass and durable plastics like POM, PP, or Nylon.

• Protective Tip Materials: Choose from resilient industrial plastics, impact-absorbing Nylon 6/6, or solid brass. The distinct golden gleam of the brass tip signifies excellent electrical conductivity and resistance to heavy oil stains.

• Visual Identification: Nylon tips are available in vibrant colors—including green, red, and blue—allowing for quick visual confirmation of specific thread pitches or torque ratings directly on the assembly line.

• Drive & Head Styles: Tailor your installation process with versatile head types (Flat, Pan, Round) and reliable drive styles (Slotted, Phillips, Hex Socket) that mate perfectly with standard tooling to prevent stripping.

• Advanced Surface Finishes: Enhance longevity and aesthetic appeal with specialized protective coatings, including Zinc-plating for general corrosion resistance, Nickel-plating for a bright, durable finish, and Black Oxide for minimized light reflection.

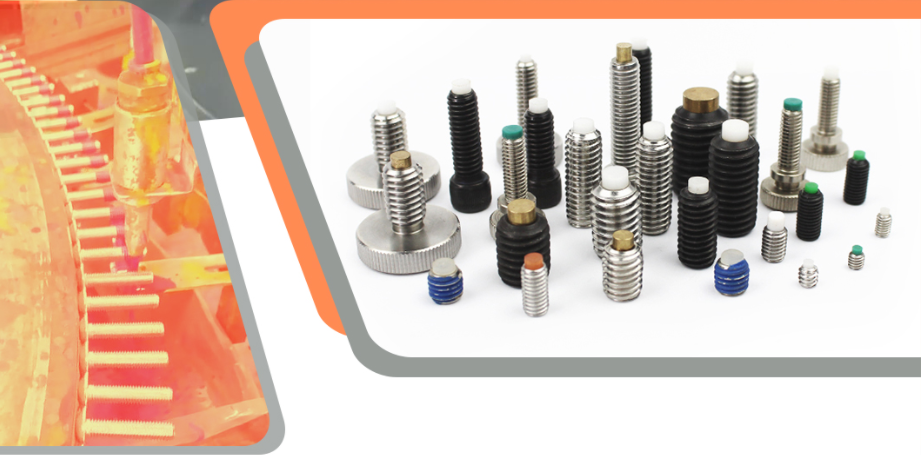

Core Application Scenarios

Engineered specifically for sectors where surface integrity is an absolute necessity, these non-destructive clamping fasteners excel in highly sensitive environments. In the realm of precision instruments, the soft brass or nylon tip applies a calculated, uniform pressure that holds delicate optical lenses or calibration dials firmly in place without inducing micro-fractures or alignment shifts. For electronic manufacturing, particularly PCB board fixation, the insulating properties of the nylon tip prevent unintended electrical shorts while absorbing the subtle thermal expansions of the circuit board. Furthermore, in high-end furniture assembly, these screws provide invisible, structural support; the soft tip presses against polished wood or glass panels, securing the framework tightly while completely avoiding the deep scratches or compression dents that standard metal fasteners would inevitably cause.

The Function of Socket Set Screw Brass Tips

The fundamental architecture of the socket set screw with a brass tip is built around maximizing holding power while minimizing collateral wear. The relatively softer end material acts as a physical buffer, dramatically reducing friction and mechanical wear on the workpiece surface during the final tightening phase. To combat the relentless challenges of high-frequency vibrations in automated machinery, select models integrate advanced anti-loosening designs. This includes the application of specialized Threadlocker adhesives or the incorporation of unique groove structures that lock the threads securely in place, ensuring the fastener remains steadfast even under continuous seismic stress. Furthermore, strict adherence to high-standard thread tolerance control guarantees a flawless fit with standard hex socket or slotted drivers. This meticulous machining prevents the frustrating experience of tool slippage, protecting the internal drive geometry from stripping and ensuring a smooth, predictable installation every single time.

Rubber & Brass Tipped Set Screws Advantages

Choosing our specialized soft-tipped fasteners translates directly into enhanced product longevity and superior assembly quality. The protective contact characteristics of the soft head design are unparalleled; by yielding slightly upon contact, the tip maintains the pristine appearance and structural integrity of the mating workpiece. This allows for high-precision clamping where uniform fastening pressure is applied across the entire contact zone, actively preventing the localized deformation or stress concentrations typically caused by hardened steel points.

Material selection further amplifies these benefits. The robust brass ends are inherently resistant to heavy industrial oil stains and offer excellent thermal insulation. Conversely, when specific copper alloy ends are utilized, they provide reliable electrical conductivity paired with exceptional corrosion resistance, making them ideal for grounding applications in harsh environments. Finally, our commitment to sustainable manufacturing means that all product materials and surface treatment processes strictly comply with international environmental and industrial standards, including RoHS and REACH. This ensures that your procurement aligns perfectly with global compliance requirements, delivering a fastening solution that is as responsible as it is reliable.
