Metric Nylon Tip Set Screw For Non-Destructive Clamping

Features of Metric Nylon Tip Set Screw

Soft Tip Set Screw Overview

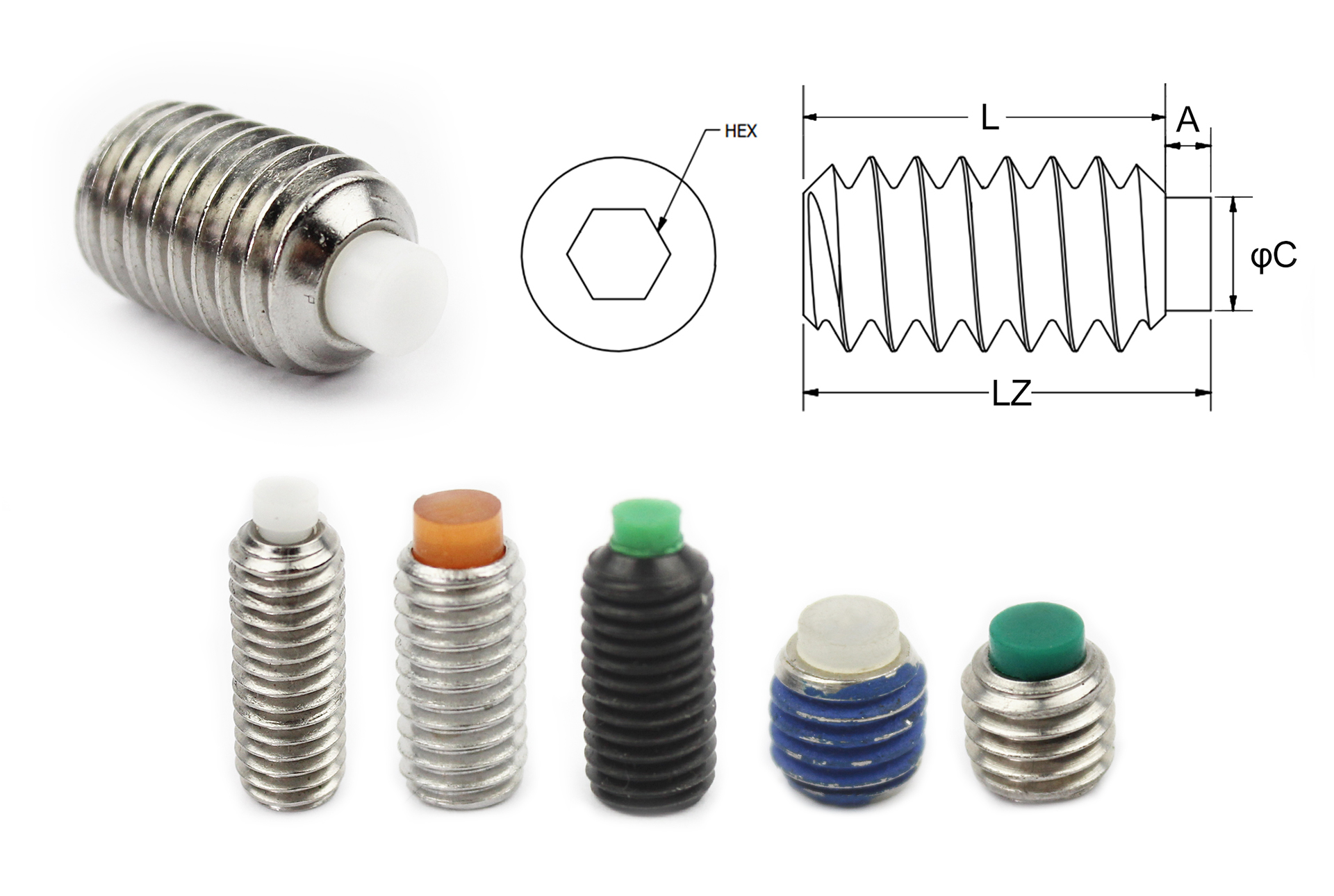

These socket nylon tip set screws, often recognized by their distinctly colorful soft tips, are engineered to deliver precise holding power without compromising the structural integrity of delicate mating surfaces. The visual color coding—ranging from vibrant greens to deep blues—serves a practical purpose on busy assembly lines, allowing operators to instantly identify specific thread sizes or material compositions. When handled, the fastener presents a solid, cold metallic body that transitions into a uniquely smooth, slightly yielding polymer tip, providing a tactile assurance of its protective capabilities during critical fastening operations.

Round Tip Set Screw Introduction

A nylon tip set screw functions as a specialized fastener equipped with a non-metallic or soft polymer end. It is meticulously designed to provide non-destructive clamping in precision assembly environments. By creating a yielding barrier between the driving force and the target material, it entirely avoids scratches, galling, or crushing on the surface of fixed components. As torque is applied, the resilient tip flattens marginally against the shaft, distributing the compressive load over a wider contact area rather than concentrating it at a single sharp point.

Specifications & Material Selection

The common types of Soft Tipped Set Screw are designed to accommodate a diverse range of mechanical demands and environmental exposures. Selecting the correct combination of body material and tip composition is crucial for optimizing performance.

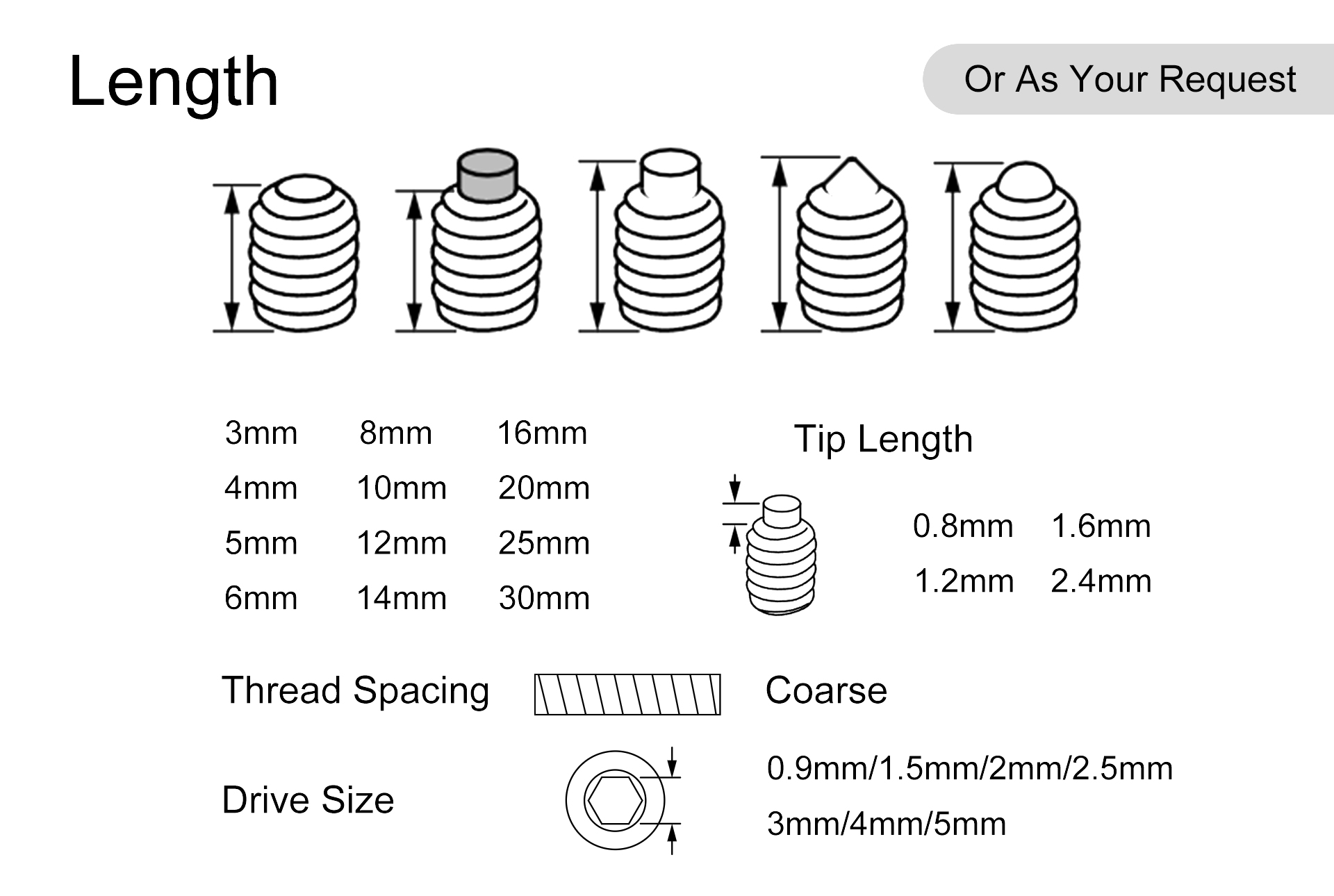

• Configuration Types: Set Screw with Nylon and Brass Tip, Socket Cap Head with Nylon and Brass Tip, Spade Thumb Screw with Nylon and Brass Tip.

• Thread Size: Metric-M2-M24 or customized according to specific product requirements.

• Inch Dimensions: #2 / #3 / #4 / 1/4inch / 5/16inch or according to the product blueprint.

• Screw Material: Carbon Steel (featuring a matte Black Oxide finish for mild corrosion resistance), Stainless Steel (Such as SS304/SS316 for harsh environments), Brass, or full plastic bodies (POM/PP/Nylon).

• Tip Material: Plastic, Nylon 6/6 (excellent electrical insulation and slight flex), Brass (superior conductivity and rigidity), etc.

• Tip Color: Nylon Tipped Green/Red/Blue, etc., allowing for rapid visual sorting during complex assemblies.

• Screw Head Type: Flat Head, Pan Head, Round Head, etc.

• Screw Drive Style: Slotted Type, Phillips, Hex Socket, etc., ensuring compatibility with both manual torque wrenches and automated driving equipment.

• Finish Options: Zinc-plated, Nickel-plated, Black Oxide, etc., providing tailored protection against oxidation.

Applications of Nylon Tipped Set Screws

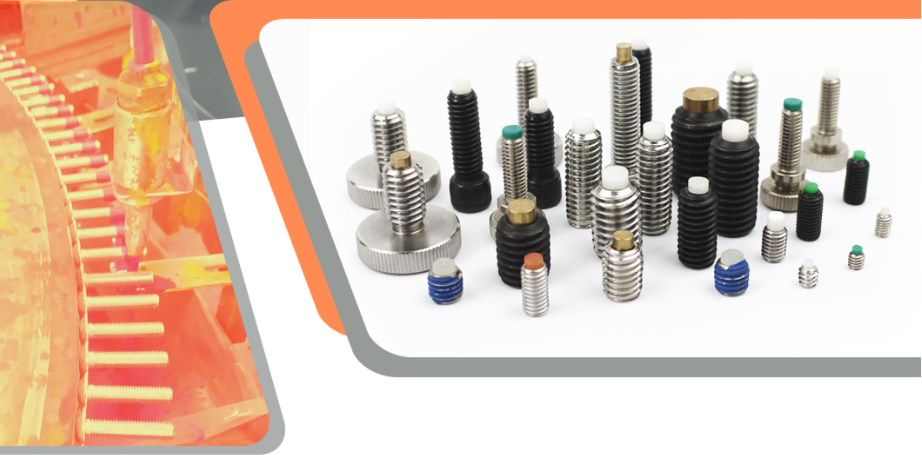

These specialized fasteners are indispensable across multiple sectors requiring non-marring engagement. In Furniture Assembly, they secure glass panels or polished metal frames without inflicting stress fractures or surface scratches. For PCB Board Fixation, the electrically insulating properties of the nylon tip prevent short circuits while applying gentle, even pressure that prevents micro-cracks in fragile fiberglass substrates. Within Precision Instruments, such as optical lens housings or calibration dials, they lock components firmly in place without distorting the surrounding thin-walled metals.

Beyond conventional uses, these soft-tipped screws are heavily relied upon in extreme and industry-specific environments. Medical device manufacturers utilize stainless steel variants with nylon tips to meet strict cleanliness and non-magnetic requirements. Similarly, in food processing equipment and semiconductor cleanrooms, the absence of metal-on-metal scraping means zero particulate generation, ensuring the assembly remains compliant with stringent hygiene and contamination standards.

The Function of Socket Set Screw Nylon Tip

Wear Reduction: The soft end material significantly reduces wear on the surface of the workpiece. Instead of grinding into the shaft, the nylon insert conforms slightly to the mating profile, creating a secure friction fit that leaves no permanent indentation upon removal.

Vibration Dampening & Anti-Loosening: Some models of anti-loosening design integrate Threadlocker patches or specialized groove structures to enhance seismic and anti-loosening performance. The inherent elasticity of the nylon tip acts as a micro-shock absorber. It dampens kinetic energy and operational vibrations, converting them into negligible heat rather than allowing the threads to gradually back out during dynamic machinery operation.

Installation & Reusability: Designed with a standard hex socket or slot driver, these screws are highly suitable for conventional tool operation as well as automated robotic assembly arms. The high-toughness nylon retains its structural memory, meaning the fastener can be tightened, loosened, and repositioned multiple times while still maintaining its protective and locking efficacy.

Rubber Tipped Set Screws Advantages

• Surface Preservation: The soft head design has protective contact characteristics, maintaining the pristine appearance and structural integrity of the workpiece. This directly translates to reduced scrap rates and lower rework costs during final assembly phases.

• Uniform Load Distribution: Achieves high precision clamping, uniform fastening, and balanced pressure application, effectively avoiding local deformation on thin-walled or hollow cylindrical components.

• Material-Specific Benefits: Nylon ends are highly resistant to industrial oil stains and provide excellent electrical insulation. Conversely, copper alloy (brass) ends are conductive and corrosion-resistant, making them ideal for grounding applications where a rigid, non-sparking contact is mandatory.

Comprehensive Supply Chain & Quality Assurance

For procurement professionals managing large-scale manufacturing operations, securing a reliable flow of precision components is just as critical as the product's physical attributes. We provide transparent, tiered pricing models and substantial bulk sourcing discounts designed to optimize your overall acquisition costs. Furthermore, our flexible inventory solutions, including Vendor-Managed Inventory (VMI) programs, ensure that your assembly lines never face unexpected downtime due to fastener shortages, guaranteeing stable and predictable lead times.

Every batch of our soft-tipped set screws is manufactured under strict adherence to ISO9001 international quality management systems. This rigorous oversight ensures absolute consistency in thread pitch accuracy, torque tolerance, and the mechanical bonding strength between the metal body and the polymer tip. Whether you require standard metric sizes or custom-engineered profiles with specific drive styles and surface treatments, our flexible manufacturing capabilities are fully equipped to deliver tailored, certified solutions based directly on your technical blueprints.
