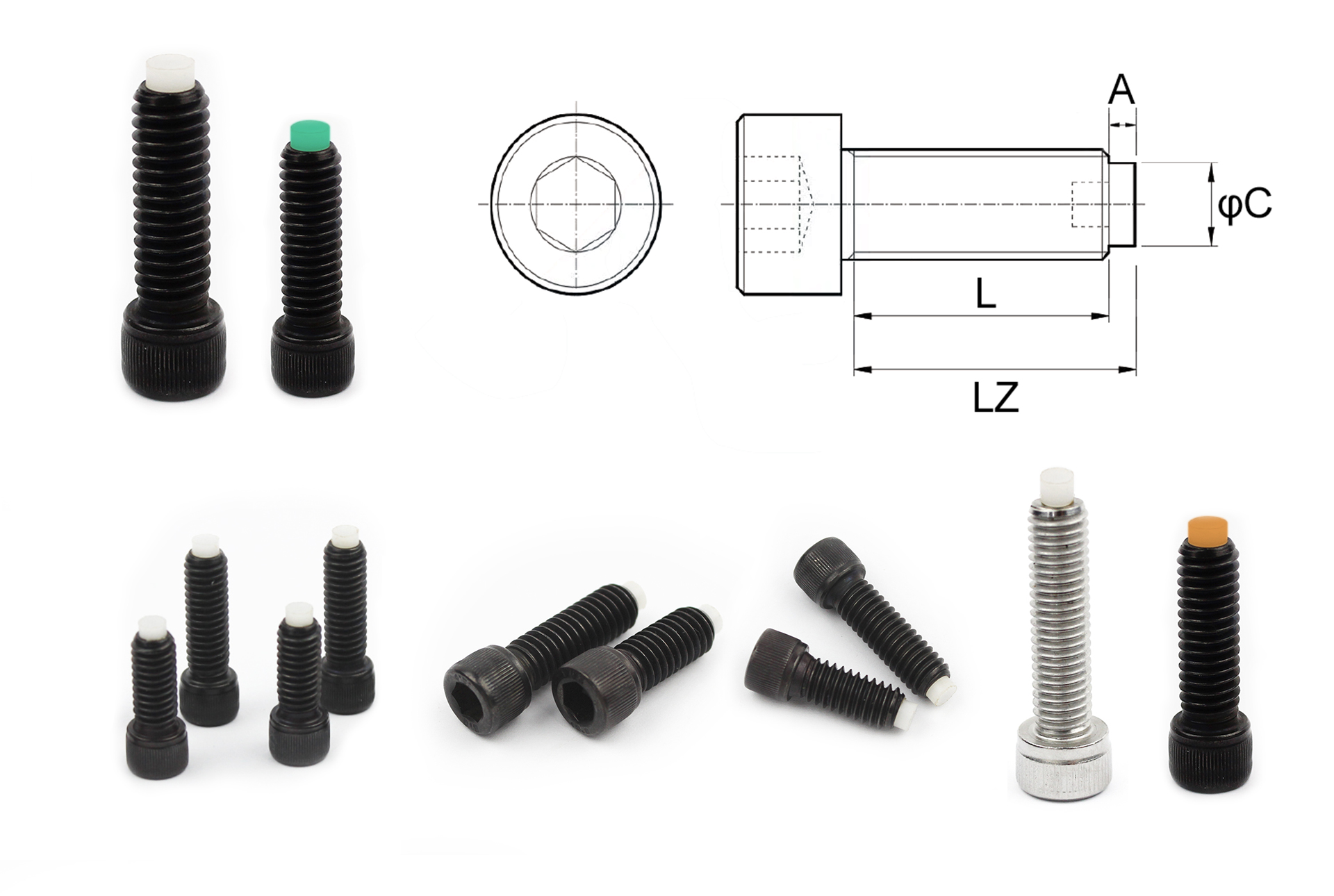

Metric Nylon Tip Socket Cap Screw With Hex Socket Design

Features of Metric Nylon Tip Socket Cap Screw

Soft Tip Set Screw Overview

Introduce the metric nylon tip socket cap screw as a highly specialized fastening solution engineered specifically for precision mechanics and delicate assemblies. These socket nylon tip set screws, often recognized as colorful soft tip set screws, are designed with an integrated polymer insert that creates a non-marring contact point. When handling these components, you can immediately feel the distinct, smooth texture of the nylon contrasting sharply with the cold, rigid steel body. This dual-material construction ensures that sensitive mating surfaces remain entirely unblemished even under extreme clamping forces. Whether securing a polished transmission shaft or locking a precisely calibrated dial in place, the compressive nature of the soft tip conforms slightly to the target geometry, providing an exceptionally secure grip without scoring, scratching, or permanently deforming the underlying component.

Round Tip Set Screw Introduction & Material Selection

Nylon Tip: The core architecture of this fastener relies on a meticulously embedded nylon material (Nylon PA66) tip. This specific polyamide acts as a micro-shock absorber to provide cushioning and outstanding anti loosening performance. For procurement teams navigating material selection, understanding these physical properties is vital. Nylon provides excellent electrical insulation and moderate wear resistance, making it ideal for electronics. Alternatively, POM (polyoxymethylene) tips offer higher rigidity for heavier mechanical loads, while brass tips deliver superior electrical conductivity and thermal resistance for specialized industrial environments.

Hex Socket: Designed with precisely broached hexagonal grooves and fully compatible with standard hex wrenches, it is incredibly easy to install in small spaces. This internal drive configuration allows technicians to apply exact torque specifications even in highly restricted spatial envelopes where external wrenches cannot reach.

The common types of Soft Tipped Set Screw are as follows, offering extensive configuration possibilities for diverse engineering needs:

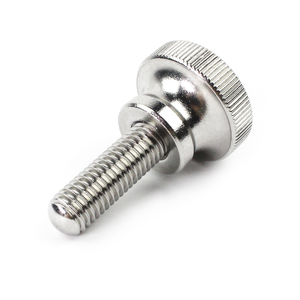

• Structural Variants: Set Screw with Nylon and Brass Tip, Socket Cap Head with Nylon and Brass Tip, Spade Thumb Screw with Nylon and Brass Tip

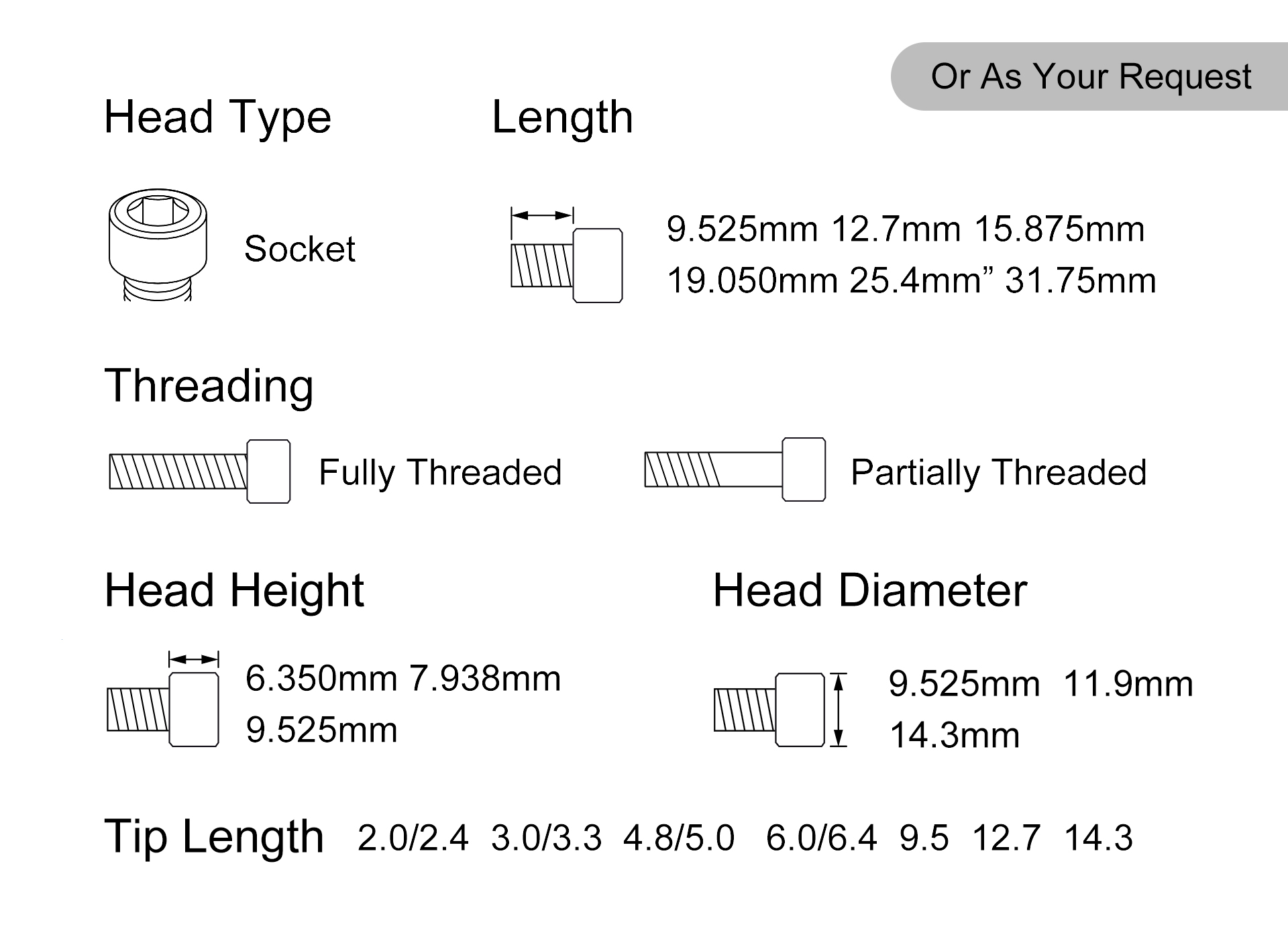

• Thread Size: Metric-M2-M24 or according to the product; Inch:#2/#3/#4/1/4inch/5/16inch or according to the product

• Screw Material: Carbon Steel (Black Oxide), Stainless Steel (Such as SS304/SS316), Brass or plastic (POM/PP/Nylon)

• Tip Material: Plastic, Nylon6/6, Brass, etc

• Tip Color: Nylon Tipped Green/Red/Blue, etc

• Screw Head Type: Flat Head, Pan Head, Round Head, etc.

• Screw Drive Style: Slotted Type, Phillips, Hex Socket, etc.

• Finish: Zinc-plated, Nickel-plated, Black Oxide, etc.

To combat severe environmental degradation, our comprehensive Finish options ensure exceptional environmental tolerance. Whether your assemblies are deployed in corrosive marine conditions, strictly regulated cleanrooms, or high-temperature manufacturing facilities, surface treatments like stainless steel passivation or zinc plating provide the necessary anti-oxidation properties to extend component lifespan.

Industrial Applications

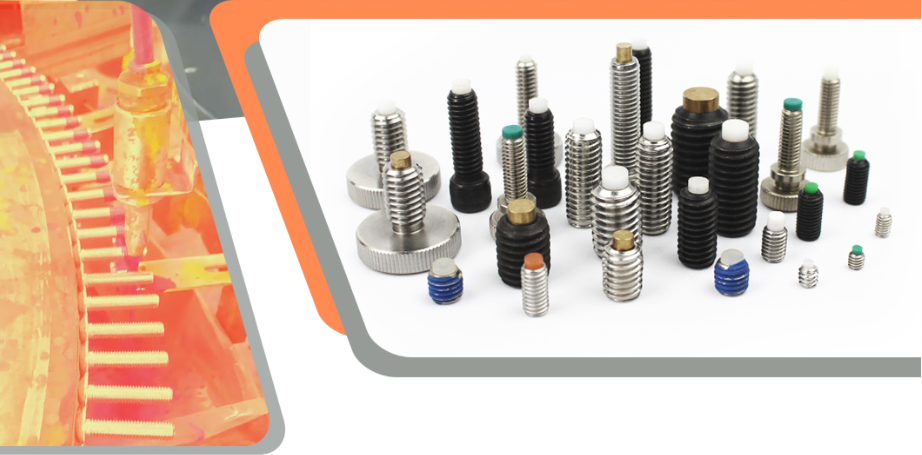

Application Focus: Furniture Assembly, PCB Board Fixation, Precision Instruments, etc.

These specialized fasteners are heavily utilized across demanding sectors requiring both secure locking and absolute surface protection. In premium Furniture Assembly, they prevent damage to delicate wood veneers or glass panels while maintaining essential structural rigidity. For PCB Board Fixation, the insulating properties of the nylon tip prevent electrical shorts and protect delicate copper traces from mechanical crushing. In Precision Instruments, such as optical mounts, laser housings, or medical devices, they allow for exacting micro-adjustments without marring the calibration slides. Furthermore, their non-destructive clamping ability makes them indispensable in robotics and automated manufacturing lines where components must be securely held yet frequently adjusted.

The Function of Socket Set Screw Nylon Tip

The primary function of this fastener is rooted in its material engineering: the soft end material significantly reduces wear on the surface of the workpiece. When compressed, the nylon tip delivers a moderate shock absorption effect, absorbing kinetic energy from operating machinery. Some models of this anti loosening design integrate a Threadlocker coating or specialized groove structure to further enhance seismic and anti loosening performance under extreme operational vibration. Crucially, these screws support excellent reusability, allowing for multiple assembly and disassembly cycles without destroying the internal thread structure of the mating part. They utilize a standard hex socket or slot driver, making them highly suitable for conventional tool operation. For highly specialized requirements, we also offer custom structural capabilities, including pre-drilled heads for safety wire installation, pre-applied Nylon Patch thread lockers, and custom venting holes tailored for vacuum equipment.

Rubber Tipped Set Screws Advantage

The distinct soft head design inherently possesses protective contact characteristics, meticulously maintaining the appearance and structural integrity of the target workpiece. This allows for high precision clamping, ensuring uniform fastening and even pressure application across the contact zone, thereby avoiding local deformation or stress fractures on thin-walled tubes. The material properties are highly advantageous: nylon ends are inherently resistant to oil stains and provide excellent insulation, while copper alloy ends are highly conductive and corrosion-resistant. Beyond the physical attributes, our manufacturing process adheres strictly to rigorous quality control standards. We operate under the ISO9001 quality management system, ensuring that every batch meets stringent industrial specifications. Purchasers can request comprehensive documentation, including Material Test Reports (MTRs), Certificates of Conformance (C of C), and full batch traceability files, guaranteeing absolute confidence in product reliability.

How to install Nylon Tip Socket Cap Screw correctly?

Proper installation is critical to maximizing the holding power and protective benefits of these fasteners. Follow these precise steps:

1. Drill holes on the target material (with a diameter slightly smaller than the screw diameter to accommodate the specific thread pitch). Tap the hole to create clean internal threads.

2. Carefully hold the screw and manually screw it into the pre cut threaded hole until the thread "clamps" and begins to automatically pull in, ensuring there is no cross-threading which could strip the internal walls.

3. Use an Allen wrench that exactly matches the size of the screw socket, insert it fully into the drive slot to prevent rounding out the hex profile, and rotate it clockwise until the screw head is flush or slightly below the installation surface (countersunk type needs to be fully embedded). Avoid over-torquing, as the nylon tip is designed to compress and lock with moderate pressure.

Comprehensive Supply Chain & Inventory Management

To support large-scale manufacturing and continuous assembly operations, we provide resilient supply chain solutions tailored specifically for volume purchasers. Recognizing the critical nature of component availability, our services include flexible tiered pricing structures for bulk procurement, significantly reducing the overall cost of acquisition. We actively implement Vendor-Managed Inventory (VMI) programs designed to streamline your logistics and ensure that your production lines never face downtime due to fastener shortages. By maintaining strategic stock levels and offering adaptable production lead times, we provide a highly stable and responsive supply channel. This comprehensive approach to inventory management empowers enterprises to optimize their warehousing costs while maintaining the agility needed to respond to fluctuating market demands.
