Spring Plunger with Flange is a ball head spring plunger with a flange mounting seat, and its ball head surface is covered with a nylon patching layer, which has dual functions of positioning accuracy and workpiece protection.

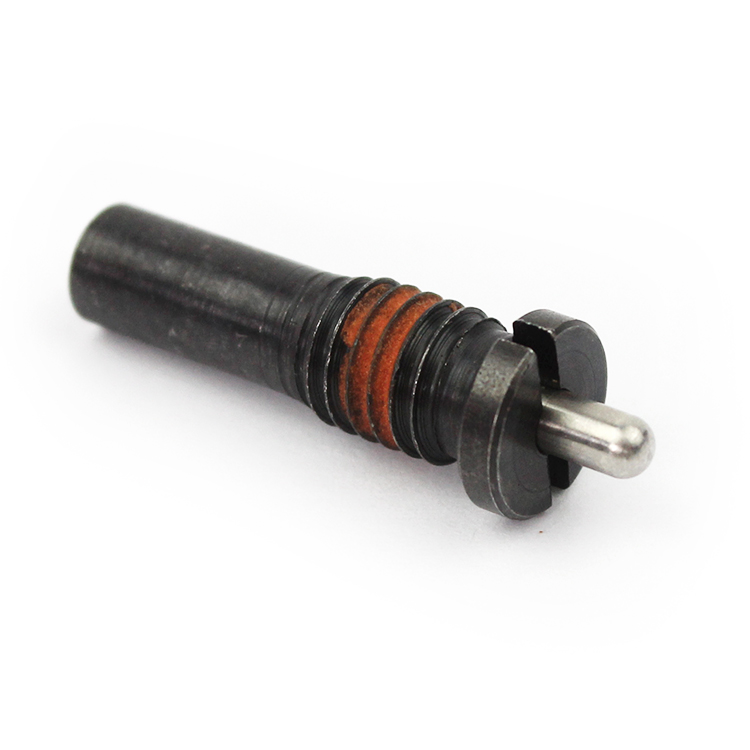

Ball Spring Plunger with Flange
PDM
| Quantity: | |
|---|---|

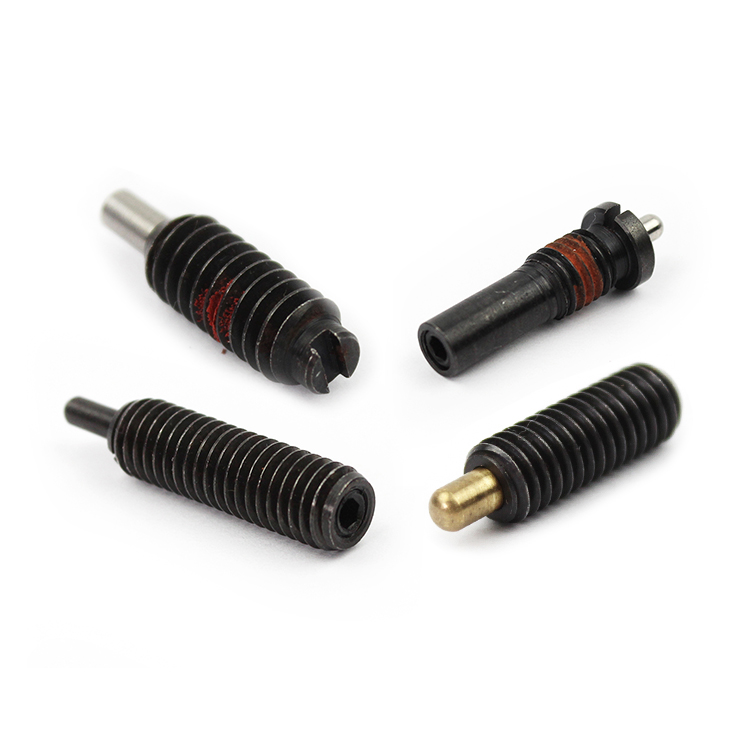

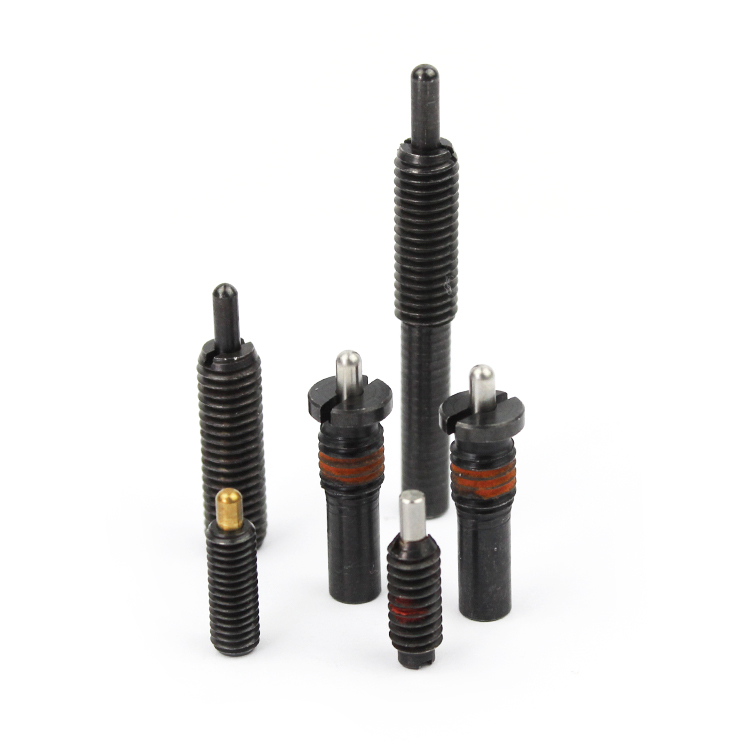

Features of Ball Spring Plunger with Flange
Ball Spring Plunger with Flange Title:
Push Fit Ball Plunger Threaded Flange Spring Plunger with Nylon Patching
Ball Head Plunger Core Feature:

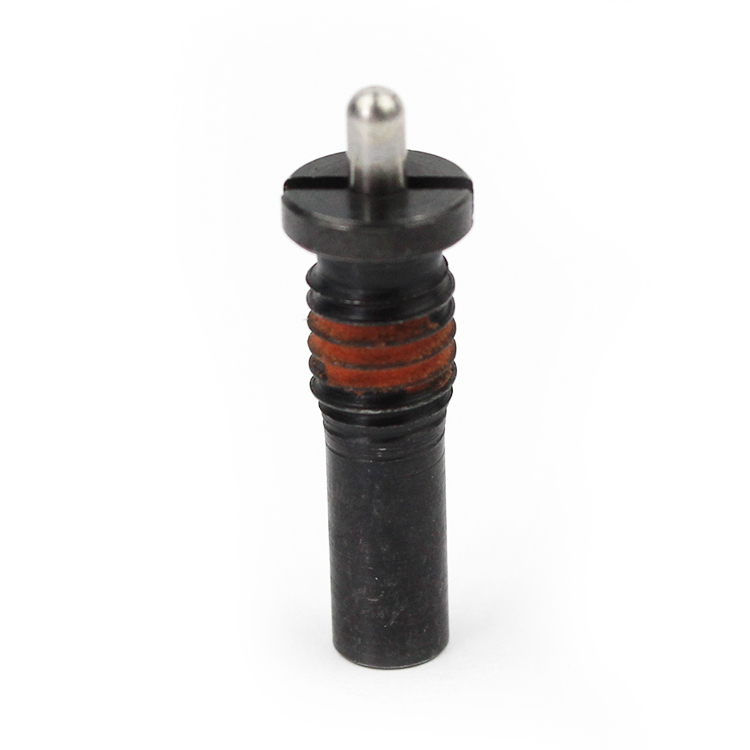

Flange Design
Integrated annular flange structure, tightly attached to the substrate surface through threaded installation, disperses vibration stress and prevents loosening.
Adapt to standard metric threads (such as M6/M8), with a flange diameter larger than the threaded section to enhance stability.

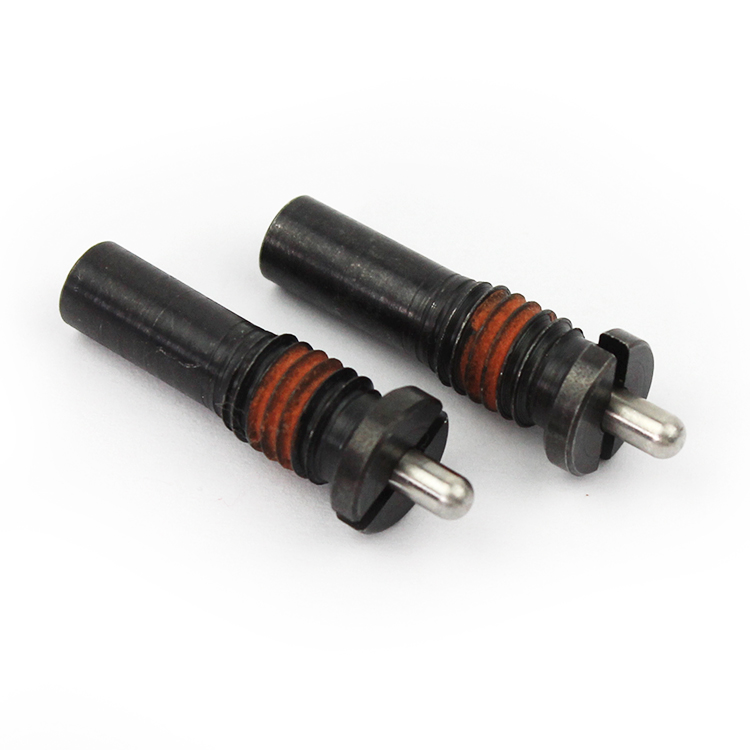

Nylon Patching Layer
Engineering nylon layer (usually made of PA66 or POM material) covering the surface of the metal ball head.
effect:
Avoid scratching the surface of precision workpieces (such as glass, anodized aluminum) with metal ball heads;
Reduce motion noise, suitable for medical/optical equipment;
Spring: Stainless steel springs provide constant elastic force;
Body Material: Carbon Steel (Black Oxide)
Ball Material: 440C Stainless Steel
Ball Heat Treatment: Hardened
Spring Material: Stainless Steel
Feature: With Nylon Patching
Thread Size:M3,M4,M5,M6,M8,M10 or As your Request
Flange Diameter:5mm,6mm,7mm,8mm or Customzied
Ball Diameter:1.1mm,1.6mm,2.0mm,2.5mm or Customized
Ball Exposed Height: 1.5mm,3mm,5mm,10mm or Customized
Slotted Height: 1.5mm,1.8mm,2.0mm,2.5mm or Customized

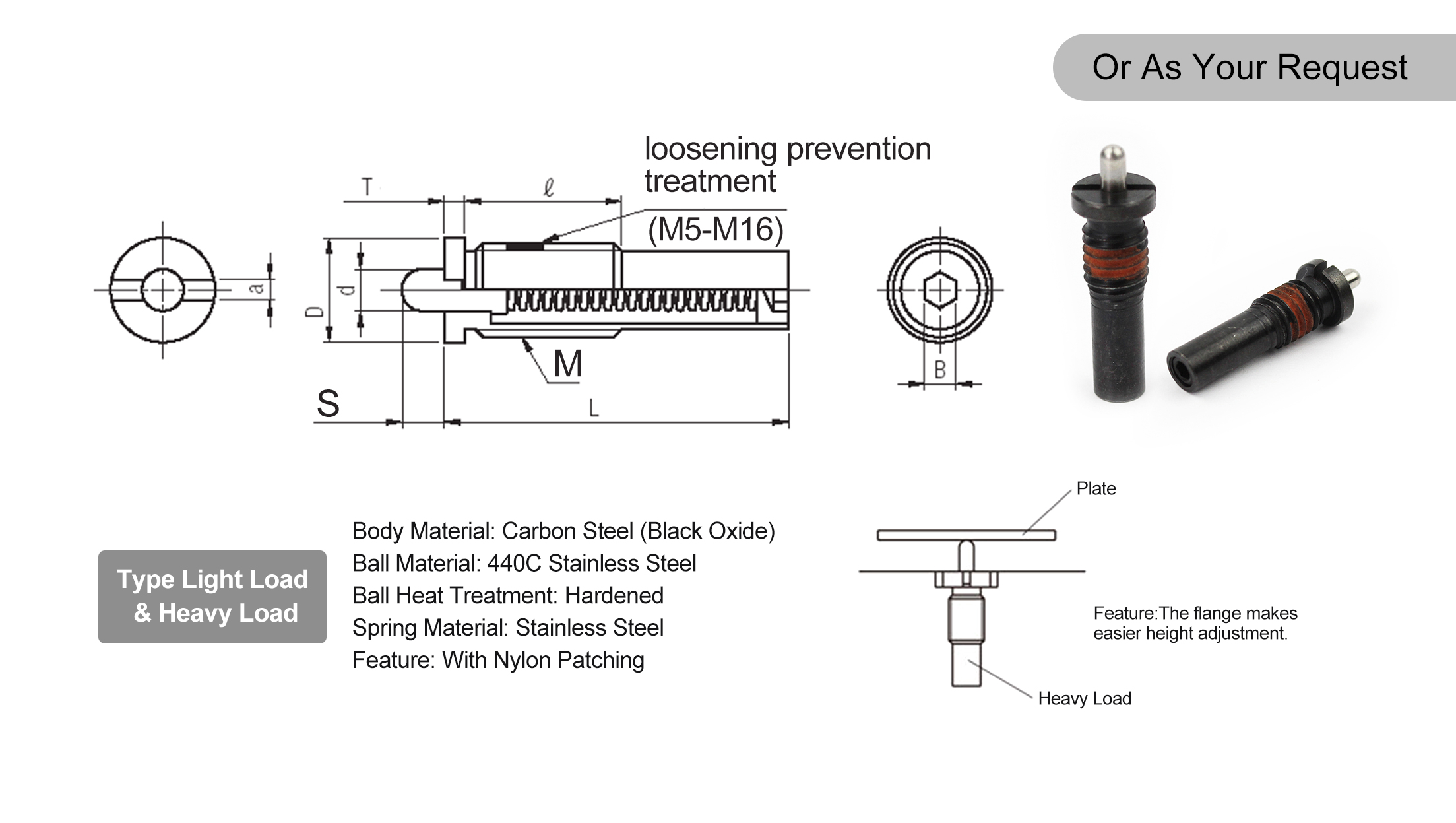

| M | d(mm) | S(mm) | D(mm) | T(mm) | e(mm) | L(mm) | B(mm) | a(mm) |
| 3*0.5 | 1.1 | 1.5 | 5 | 1.5 | 5 | 10 | 0.9 | 0.5 |
| 3*0.5 | 1.1 | 3 | 5 | 1.5 | 5 | 15 | 0.9 | 0.5 |
| 4*0.7 | 1.6 | 2 | 6 | 1.8 | 6 | 15 | 1.3 | 0.7 |
| 4*0.7 | 1.6 | 4 | 6 | 1.8 | 6 | 24 | 1.3 | 0.7 |
| 5*0.8 | 2.0 | 3 | 7 | 2.0 | 8 | 20 | 1.5 | 1.2 |
| 5*0.8 | 2.0 | 5 | 7 | 2.0 | 8 | 27 | 1.5 | 1.2 |
| 6*1.0 | 2.5 | 3 | 8 | 2.5 | 9 | 25 | 2 | 1.5 |
| 6*1.0 | 2.5 | 5 | 8 | 2.5 | 9 | 30 | 2 | 1.5 |
| 8*1.25 | 3.1 | 3 | 10 | 2.5 | 12 | 25 | 2.5 | 1.5 |
| 8*1.25 | 3.1 | 5 | 10 | 2.5 | 12 | 27 | 2.5 | 1.5 |
| 10*1.5 | 3.8 | 5 | 12 | 2.5 | 15 | 30 | 3 | 1.5 |
| 10*1.5 | 3.8 | 10 | 12 | 2.5 | 15 | 43 | 3 | 1.5 |
| 12*1.75 | 5.5 | 5 | 14 | 3.0 | 20 | 30 | 4 | 2.0 |
| 12*1.75 | 5.5 | 10 | 14 | 3.0 | 20 | 43 | 4 | 2.0 |
| 12*1.75 | 5.5 | 15 | 14 | 3.0 | 20 | 51 | 4 | 2.0 |
| 16*2.0 | 8.0 | 10 | 18 | 3.0 | 25 | 60 | 5 | 2.0 |
| 16*2.0 | 8.0 | 15 | 18 | 3.0 | 25 | 60 | 5 | 2.0 |
| 16*2.0 | 8.0 | 20 | 18 | 3.0 | 25 | 85 | 5 | 2.0 |
| 16*2.0 | 8.0 | 30 | 18 | 3.0 | 25 | 125 | 5 | 2.0 |
| 16*2.0 | 8.0 | 40 | 18 | 3.0 | 25 | 125 | 5 | 2.0 |

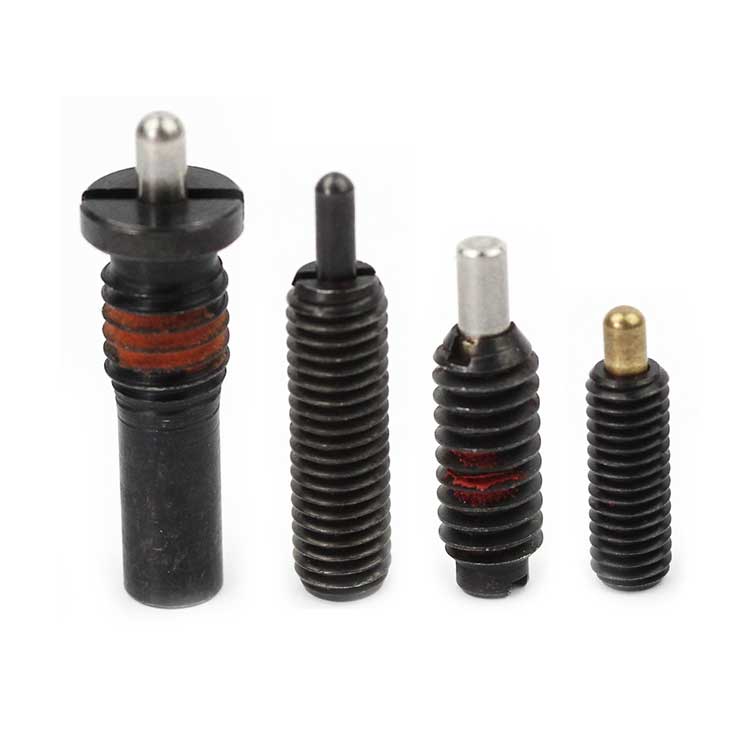

Customization Services
Material Combinations: Flexible selection of body, ball, and spring materials；
Dimensions & Parameters: Adjustable body diameter, ball size, and spring force to meet non-standard requirements
Mold positioning, food machinery, electronic equipment assembly, medical device cushioning, etc.
Ball Plunger Spring Loaded Key points for installation and maintenance
Manual pre positioning
Insert the plunger vertically into the base hole and rotate clockwise until the flange bottom fully contacts the base;
Use an open-end wrench to clamp the flange hexagon and tighten the bolts in three diagonal steps;
