GN616.2 is a threaded spring plunger with a flange, which combines threaded fixation with flange anti loosening design to provide high anti vibration elastic positioning function.
GN616.2 Threaded Flange Ball Spring Plunger
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of GN616.2 Threaded Flange Ball Spring Plunger
GN616.2 Threaded Flange Spring Plunger Title:
Push Fit Ball Plunger Threaded Flange Spring Plunger GN616.2
Ball Head Plunger Core Feature:
Flange structure: The annular flange is tightly attached to the installation surface to prevent the plunger from being too deep or loose due to vibration or impact.
Spring loading mechanism: Built in spiral spring drives the ball or plunger head to expand and contract, achieving repeated positioning and buffering.
Main material:
Shell: Carbon steel treated with blackening or AISI 303/316 stainless steel.
Plunger Tip:
Steel bolt head:Plastic plug (POM polyoxymethylene)
Spring components:AISI 631 stainless steel spring, available in standard or high load options.

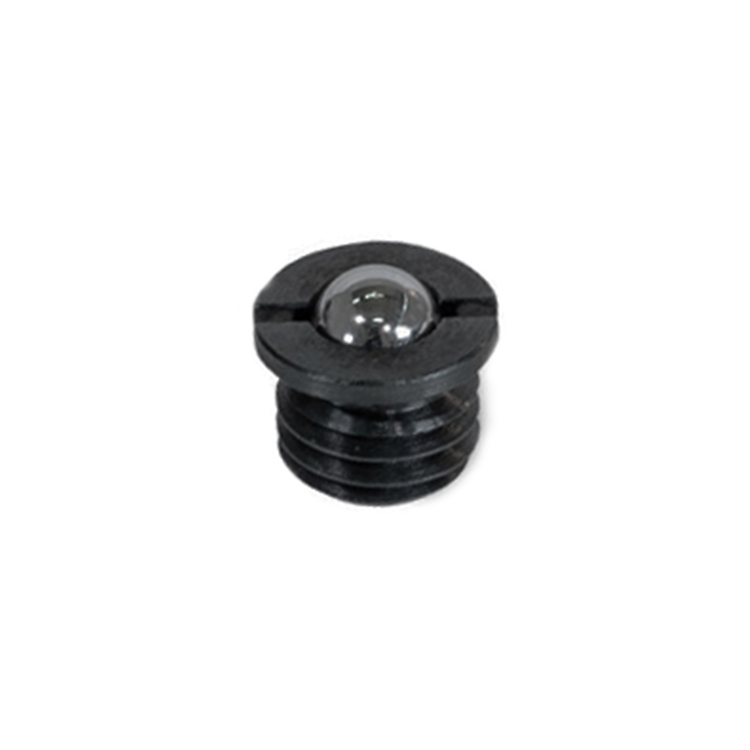

Type01:Housing steel(Black Oxide), ball stainless steel (AISI 303, hardened)

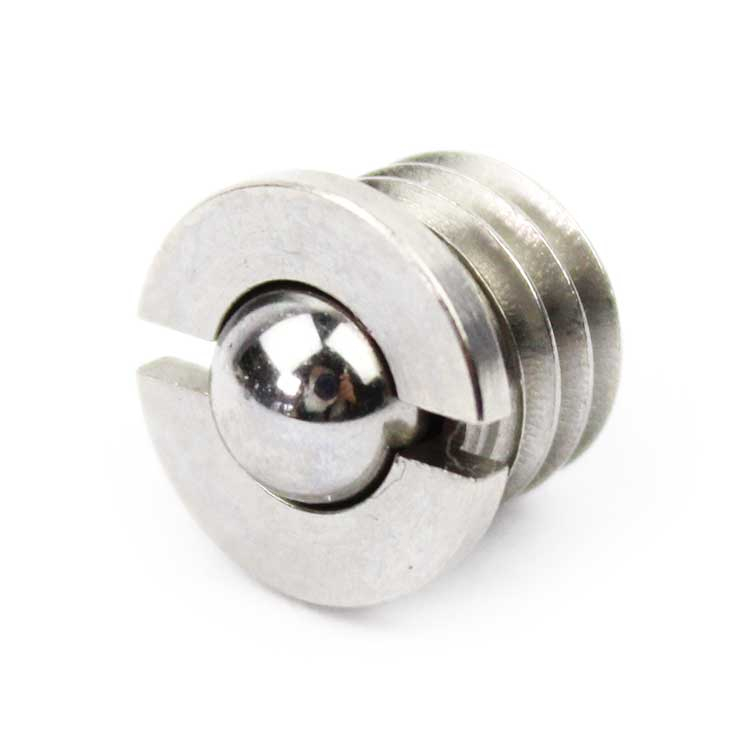

Type02:Housing stainless steel(AISI 303), ball stainless steel (AISI 303, hardened)

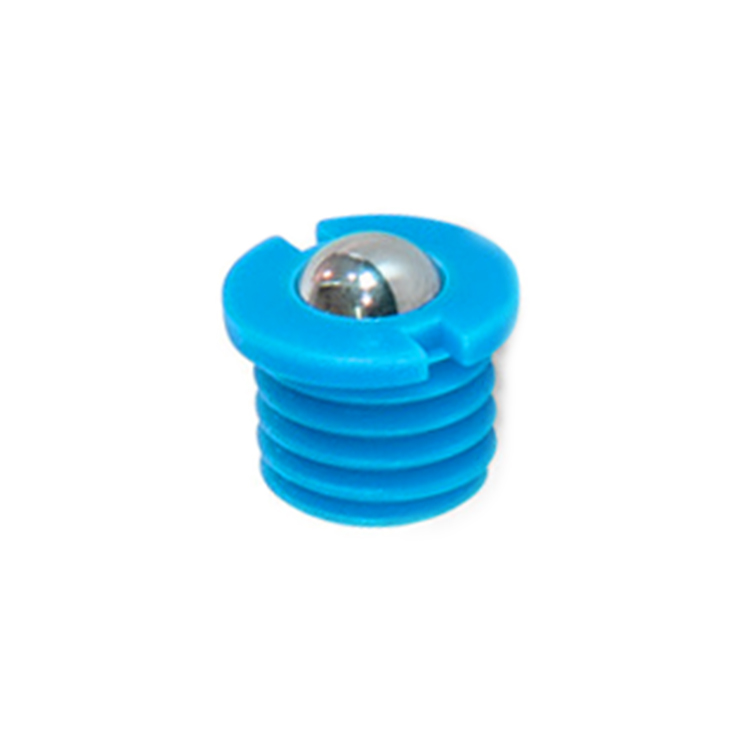

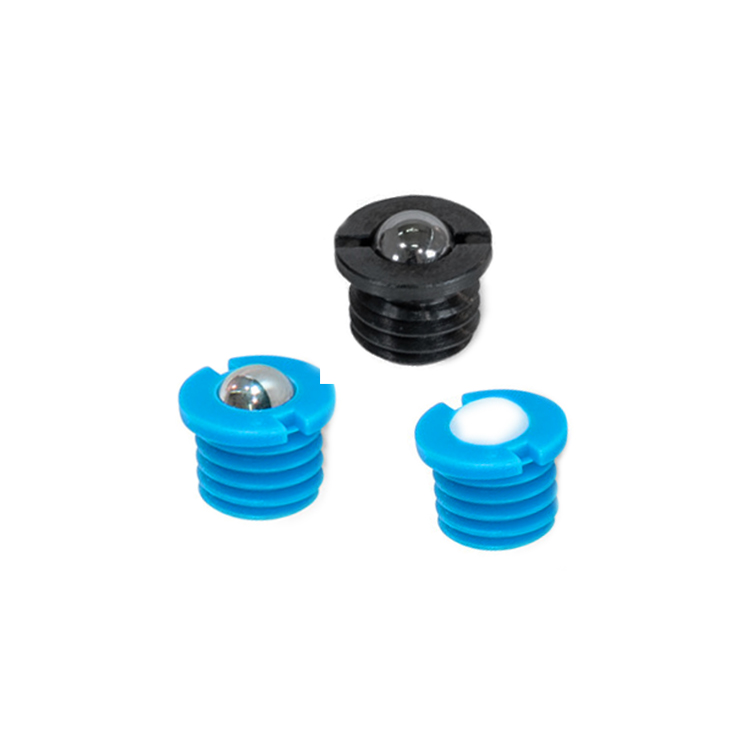

Type03:Housing Plastic,Blue,polyacetal (POM), ball stainless steel (AISI 420C, hardened)

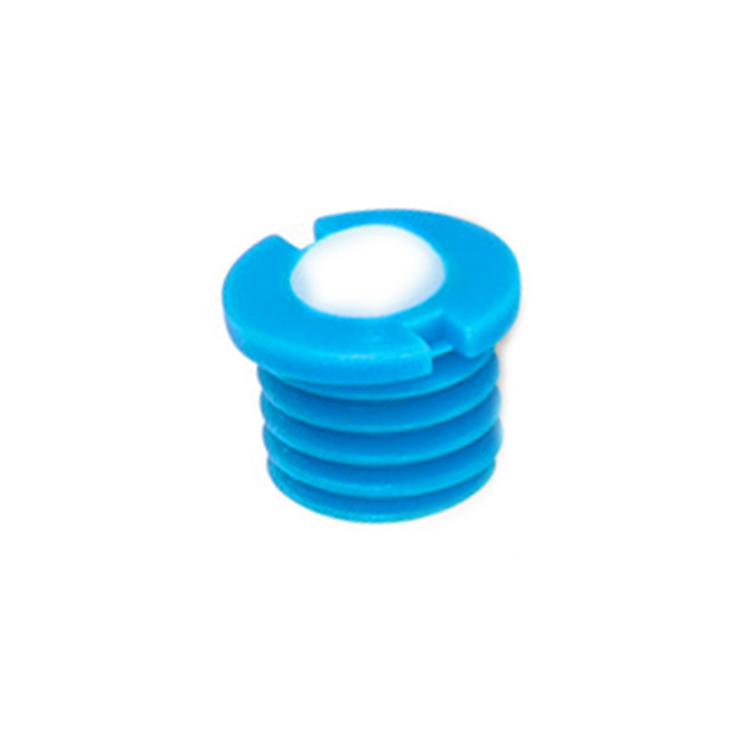

Type04:Housing plastic,Blue,polyacetal (POM), ball plastic White,polyacetal (POM)
Coarse Thread Size:M5,M6,M8,M10,M12,M16 or As your Request
Flange Diameter:7mm,8mm,10mm,12mm or Customzied
Ball Diameter:3mm,4mm,5mm,6.35mm or Customized
Ball Exposed Height: 0.8mm,1.0mm,1.6mm,1.9mm or Customized
Slotted Height: 0.8mm,1.0mm,1.5mm,2.0mm or Customized
Main Load (N): 1.3N-13.0N, Max.Load(N):6.4N-25.5N

| M | D(mm) | d(mm) | L(mm) | S(mm) | A(mm) | Min. Load(N) | Max. Load(N) |
| 5 | 7 | 3 | 5 | 0.8 | 0.8 | 1.3 | 6.4 |
| 6 | 8 | 4 | 6 | 1.0 | 1.0 | 2.7 | 8.0 |
| 8 | 10 | 5 | 7 | 1.6 | 1.5 | 1.3 | 10.2 |
| 10 | 12 | 6.35 | 9 | 1.9 | 1.5 | 6.1 | 17.2 |
| 12 | 14 | 7.94 | 11.5 | 2.4 | 1.5 | 2.1 | 18.8 |
| 16 | 18 | 9.53 | 16 | 3.2 | 2.0 | 13.0 | 25.5 |
Customization Services
Material Combinations: Flexible selection of body, ball, and spring materials;
Dimensions & Parameters: Adjustable body diameter, ball size, and spring force to meet non-standard requirements
Precision positioning of molds, guidance of automation equipment, anti loosening of heavy equipment, etc;

Ball Plunger Spring Loaded Key points for installation and maintenance
Installation steps:
Manual pre tightening
Insert the plunger vertically into the threaded hole and rotate clockwise until the flange bottom is completely in contact with the base.
Clean the threaded hole → manually screw it into the flange tight surface → fix the flange with a wrench to avoid deformation caused by excessive tightening.
Notes: Installation of Plastic Bolt Head (K-Type):
When the plug is made of POM material, avoid contact with acidic cleaning agents;
