Double Ball Plungers is a bi-directional elastic positioning component equipped with extendable ball heads at both ends, which achieve bi-directional buffering and precise positioning functions through built-in springs. It is suitable for scenarios where two workpieces need to be fixed or aligned simultaneously.

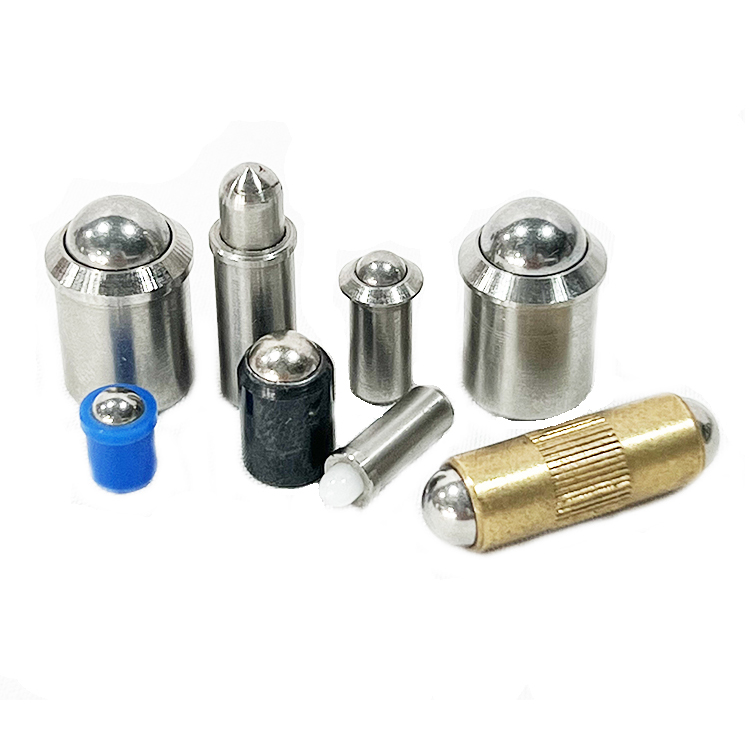

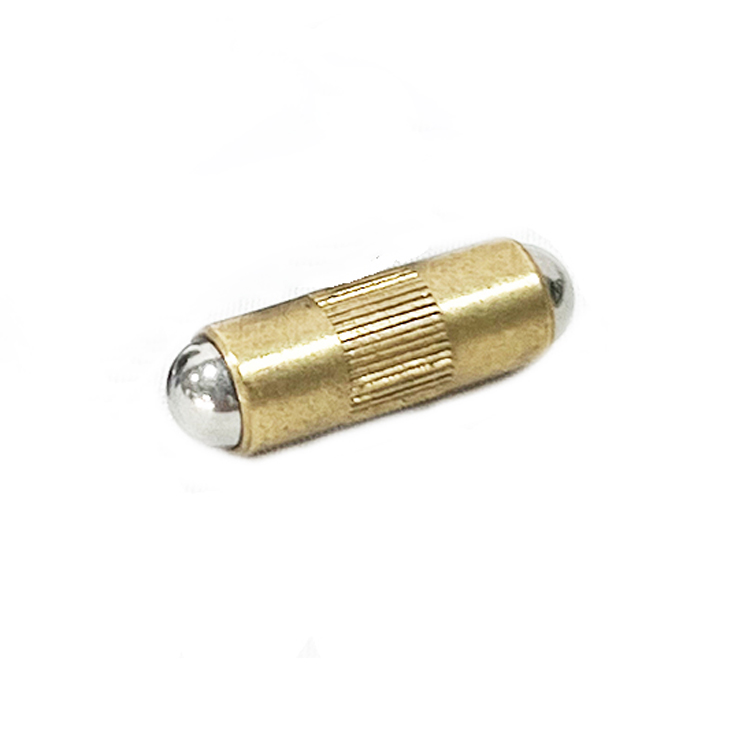

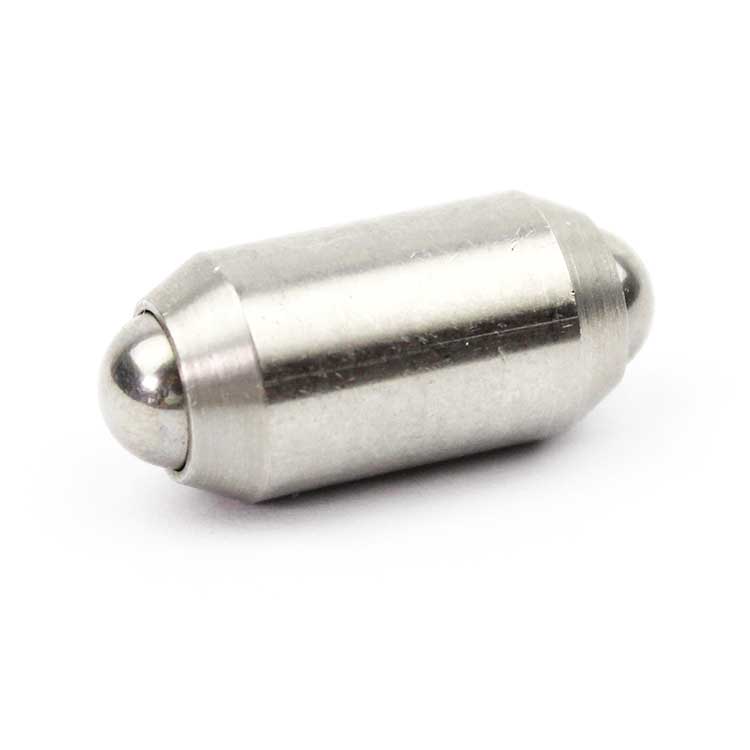

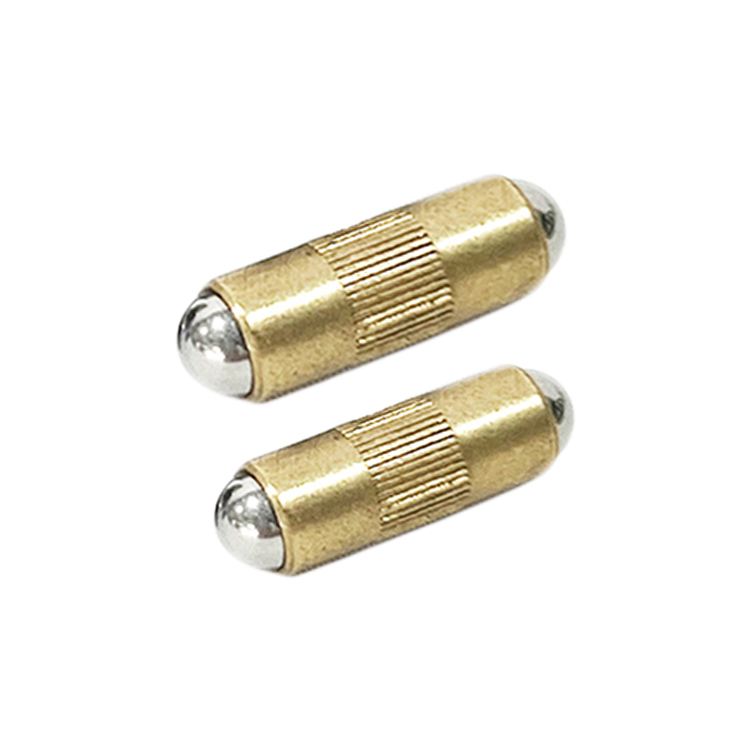

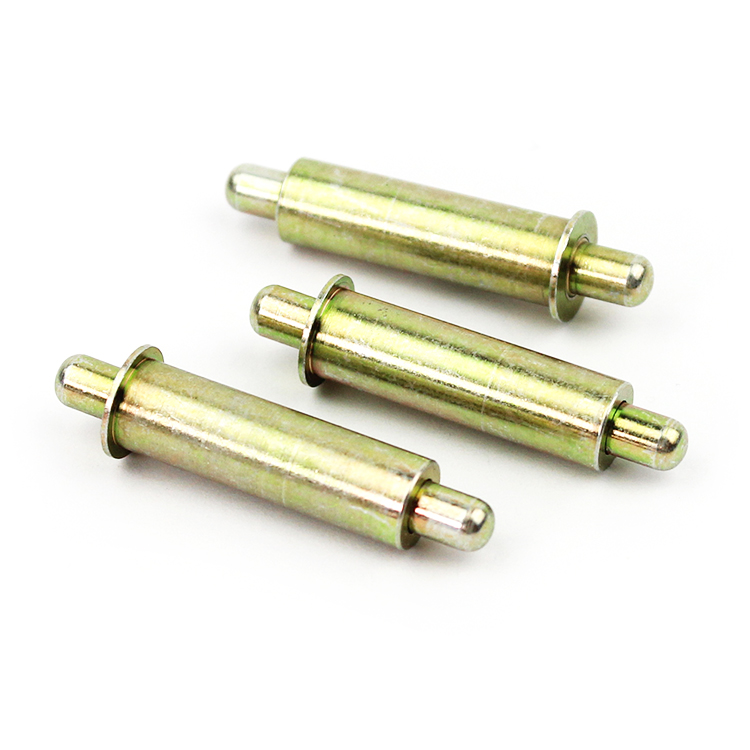

GN614.2 Double End Ball Plungers
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of GN614.2 Double End Ball Plungers
GN614.2 Double End Ball Plungers Title:
GN614.2 Double End Ball Plunger Stainless Steel Ball Spring Plunger
GN614.2 Ball Head Plunger Introduction:
Housing
Material: Copper (with excellent conductivity and corrosion resistance)
Ball Tip
Double end design: Both ends are equipped with AISI 420C stainless steel hardened ball bearings, which are wear-resistant and have strong pressure bearing capacity.
Spring mechanism: AISI 631 stainless steel springs are used internally to provide stable elasticity.
Body Material: Brass
Ball Material: Stainless steel AISI 420C Hardened
Pressure spring: Stainless steel AISI 631
Notes: Customized design on request.
Surface Finish:Smooth or Plaining,etc.
Housing Diameter:2.5mm、3.0mm、4.0mm、5.0mm、6.0mm、7.0mm、8.0mmor Customzied
Ball Diameter:2.0mm,2.5mm,3.0mm or Customized
Total Length:4-16mm or Customized (Corresponding shell diameter)
Installation Type:Press Fit
Spring Pressure:F1 [N~](1.3N-6.0N) & F2[N~](2.5N-15N) or according to the different demand of customers.

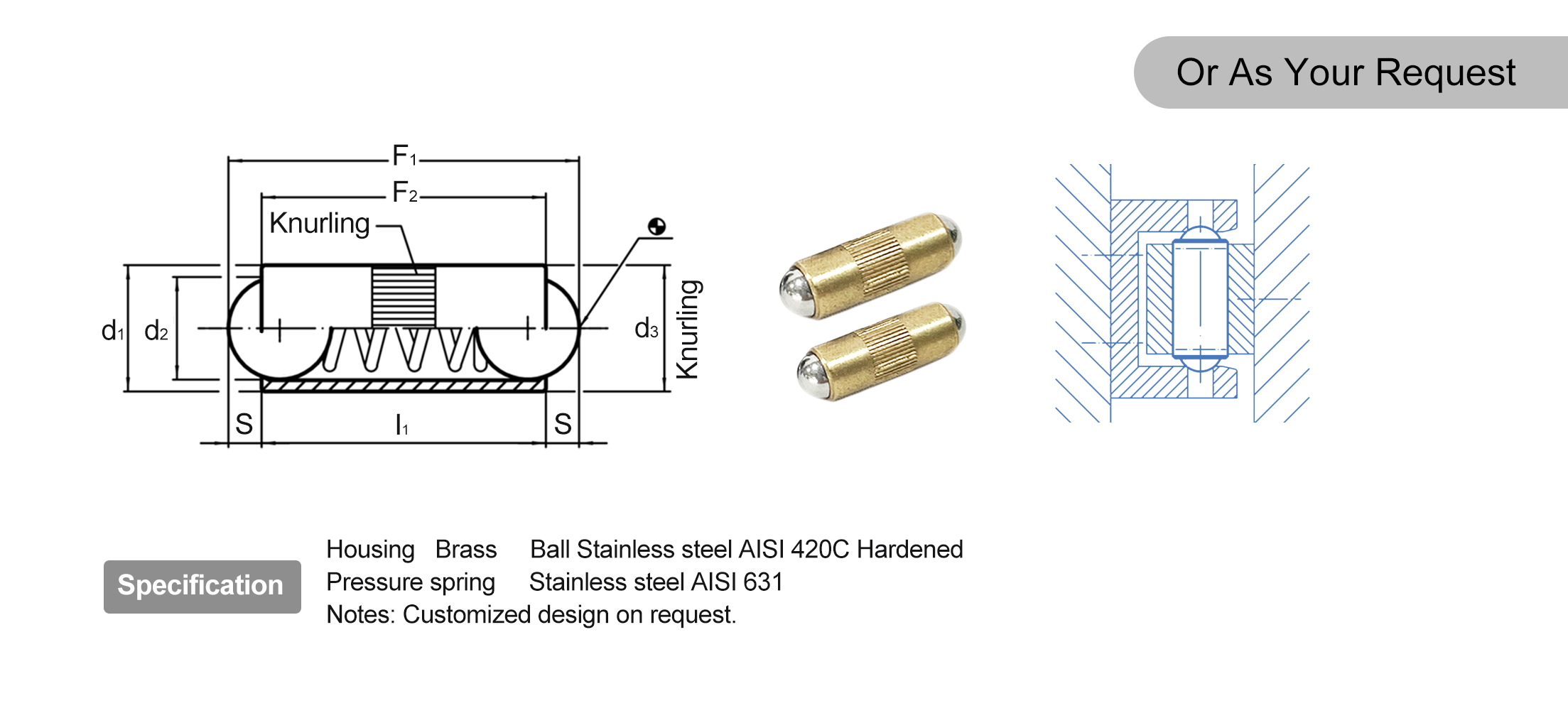

| Dimensions(mm) | Stroke | Spring Load | ||||
| d1 | d2 | d3 | I1 | S(mm) | F1 [N~] | F2 [N~] |
| 2.5 | 2.0 | 2.52 | 5.3 | 0.65 | 1.3 | 2.5 |
| 3.0 | 2.5 | 3.02 | 7.3 | 0.80 | 2.0 | 4.5 |
| 4.0 | 3.0 | 4.03 | 9.0 | 0.90 | 2.5 | 7.5 |
| 5.0 | 4.0 | 5.03 | 10.8 | 1.20 | 3.5 | 8.0 |
| 6.0 | 5.0 | 6.03 | 12.6 | 1.60 | 3.5 | 10.5 |
| 7.0 | 6.0 | 7.03 | 14.0 | 2.00 | 4.0 | 12.0 |
| 8.0 | 6.5 | 8.03 | 18.0 | 2.10 | 6.0 | 15.0 |
Customization Services
Material Combinations: Flexible selection of body, ball, and spring materials;
Dimensions & Parameters: Adjustable body diameter, ball size, and spring force to meet non-standard requirements
Applications:
Double directional locking of molds, precise fixture alignment, automated equipment linkage mechanism, etc.

Advatage of Spring Ball Plunger :
Load capacity: standard spring load, capable of withstanding bidirectional pressure;
Bidirectional positioning: The ball heads at both ends can independently expand and contract, and can be simultaneously embedded in grooves or holes of two workpieces to achieve interlocking;
Anti loosening buffer: The spring absorbs vibration and impact to prevent workpiece displacement;
Installation method
Press Fit: Press fit is used to press into the holes of the substrate through interference fit, suitable for thick walled metal substrates.
