GN615 Threaded Ball Plungers
PDM
| Quantity: | |
|---|---|

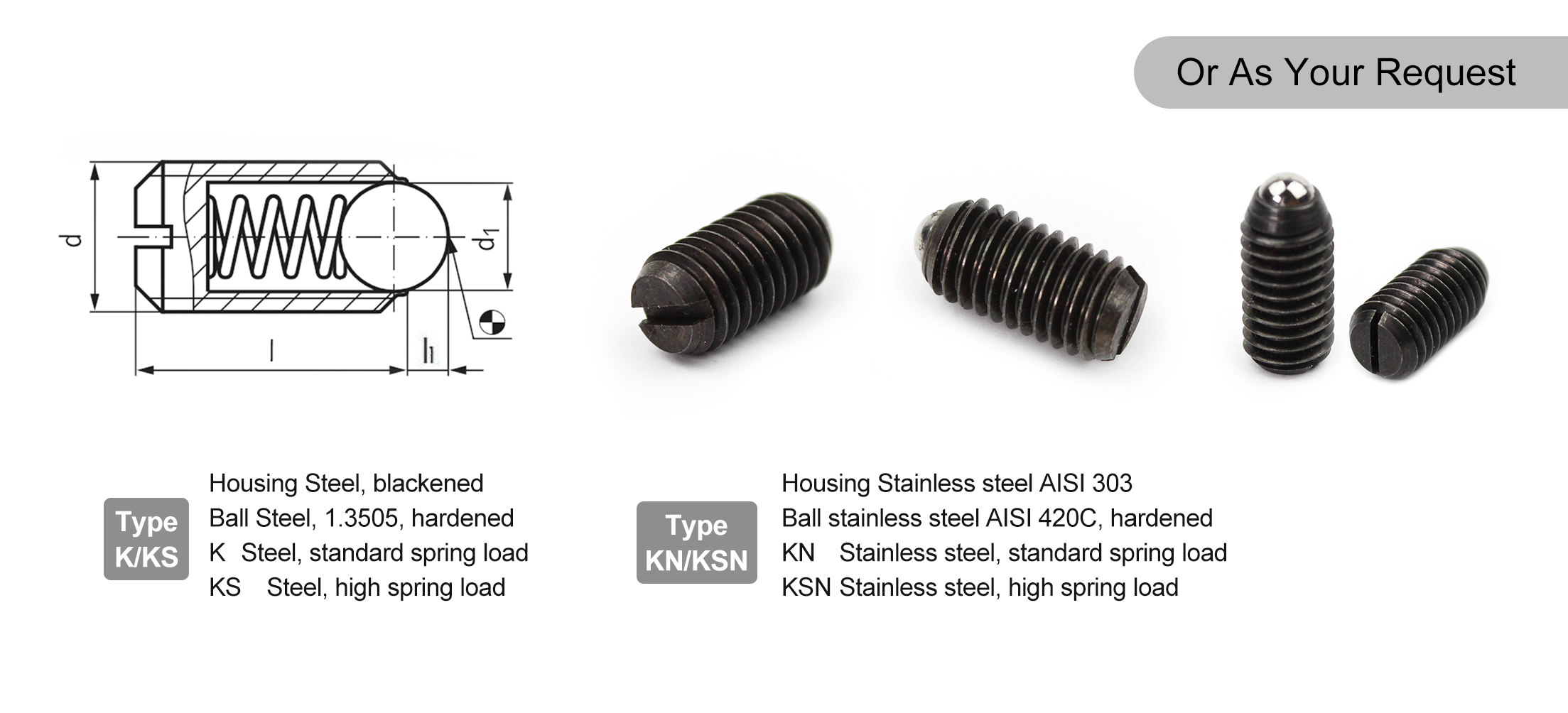

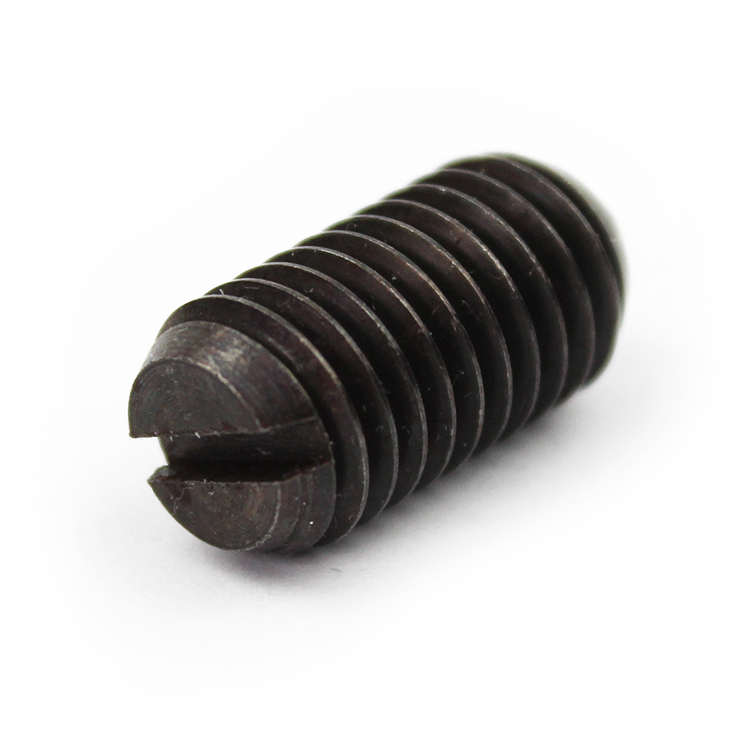

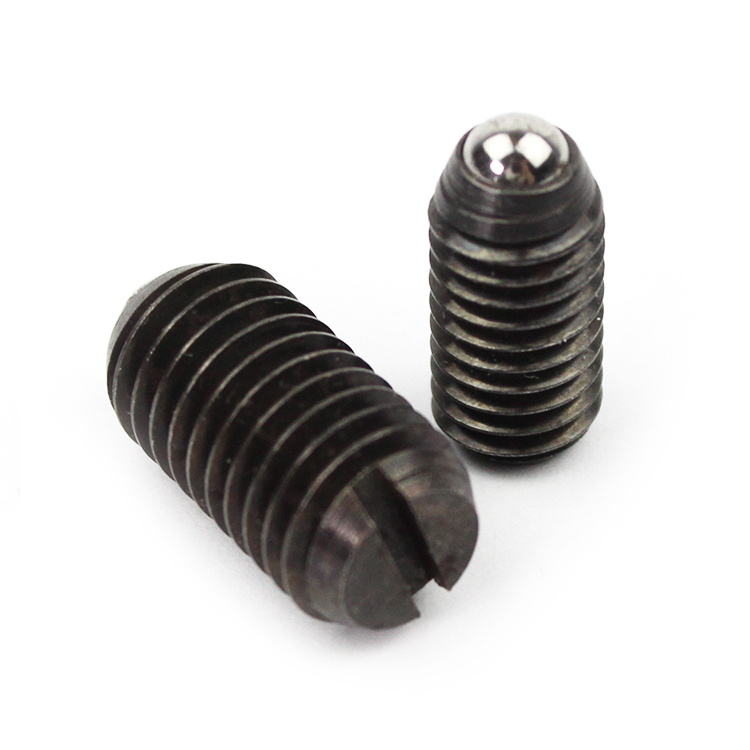

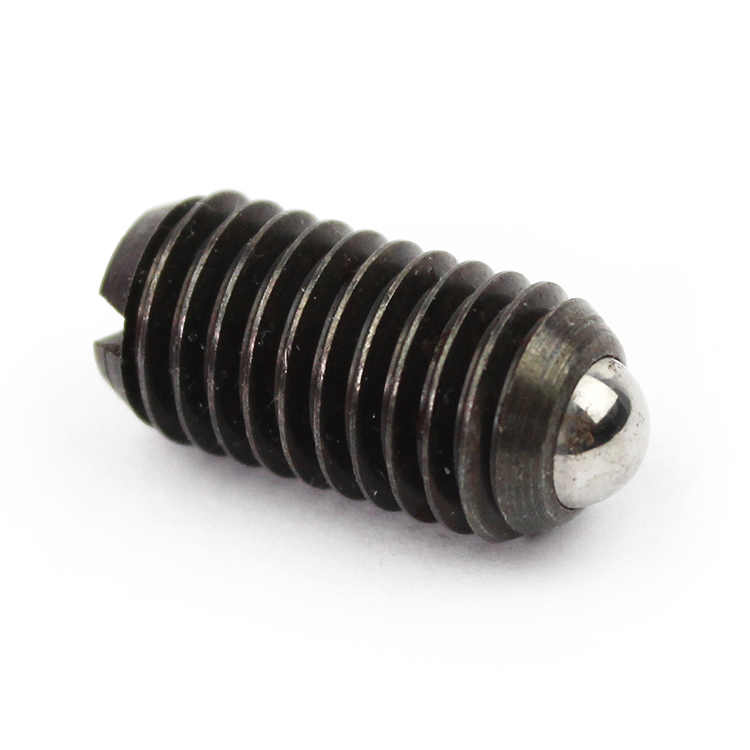

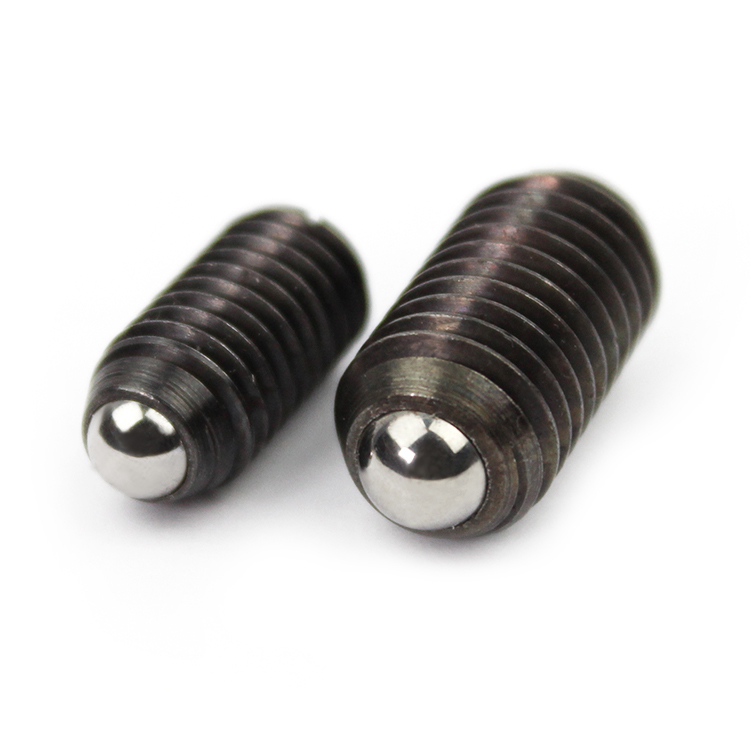

Features of GN615 Threaded Ball Plungers
GN615 Threaded Ball Plungers Title:
Slotted Ball Spring Plunger SUS304 GN615 Ball Screw Plunger
GN615 Ball Plunger Screw Introduction:
GN615 Spring Plungers are threaded ball spring plungers,Body can be made from carbon steel with black oxide finish or stainless steel.
Thread Size:Metric Thread (M3/M4/M6 or Customize special sizes)

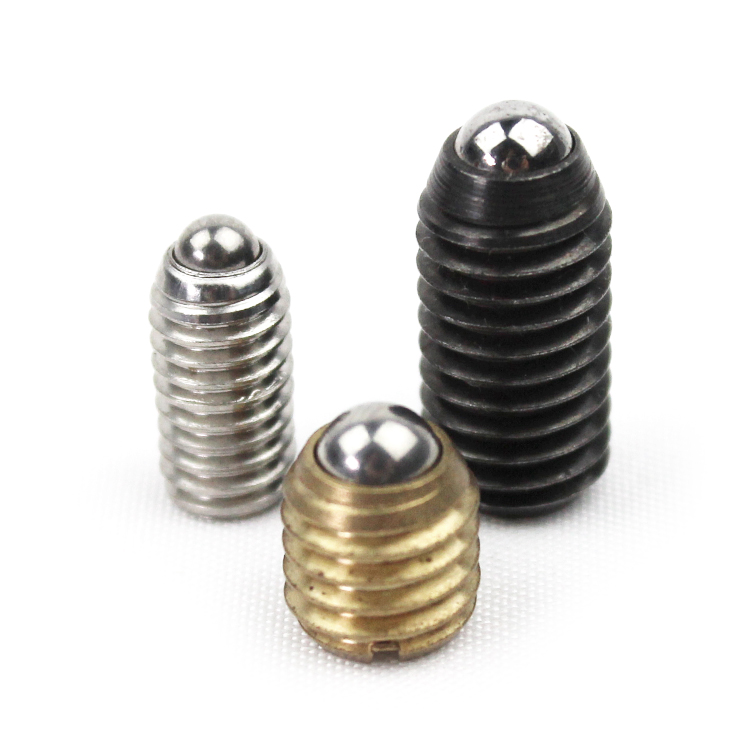

Ball Material:Steel (surface hardening treatment) or stainless steel (corrosion-resistant)
Surface treatment: Provide nickel plating and black oxide or Plaining
Thread locking:Nylon Patching or Polyamide Blue Coating,etc.
Spring Type:
Standard Spring-GN615-K K:Steel, standard spring load
Hevay-duty Spring-GN615-KS KS:Steel, high spring load
Supplement:
KN:Stainless Steel, standard spring load KSN:Stainless Steel, high spring load
Installation Method: Thread into the installation hole
| Description | d | d1 | I±0.1 | I1 | Preload[N~] | Max.load[N~] |
| GN615-M3-K | M3 | 1.5 | 7 | 0.4 | 3 | 4.5 |
| GN615-M4-K | M4 | 2.5 | 9 | 0.8 | 6 | 14.5 |
| GN615-M5-K | M5 | 3 | 12 | 0.9 | 8 | 14 |
| GN615-M6-K | M6 | 3.5 | 14 | 1 | 11 | 18 |
| GN615-M8-K | M8 | 4.5 | 16 | 1.5 | 18 | 31 |
| GN615-M10-K | M10 | 6 | 19 | 2 | 24 | 45 |
| GN615-M12-K | M12 | 8 | 22 | 2.5 | 26 | 49 |
| GN615-M16-K | M16 | 10 | 24 | 3.5 | 41 | 86 |
| GN615-M20-K | M20 | 12 | 30 | 4.5 | 56 | 111 |
| GN615-M24-K | M24 | 15 | 34 | 5.5 | 81 | 151 |
| Description | d | d1 | I±0.1 | I1 | Preload[N~] | Max.load[N~] |
| GN615-M5-KS | M5 | 3 | 12 | 0.9 | 15 | 22 |
| GN615-M6-KS | M6 | 3.5 | 14 | 1 | 19 | 28 |
| GN615-M8-KS | M8 | 4.5 | 16 | 1.5 | 36 | 62 |
| GN615-M10-KS | M10 | 6 | 19 | 2 | 57 | 104 |
| GN615-M12-KS | M12 | 8 | 22 | 2.5 | 61 | 110 |
| GN615-M16-KS | M16 | 10 | 24 | 3.5 | 68 | 142 |
| GN615-M20-KS | M20 | 12 | 30 | 4.5 | 84 | 166 |
| GN615-M24-KS | M24 | 15 | 34 | 5.5 | 127 | 237 |
Application:
Automation equipment field, industrial anti loosening field, etc.
Advantage of spring plunger ball plunger ball screw:
High load-bearing resistance, corrosion resistance, and a variety of anti-corrosion material options are provided to extend the service life;
Meet the customized needs of differentiated special coatings and materials in multiple industries.
Easy to install.
