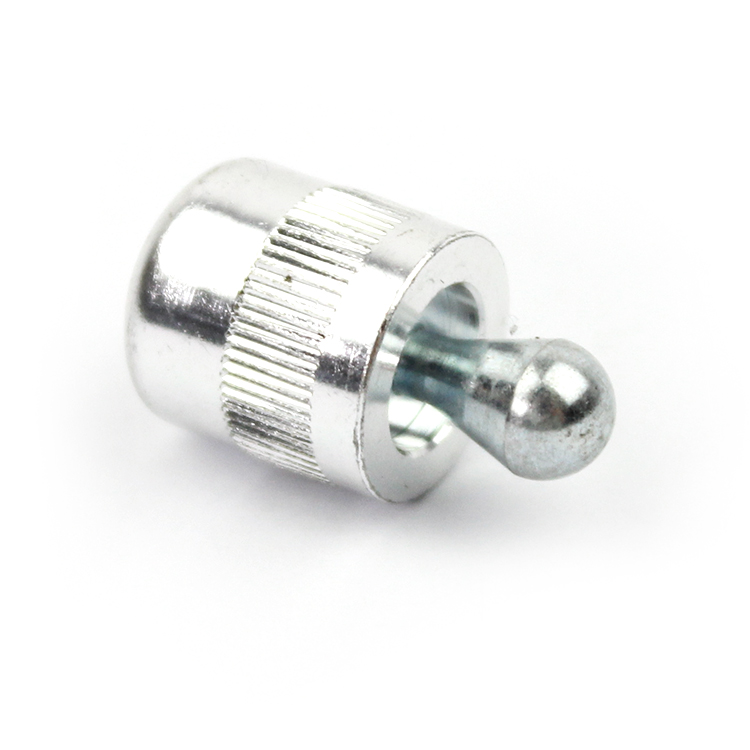

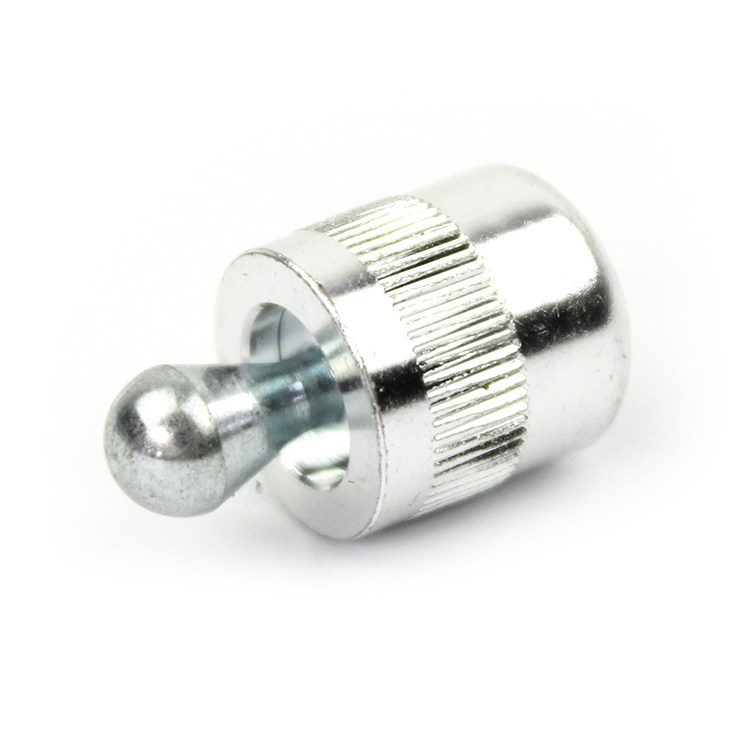

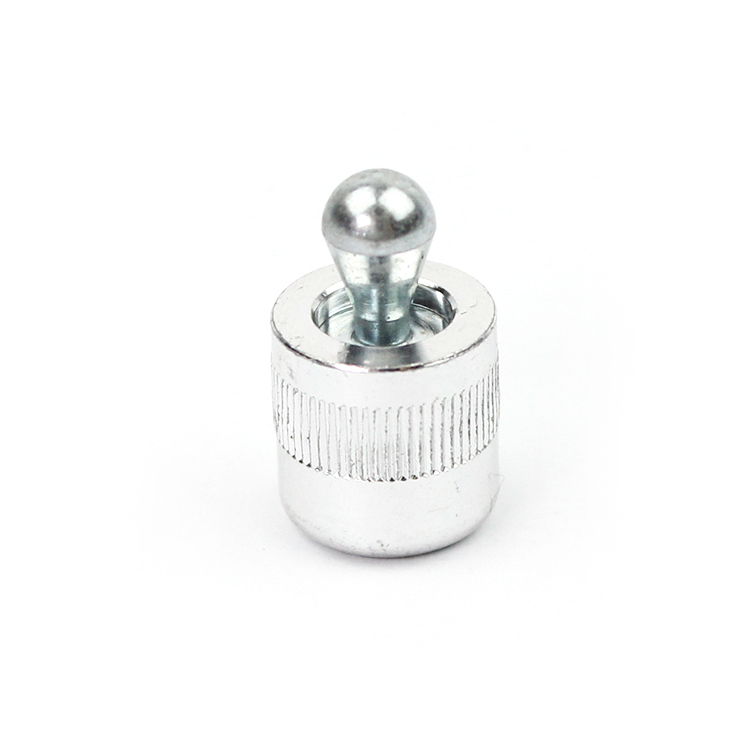

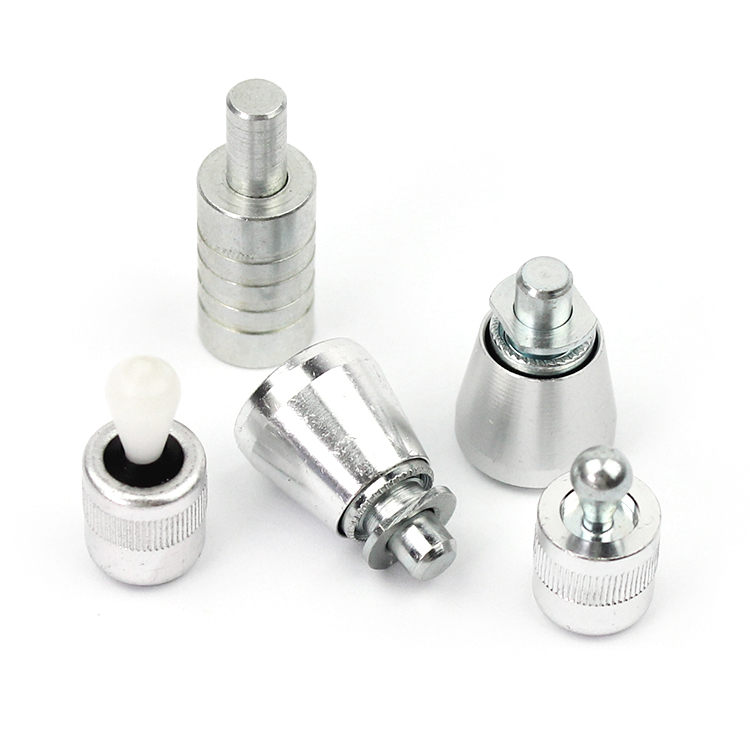

GN715 Lateral Spring Plunger is a lateral thrust spring plunger that provides axial elastic force through a built-in spring, used for mechanical positioning, buffering, or limit control. Its design features include lateral thrust and optional seal components, suitable for industrial environments that require dust and liquid resistance.
GN715 Lateral Spring Plunger,Thrust Pin Steel / Plastic
PDM
| Quantity: | |
|---|---|
Features of GN715 Lateral Spring Plunger
GN715 Lateral Spring Plunger Title:
Push Fit Ball Plunger Lateral Spring Plunger Thrust Pin
Ball Head Plunger Core Feature:
Shell and ball head material:
Steel: stainless steel (such as 304/316) shell, wear-resistant and corrosion-resistant, strong load-bearing capacity;

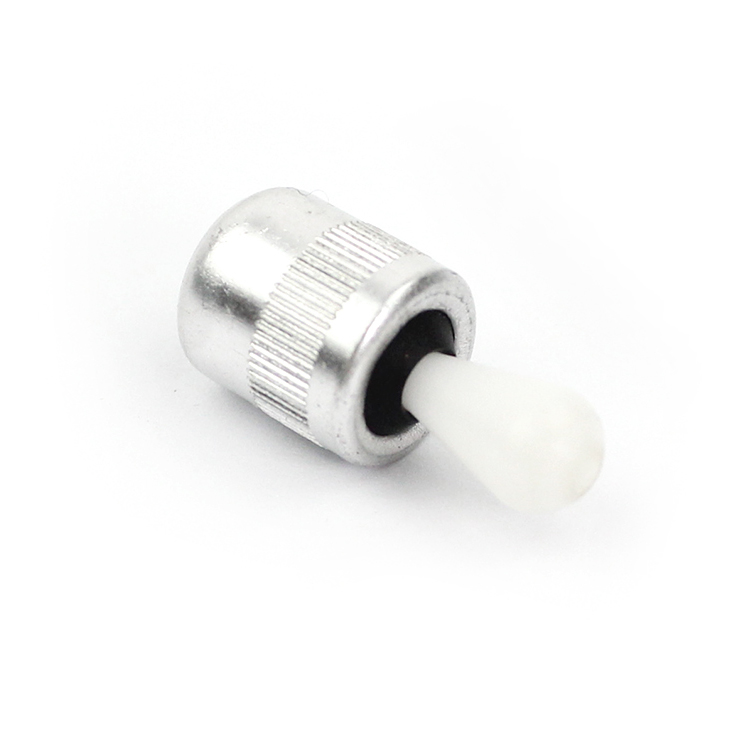

Plastic: POM or nylon material, insulated and non-magnetic, suitable for light load or scratch resistant scenarios;
Seal option
With Seal: O-ring or rubber gasket to prevent contaminants from entering the plunger and extend its service life.
Without Seal: Simplifid design, suitable for clean environments or low-cost needs;
Seal Material:
Using Chloroprene rubber (CR) and O-rings or customized gaskets made of FKM or Silicone materials to prevent dust and liquids from entering the internal structure of the plunger;
Dynamic sealing: Maintain sealing effectiveness during plunger expansion and contraction, reducing the risk of wear and leakage
Body Material: Aluminum Plain
Thrust pin:Steel or Plastic Polyacetal (POM)
Finish:Hardedned,Zinc plated, blue passivated
Housing Diameter:3mm,5mm,6mm,8mm,10mm or Customzied
Ball Diameter:6mm,10mm,12mm,16mm or Customized
Thrust Pin Height:4mm,6mm,10mm,13mm,16mm or Customized
Installation Type:Press On-Type
Lateral Thrust Force: ±S0.5,0.8,1,1.3,1.6 or according to the different demand of customers.

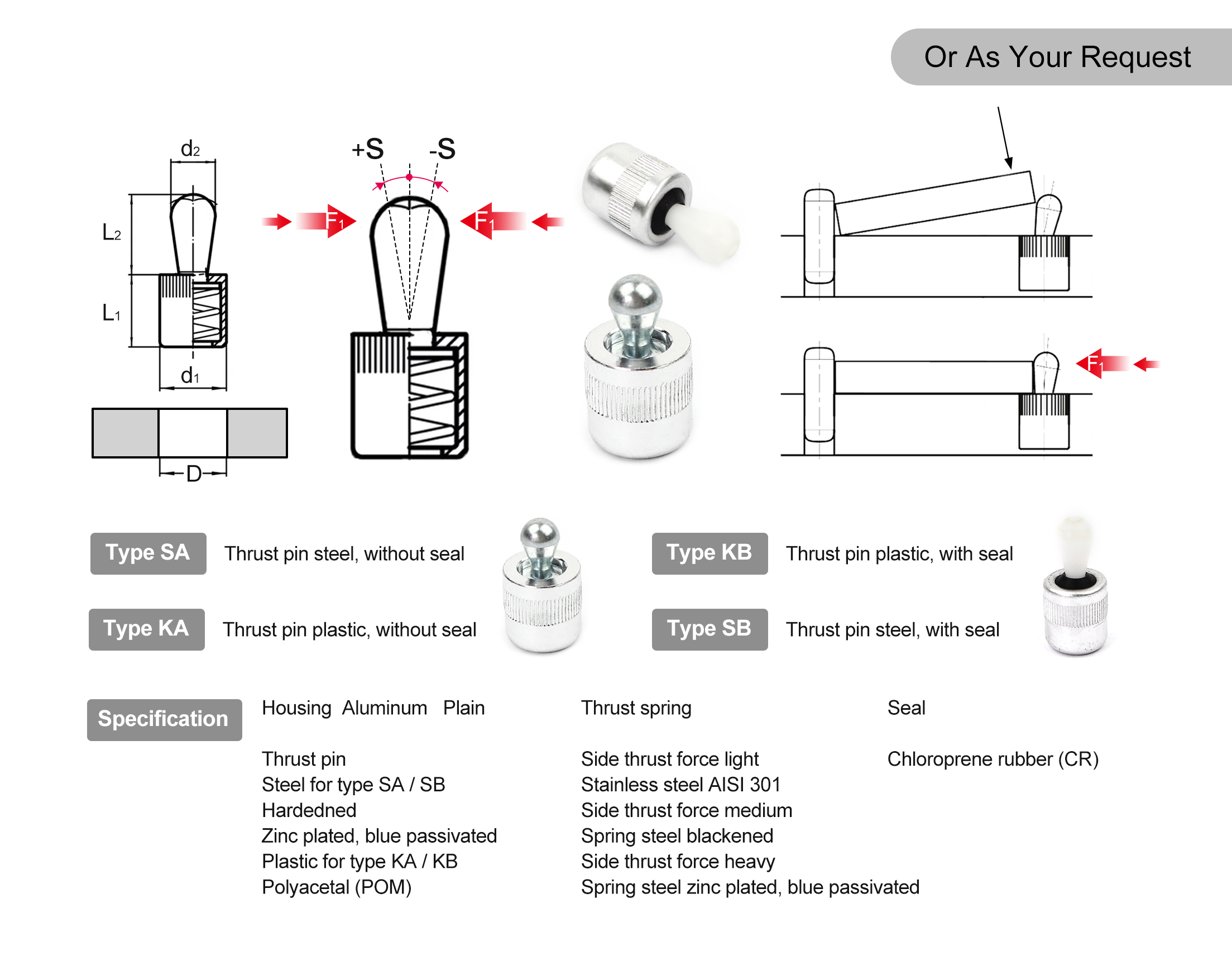

| D(mm) | d1(mm) | d2(mm) | L1(mm) | L2(mm) | ±S | F ca. (N) |
| 6 | 3 | 6 | 7 | 4 | 0.5 | 10 |
| 6 | 3 | 6 | 7 | 4 | 0.5 | 20 |
| 6 | 3 | 6 | 7 | 4 | 0.5 | 40 |
| 10 | 5 | 10 | 12 | 6 | 0.8 | 20 |
| 10 | 5 | 10 | 12 | 6 | 0.8 | 50 |
| 10 | 5 | 10 | 12 | 6 | 0.8 | 100 |
| 10 | 6 | 10 | 12 | 10 | 1 | 40 |
| 10 | 6 | 10 | 12 | 10 | 1 | 75 |
| 10 | 6 | 10 | 12 | 10 | 1 | 100 |
| 12 | 8 | 12 | 14 | 13 | 1.3 | 50 |
| 12 | 8 | 12 | 14 | 13 | 1.3 | 100 |
| 12 | 8 | 12 | 14 | 13 | 1.3 | 150 |
| 16 | 10 | 16 | 18 | 16 | 1.6 | 100 |
| 16 | 10 | 16 | 18 | 16 | 1.6 | 150 |
| 16 | 10 | 16 | 18 | 16 | 1.6 | 200 |
Customization Services
Material Combinations: Flexible selection of body, ball, and spring materials；
Dimensions & Parameters: Adjustable body diameter, ball size, and spring force to meet non-standard requirements
Lateral positioning of molds, guidance of automation equipment, outdoor mechanical protection (with sealed plungers to resist rainwater and dust erosion).
Ball Plunger Spring Loaded Advantage:
Press Fit installation
Thrust range: Lateral thrust is 6-40N, and the specific value is adjusted according to the spring load level (light/medium/heavy load);
Thrust spring:
Lateral Spring Plunger-Side thrust force light:Stainless steel AISI 301
Lateral Spring Plunger-Side thrust force medium: Spring steel blackened
Lateral Spring Plunger-Side thrust force heavy:Spring steel zinc plated, blue passivated
Notes:
Steel+sealing combination is preferred for high load and corrosive environments
Choose plastic unsealed version for lightweight and insulation requirements
