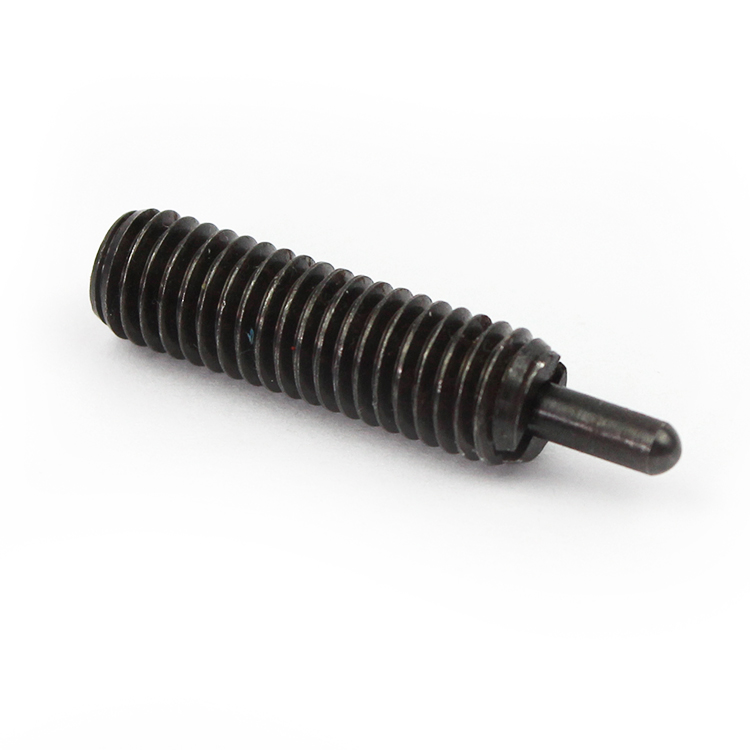

GN616 Nose Ball Plungers is a press fit spring plunger with a threaded cylindrical shell that is permanently fixed by embedding it into the substrate hole through cold pressing or thermal expansion and contraction methods; Its core functions are elastic limit, buffering and shock absorption, and rapid positioning of workpieces.
GN616 Nose Ball Plungers
PDM
| Availability: | |
|---|---|
| Quantity: | |
Features of GN616 Nose Ball Plungers
GN616 Nose Ball Plungers Title:

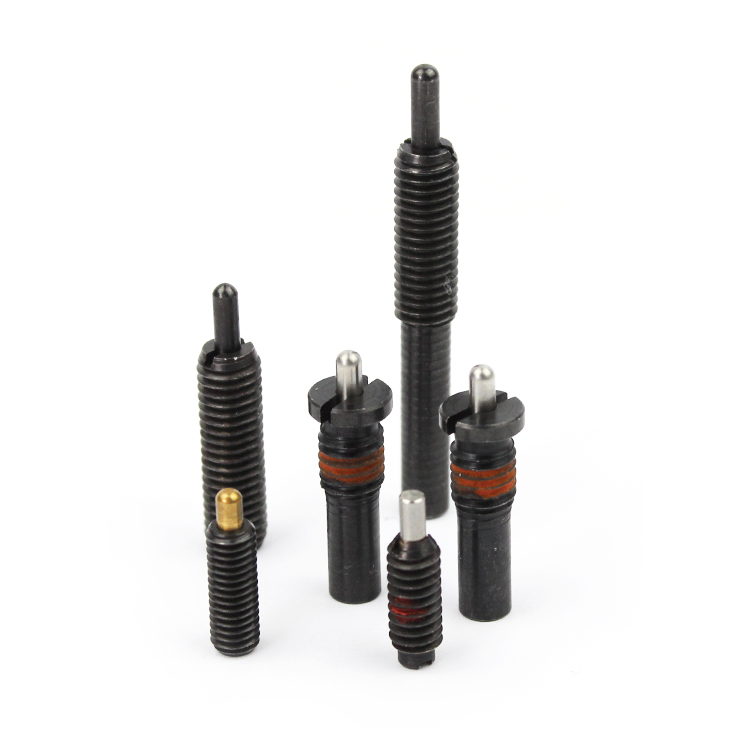

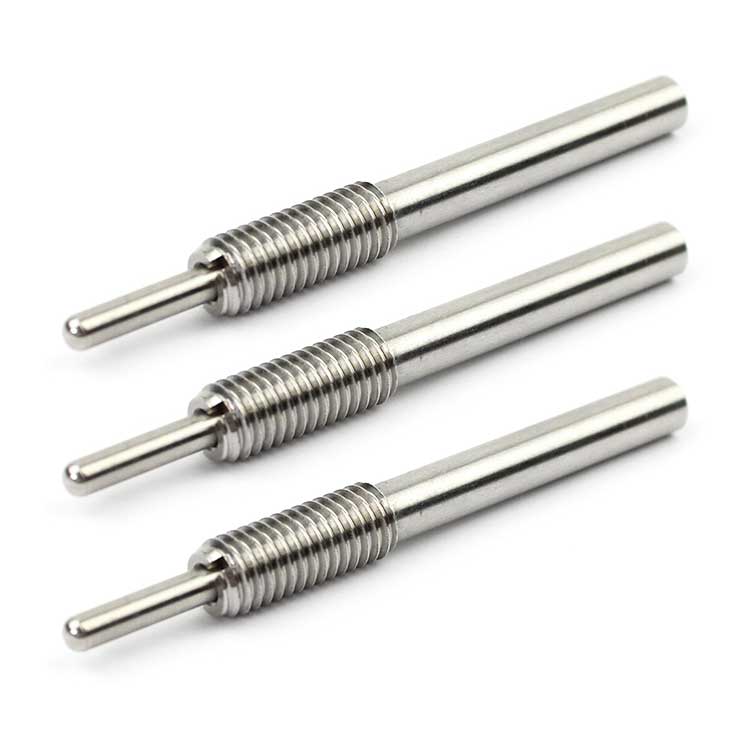

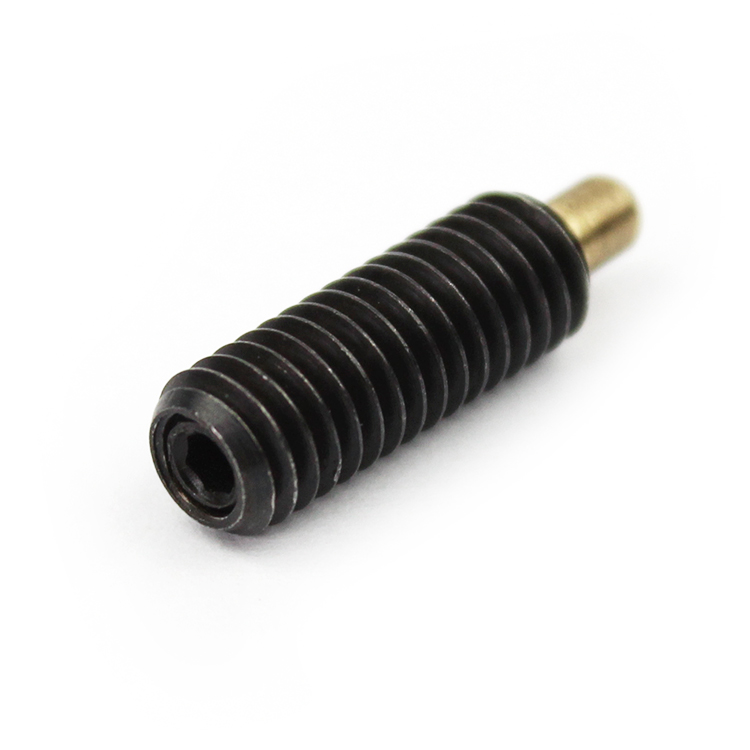

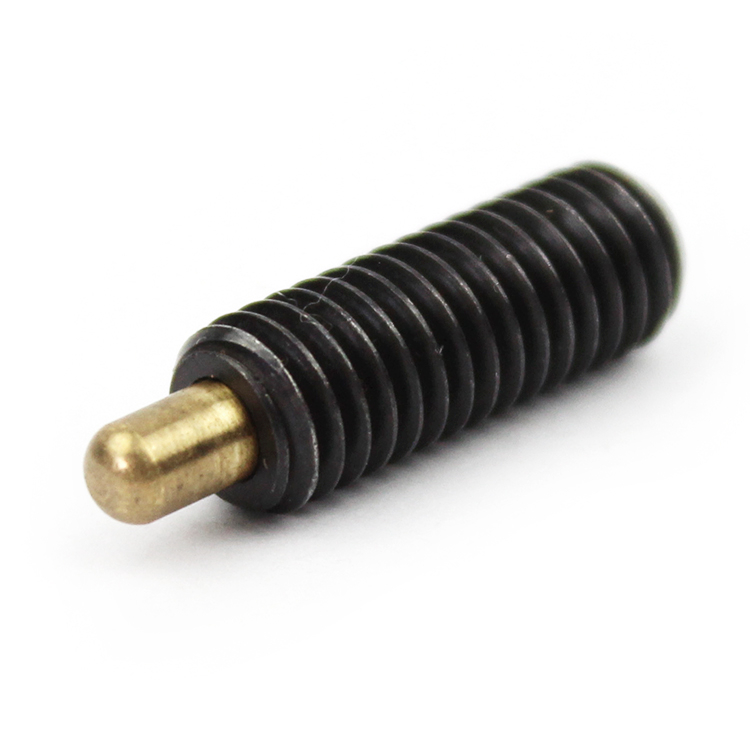

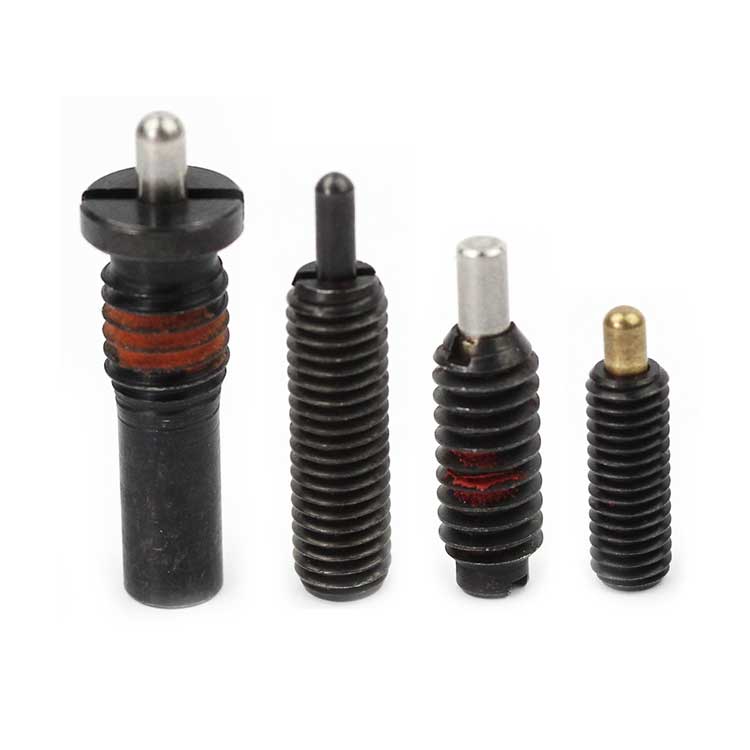

GN616 Long Nose Threaded Spring Plunger
Long Nose Plunger Introduction:
GN616 extra-long nose spring plunger are used as detents as well as for push-on and push -off applications and ejectors.The slot on the plunger side is provided for blind hole applications.
Body: Steel with black oxide finish or stainless steel
Nose: Hardened steel or acetal resin based (POM) Technopolymer.
Size:M3-M24 or As you requirements
Spring Material:Stainless steel ,steel hardened
Finish:Black Oxided,Plain,Zinc Plating,Nylon Patching,etc
Spring Pressure:
Preload [N~]: 2N~-70N~ Max.load [N~]: 4N~-170N~
Spring Type:

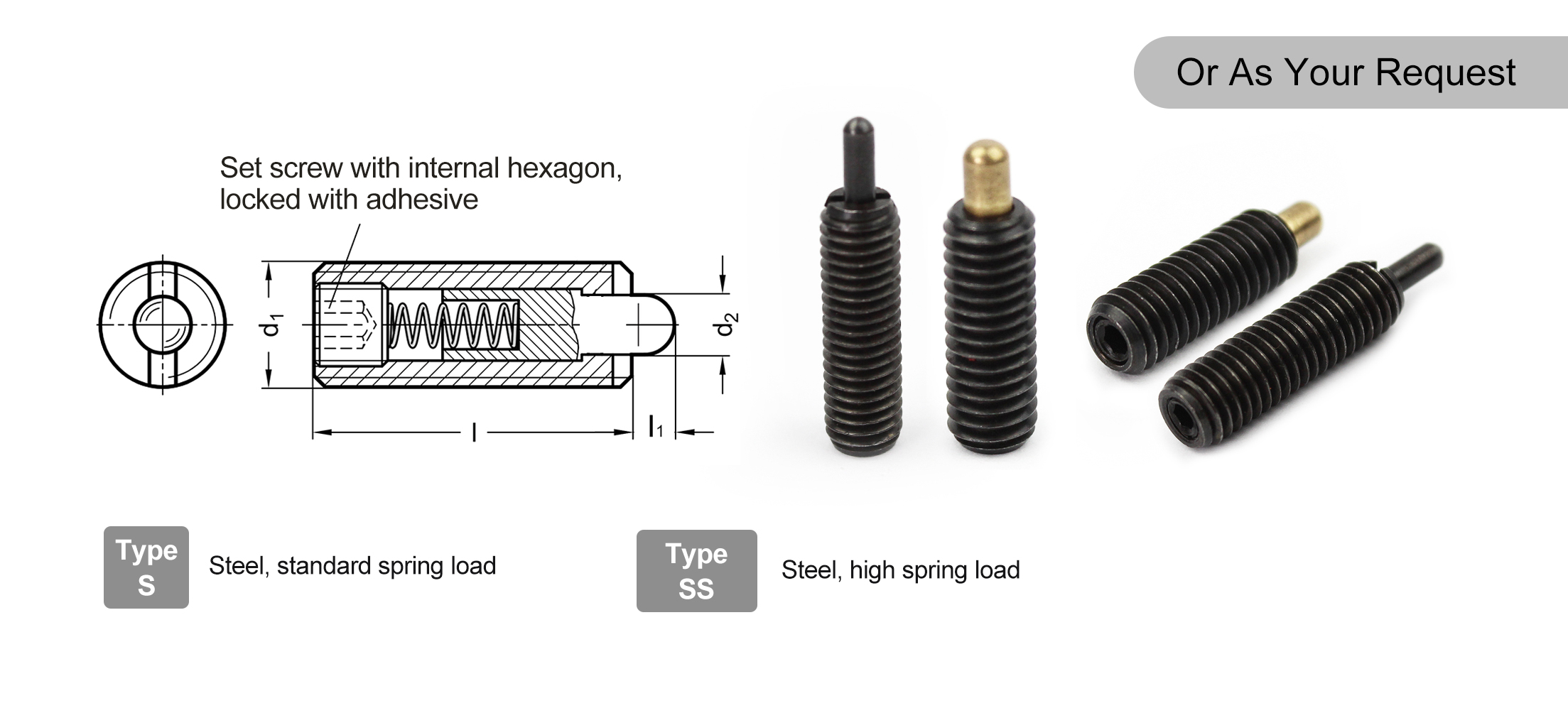

Standard Spring-GN616 S Steel, standard spring load
Hevay-duty Spring-GN616 SS Steel, high spring load

| Description | d1 | d2 | I+0.2 | Internal Hex | I1-0.1/+0.3 | Preload[N~] | Max.load[N~] |
| GN616-M3 | M3 | 1 | 12 | 0.7 | 1 | 2 | 4 |
| GN616-M4 | M4 | 1.5 | 15 | 1.3 | 1.5 | 4.5 | 16 |
| GN616-M5 | M5 | 2.4 | 18 | 1.5 | 2.3 | 6 | 19 |
| GN616-M6 | M6 | 2.7 | 20 | 2 | 2.5 | 6 | 19 |
| GN616-M8 | M8 | 3.5 | 22 | 2.5 | 3 | 10 | 39 |
| GN616-M10 | M10 | 4 | 22 | 3 | 3 | 10 | 39 |
| GN616-M12 | M12 | 6 | 28 | 4 | 4 | 12 | 53 |
| GN616-M16 | M16 | 7.5 | 32 | 5 | 5 | 45 | 100 |
| GN616-M20 | M20 | 10 | 40 | 6 | 7 | 52 | 125 |
| GN616-M24 | M24 | 12 | 52 | 8 | 10 | 70 | 170 |
Application:
Fixture positioning, protective cover locking, dashboard components, adjustable brackets, slide rail buffering, etc.

Long-nose Spring Plungers Function:
Long nose threatened spring plunger is a small mechanical component used for precise positioning of mechanical parts such as doors, covers, and fixtures. The ball is embedded in a groove to achieve a "snap in" effect.
It has features such as positioning and alignment, controllable resistance, and quick disassembly and adjustment.
Advantages of GN616 press fit extra long nose spring plunger:
High precision and durability:
High precision coordination, suitable for stable operation in high load scenarios;
Customizable spring preload force and adjustable resistance according to demand;
Support customized services and meet diverse needs;
