Inch Brass Tip Set Screw For Precision Assembly

Features of Inch Brass Tip Set Screw

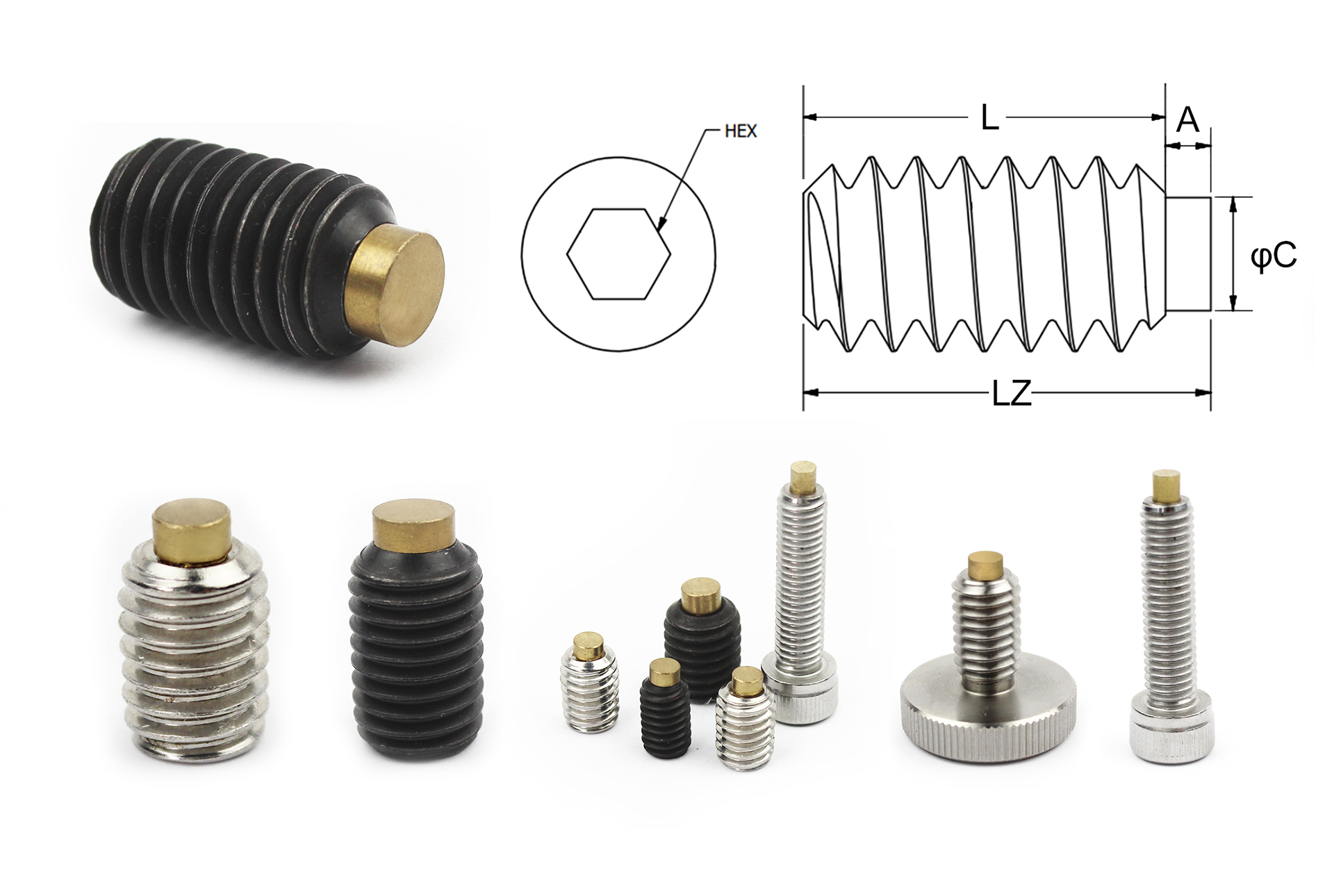

Brass Tip Set Screw Overview

Engineered for demanding mechanical environments, the socket nylon tip set screw and colorful soft tip set screw variants offer exceptional holding power without compromising the integrity of mating parts. These specialized fasteners are designed with a unique composite structure, combining a rigid, precisely threaded outer body with a softer, protective insert at the contact point. When handled, the clean, burr-free threads provide a smooth tactile feedback during initial hand-threading, ensuring proper alignment before final tightening. The vibrant color-coded nylon tips not only assist in rapid visual identification on busy assembly lines but also deliver a secure, non-marring grip against delicate shafts or threaded components. This thoughtful engineering prevents unwanted scoring, galling, or permanent indentation on expensive rotating shafts, making them an indispensable component for intricate mechanical assemblies where surface preservation is paramount.

Round Tip Set Screw Introduction

The brass tip set screw is a specialized fastener featuring non-metallic or brass ends, meticulously crafted to provide non-destructive clamping within precision assemblies. By acting as a protective buffer, it successfully avoids scratches, scoring, or crushing on the surface of fixed components. To guarantee exceptional reliability in critical applications, our manufacturing process incorporates rigorous quality control and inspection protocols. We provide comprehensive first-article inspection during the pre-production phase and strict final testing before shipment, ensuring a zero-defect rate and maximum consistency across large-scale batches. Furthermore, these protective fasteners strictly adhere to international manufacturing standards, including ASME, DIN, and ISO specifications. For projects requiring stringent material traceability, we readily supply complete Material Certifications for both the alloy bodies and the protective tips. This commitment to standardized excellence ensures that every screw delivers predictable, repeatable performance in high-stress environments.

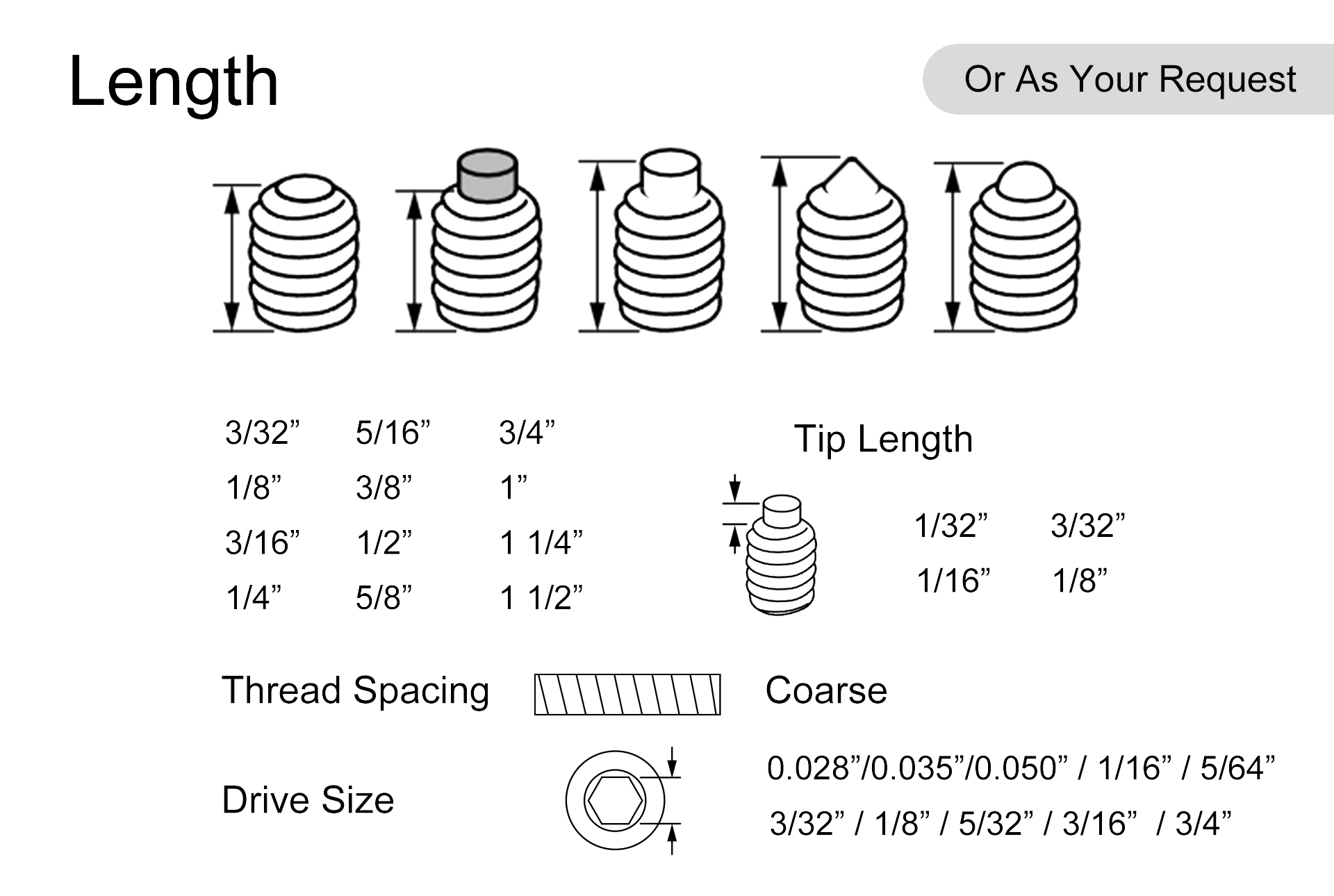

The common types of Soft Tipped Set Screw are as follows, each tailored for specific mechanical requirements:

• Configurations: Set Screw with Nylon and Brass Tip, Socket Cap Head with Nylon and Brass Tip, Spade Thumb Screw with Nylon and Brass Tip.

• Thread Size: Metric-M2-M24 or according to the product; Inch:#2/#3/#4/1/4inch/5/16inch or according to the product.

• Screw Material: Carbon Steel (Black Oxide), Stainless Steel (Such as SS304/SS316), Brass or plastic (POM/PP/Nylon).

• Tip Material: Plastic, Nylon6/6, Brass, etc.

• Tip Color: Nylon Tipped Green/Red/Blue, etc.

• Screw Head Type: Flat Head, Pan Head, Round Head, etc.

• Screw Drive Style: Slotted Type, Phillips, Hex Socket, etc.

• Finish: Zinc-plated, Nickel-plated, Black Oxide, etc.

Navigating these specifications requires a clear understanding of the operational environment. Our dedicated selection guide assists procurement teams in choosing between the distinct advantages of different tips. For instance, brass ends offer excellent electrical conductivity and resist deformation under higher torque, while nylon ends excel in vibration dampening and electrical insulation. We also provide comprehensive ODM/OEM customization services, accommodating requests for special thread pitches, non-standard lengths, and unique head configurations to perfectly match proprietary machinery designs.

Application & Installation Guidelines

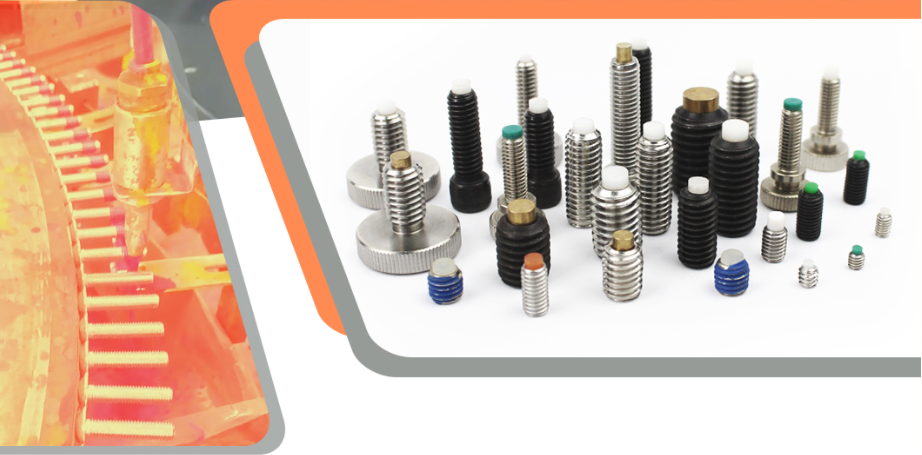

These specialized fasteners are widely utilized across multiple demanding sectors, including Furniture Assembly, PCB Board Fixation, Precision Instruments, and automated robotics. To maximize the effectiveness of these components, proper installation techniques are crucial. We provide detailed installation guidance, including specific torque recommendations when using standard hex keys or slotted drivers, ensuring the soft tip engages firmly without exceeding its compression limits. When torqued correctly, the installer will feel a solid, reassuring resistance that indicates optimal seating. For comprehensive assembly solutions, we highly recommend pairing these protective screws with compatible hardware such as precision shaft collars, retaining rings, and linear motion guides. This synergistic hardware combination minimizes radial play and extends the lifespan of the entire mechanical linkage. Additionally, we offer clear dismantling instructions to facilitate rapid maintenance and component replacement without damaging the host equipment.

The Function of Socket Set Screw Brass Tip

The primary mechanical function of these fasteners revolves around their unique dual-material construction. The soft end material significantly reduces wear on the surface of the workpiece, creating a protective barrier that absorbs localized stress. This is particularly vital when locking against softer metals like aluminum or polished stainless steel shafts. Furthermore, some models feature an advanced anti-loosening design that integrates a specialized threadlocker patch or a uniquely engineered groove structure. This integration dramatically enhances seismic resistance and anti-loosening performance, ensuring the fastener remains securely seated even under continuous, heavy vibration. Designed for universal compatibility, the standard hex socket or slot driver interfaces are perfectly suited for conventional tool operation, allowing for rapid integration into existing assembly workflows without the need for specialized tooling.

Rubber Tipped Set Screws Advantage

The distinct advantages of utilizing rubber and soft-tipped variants translate directly to improved product longevity and reduced maintenance overhead. The soft head design possesses inherent protective contact characteristics, meticulously maintaining the appearance and structural integrity of the workpiece. This eliminates the need for secondary finishing processes to remove set screw marks. They deliver high-precision clamping through uniform fastening and pressure application, effectively avoiding local deformation on thin-walled tubes or delicate sensory equipment. Material-specific benefits further elevate their utility: nylon ends are highly resistant to industrial oil stains and provide excellent electrical insulation, preventing unwanted grounding in electronic housings. Conversely, copper alloy ends are highly conductive and corrosion-resistant, making them ideal for grounding applications in harsh environments.

Supply Chain, Packaging & Commercial Services

Understanding the logistical demands of large-scale manufacturing, we have optimized our operational infrastructure to provide reliable, end-to-end commercial support. We offer versatile packaging specifications to protect the integrity of the precision threads and soft tips during transit. Options range from heavy-duty industrial cartons to reinforced wooden crates, alongside fully customizable bulk packaging solutions tailored to specific inventory management systems. Supported by a modernized production facility, we guarantee stable manufacturing capacity and rapid lead times, ensuring uninterrupted supply regardless of seasonal demand fluctuations. Commercially, we facilitate seamless international transactions by supporting multiple delivery terms, including FOB, and flexible payment methods such as T/T and L/C. Our dedicated support team provides a complete lifecycle service, from initial technical consultation and custom prototyping to responsive after-sales assistance, ensuring a smooth and efficient procurement experience.
