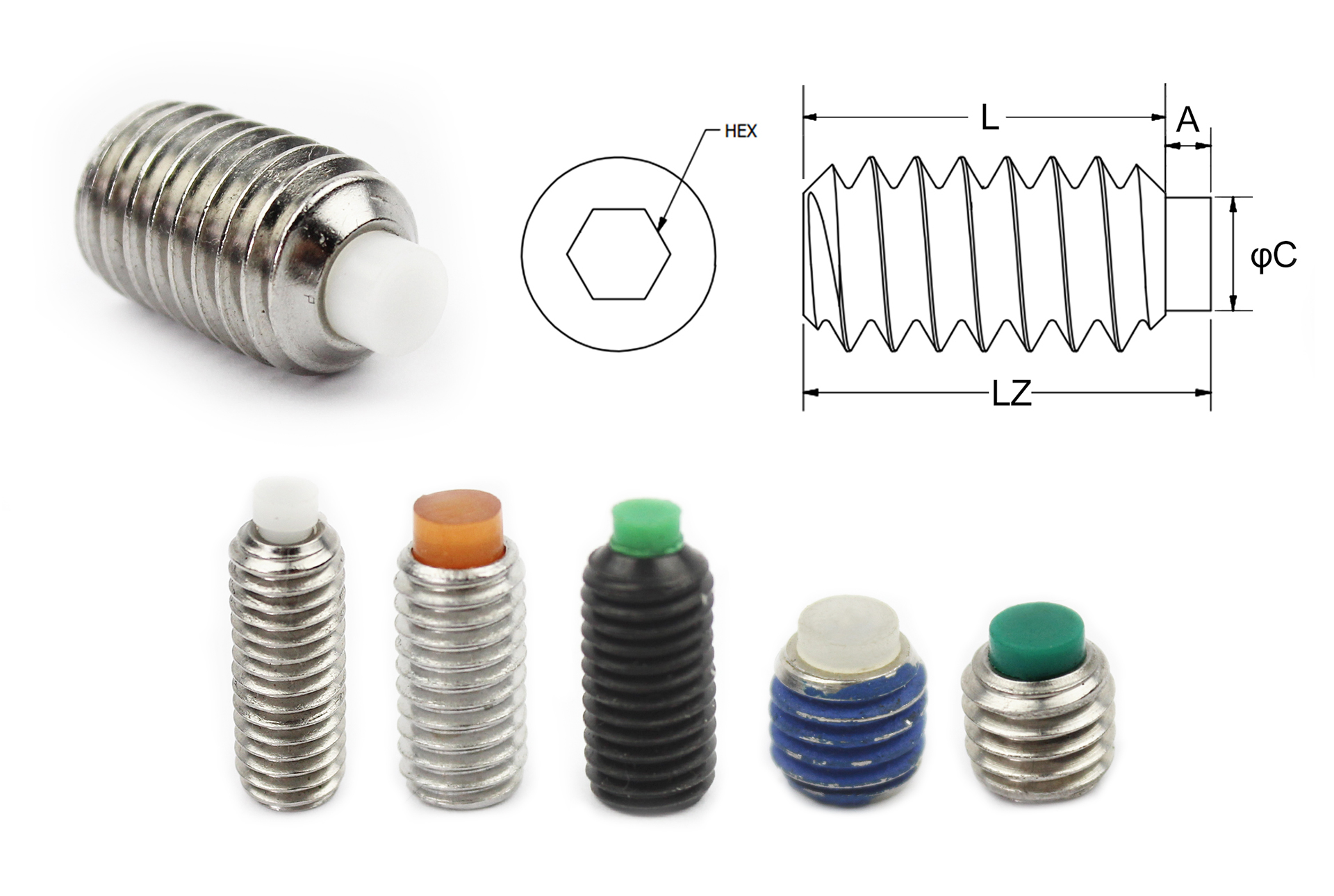

Inch Nylon Tip Set Screw For Precision Assembly

Features of Inch Nylon Tip Set Screw for Precision Assembly

Comprehensive Range of Soft Tip Set Screws

When securing delicate components, standard metal fasteners often cause unacceptable marring or indentation. Our comprehensive range of socket nylon tip set screws provides the definitive solution for non-destructive clamping. These specialized fasteners integrate a resilient, non-metallic insert directly into the driving end, creating a protective buffer between the threaded body and the mating surface. Available in a spectrum of colorful soft tip options—including industrial-grade POM, high-temperature PEEK, and classic Nylon 6/6—each variant is engineered to match specific substrate hardness and thermal requirements. Whether your assembly requires a flat head for maximum surface contact or a cone point for precise alignment, our soft-tipped fasteners ensure secure holding power without the risk of scratching, galling, or permanent deformation on your critical mechanical assemblies.

Introduction to Nylon Tip Set Screws

The nylon tip set screw is a meticulously engineered fastener designed specifically for environments where precision and surface integrity are paramount. Featuring a precisely machined metallic body paired with a soft, non-metallic nylon end, this component delivers exceptional clamping capabilities. When driven into a threaded hole, the polymer tip compresses slightly against the shaft or fixed component, creating a tight friction fit that inherently resists loosening from vibration. Assembly technicians can physically feel the smooth, consistent resistance as the nylon tip engages, providing tactile feedback that ensures optimal torque application without over-tightening. This unique composite construction completely avoids the micro-scratches and crushing typically caused by hardened steel points, making it an indispensable hardware choice for assembling delicate optical mounts, fluid control valves, and sensitive electronic housings.

Beyond standard dimensions, our inventory encompasses a versatile selection of soft-tipped set screws configured for diverse engineering demands. The tactile finish of the carbon steel variants features a deep, uniform black oxide coating that resists corrosion while providing a sleek, professional appearance. For environments requiring strict hygiene or extreme weather resistance, our stainless steel options offer a smooth, polished thread profile that drives consistently without binding. The common types and specifications of our Soft Tipped Set Screws are as follows:

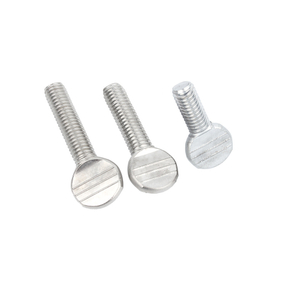

• Common Configurations: Set Screw with Nylon and Brass Tip, Socket Cap Head with Nylon and Brass Tip, Spade Thumb Screw with Nylon and Brass Tip

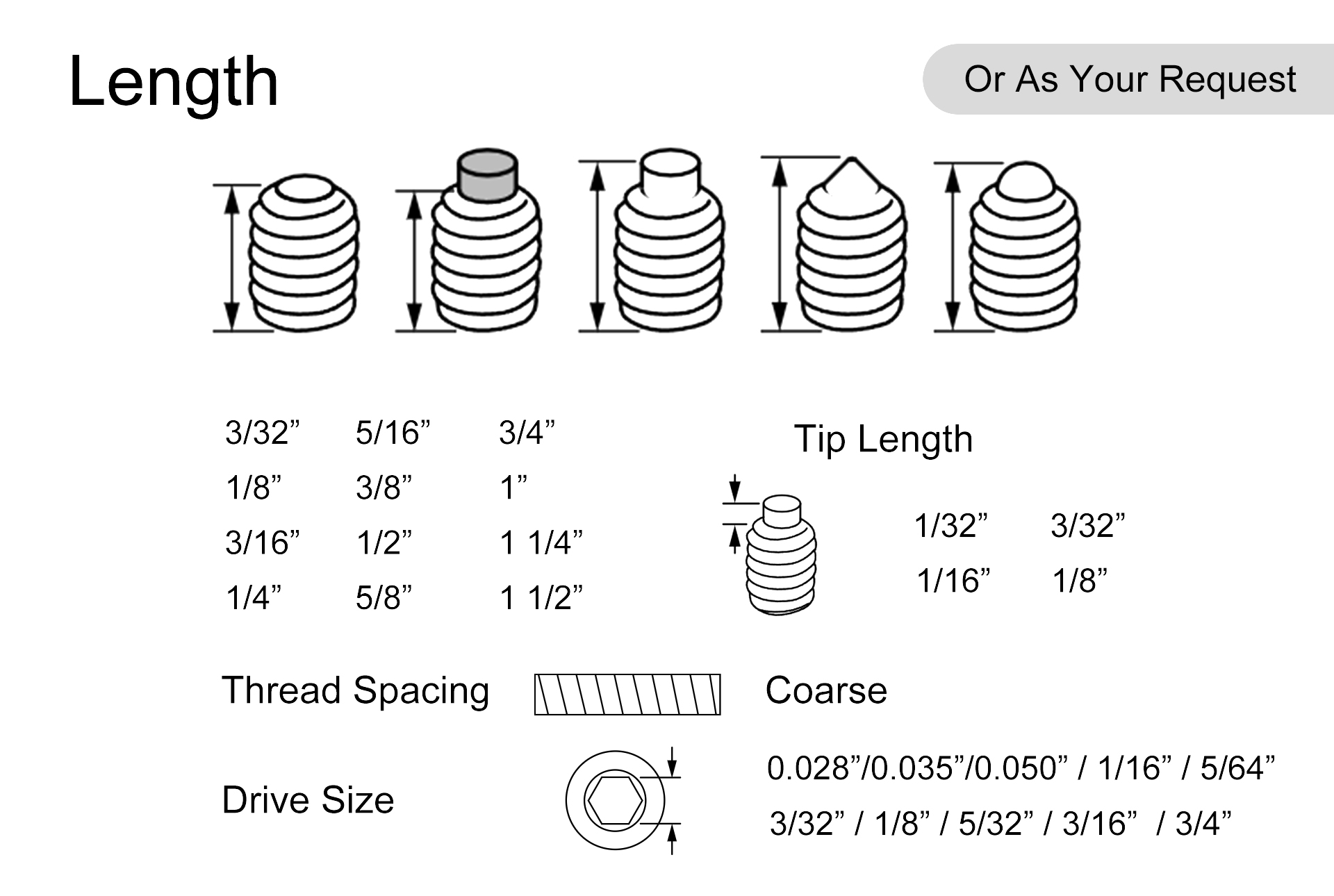

• Thread Size: Metric-M2-M24 or according to the product

• Inch Dimensions: #2/#3/#4/1/4inch/5/16inch or according to the product

• Screw Material: Carbon Steel (Black Oxide), Stainless Steel (Such as SS304/SS316), Brass or plastic (POM/PP/Nylon)

• Tip Material: Plastic, Nylon6/6, Brass, etc.

• Tip Color: Nylon Tipped Green/Red/Blue, etc., allowing for rapid visual identification on complex assembly lines.

• Screw Head Type: Flat Head, Pan Head, Round Head, etc.

• Screw Drive Style: Slotted Type, Phillips, Hex Socket, etc.

• Finish: Zinc-plated, Nickel-plated, Black Oxide, etc.

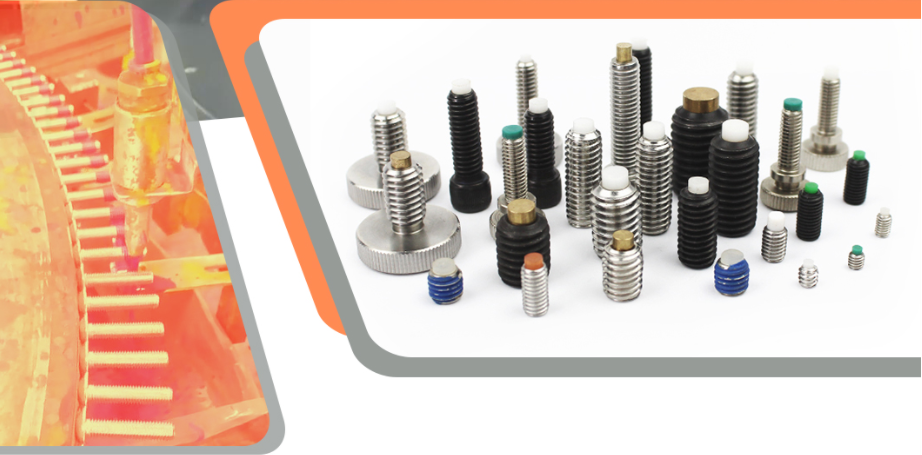

Advanced Application Scenarios

The unique protective properties of these fasteners make them essential across a broad spectrum of demanding industries. In high-end Furniture Assembly, they secure glass panels and polished metal fixtures without marring the visible surfaces. For PCB Board Fixation, the insulating nature of the nylon tip prevents electrical shorting while absorbing micro-vibrations that could otherwise dislodge delicate solder joints. Beyond these conventional uses, our precision-engineered screws are heavily utilized in advanced sectors. In the medical device industry, they secure surgical instrument housings where particulate shedding from metal-on-metal contact is strictly prohibited. Aerospace engineers specify them for avionics mounting, relying on their lightweight retention capabilities. Furthermore, in automation robotics and Precision Instruments, these fasteners ensure that critical optical sensors and calibration dials remain perfectly aligned under constant dynamic movement.

The Function of Socket Set Screw Nylon Tips

The primary function of the socket set screw with a nylon tip is to deliver uncompromising holding force while completely eliminating the risk of substrate damage. The soft end material acts as a compressible cushion, significantly reducing wear on the surface of the mating workpiece even after thousands of adjustment cycles. This makes them ideal for temporary fixtures or tuning mechanisms that require frequent repositioning. Additionally, some models feature an advanced anti-loosening design that integrates a specialized Threadlocker patch or a unique groove structure. This innovation dramatically enhances seismic and anti-loosening performance, ensuring the fastener remains firmly seated even in high-vibration environments. Designed with a standard hex socket or slot driver recess, these screws are fully compatible with conventional tool operations, allowing assembly technicians to apply precise torque with standard pneumatic or manual drivers without the risk of cam-out or tool slippage.

Key Advantages of Rubber and Nylon Tipped Set Screws

Utilizing our specialized tipped set screws provides substantial operational and financial benefits for manufacturing facilities. The soft head design inherently possesses protective contact characteristics, meticulously maintaining the pristine appearance and structural integrity of the clamped workpiece. This translates to fewer rejected parts and a significant reduction in secondary rework costs. Furthermore, the engineered tips ensure high-precision clamping by facilitating uniform fastening and even pressure application, which completely avoids local deformation on thin-walled tubes or soft alloy shafts. Functionally, the nylon ends are highly resistant to industrial oil stains and provide excellent electrical insulation. Conversely, our copper alloy and brass end options offer exceptional electrical conductivity and thermal resistance while remaining highly corrosion-resistant. Every fastener is produced under a strict ISO9001 quality management system, guaranteeing that the materials fully comply with RoHS, REACH, and other international safety standards for global distribution.

Supply Chain & Custom Manufacturing Capabilities

We recognize that specialized engineering projects often require tailored hardware solutions that go beyond off-the-shelf catalogs. Our robust manufacturing infrastructure supports comprehensive OEM and ODM customization services, allowing procurement teams to specify exact thread dimensions, unique tip shapes, and specific material hardness levels to perfectly match unique precision assembly requirements. To support your production schedule, we offer highly flexible Minimum Order Quantities (MOQs) alongside competitive tiered pricing for large-volume contracts. From rapid prototyping and fast sample dispatch to the stable, on-time delivery of massive bulk orders, our resilient supply chain is engineered to keep your assembly lines running smoothly without interruption.
