Custom Quick Release D Ring Pin
PDM
| Quantity: | |
|---|---|
Features of PDM Industries Custom 4mm quick release pin
As a professional and reputable manufacturer specializing in precision quick release pin push button, PDM delivers a comprehensive lineup of high-performance quick release ball locking pin engineered for industrial fastening, precise positioning, and equipment component adjustment. Covering a full range of handle styles including T-handle, L-handle, D-ring, standard button handle, recessed cup handle, and fully customizable bespoke handles, our positive locking push button pins support diversified application demands with flexible customizations on pin dimensions, ball lock quantities, and matching accessory configurations.
Crafted with premium precision turning technology, our spring loaded ball lock pins are available in multiple material grades to suit different budget and environmental requirements: lightweight rust-proof cast aluminum handles, cost-effective zinc-plated low carbon steel with reliable structural durability, and high-strength stainless steel boasting exceptional hardness and superior corrosion resistance. Featuring a fail-safe ball detent structure, these industrial locking pins only retract when manually pressing the low-profile button head to avoid accidental loosening during operation, while the reserved ring mounting design allows easy installation of lanyard accessories to prevent loss. Backed by mature production technology and strict quality control, our versatile ball lock quick release pins have gained widespread customer recognition, serving as trusted standard and custom fastening solutions for high-frequency disassembly and high-safety industrial working scenarios.
Technical Specifications - Metric & Inch Size Ball Lock Pin
All technical parameters are exclusive to PDM's D-ring quick release ball pins, tested and verified by professional industrial standards, with no universal generic data copied from other pin models:

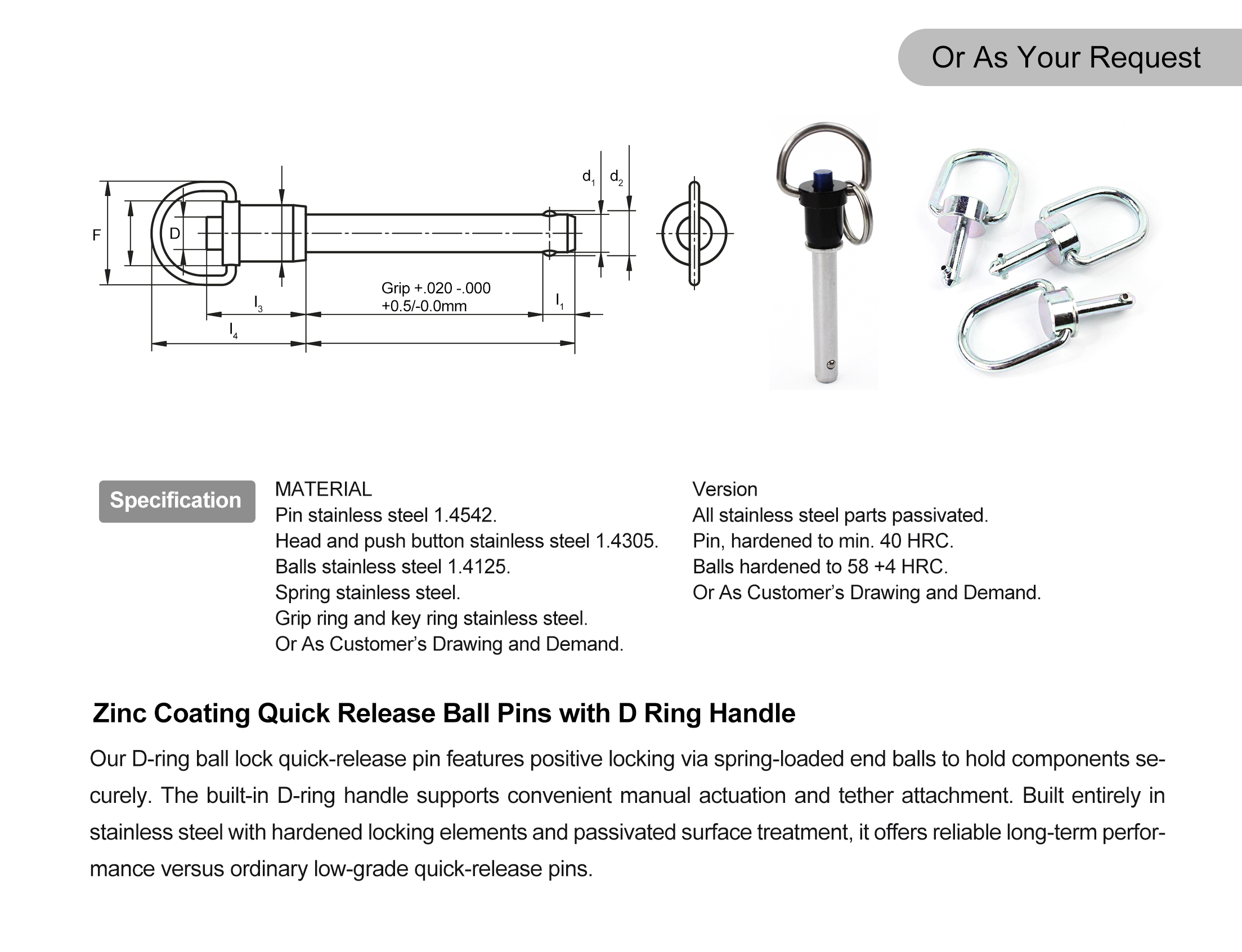

• Core Material Matching: Pin body adopts 1.4542 stainless steel; head and push button adopt 1.4305 stainless steel; positioning steel balls adopt 1.4125 stainless steel; spring and D-ring grip adopt full stainless steel structure.
• Hardness Standard: Pin body precision hardened to minimum 40 HRC; locking steel balls hardened to 58±4 HRC, ensuring long-term wear resistance and locking stability.
• Surface Treatment: All stainless steel components undergo integral passivation processing, effectively removing surface impurities and improving oxidation and corrosion resistance.
• Precision Machining: Adopts high-precision CNC turning process, with tight dimensional tolerance, smooth pin shaft surface, no burrs, ensuring smooth insertion and extraction without jamming.
• Structural Parameters: Supports multiple standard pin diameters and grip lengths; customizable single or multiple locking steel ball configurations; reserved mounting interface for lanyards and split rings.
• Performance Standard: Compliant with industrial mechanical fastening safety standards, suitable for high-frequency cyclic disassembly and continuous load-bearing working conditions.
• Optional Material Grades: Besides full stainless steel version, low-carbon steel with zinc plating and lightweight cast aluminum handle versions are available for differentiated budget and scenario demands.

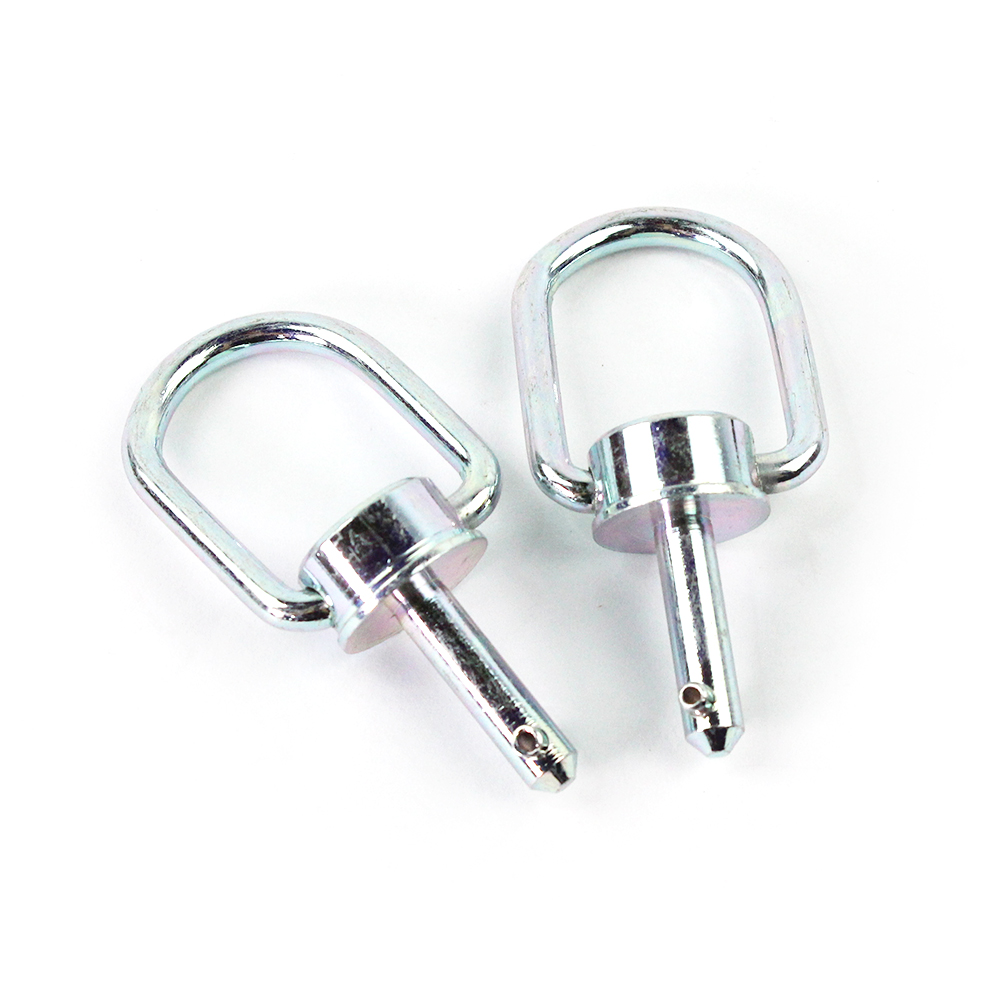

The D-ring zinc plated ball lock pin is a precision positive-locking industrial fastener engineered for tool-free, frequent assembly and disassembly operations, serving as a core positioning and locking component for modern mechanical systems.The core load-bearing pin body, locking steel balls, internal spring, and D-ring grip all adopt matched high-grade stainless steel, with professional hardening and full passivation treatment to deliver stable mechanical performance and excellent environmental adaptability.
PDM's OEM quick release ball lock pins d-ring style has verifiable practical performance advantages, solving multiple pain points of ordinary quick-release pins such as easy loosening, poor corrosion resistance, short service life, and inconvenient operation:
• Fail-Safe Positive Locking: The exclusive ball detent structure ensures the steel balls remain fully locked under working load and vibration. No accidental retraction occurs without pressing the button, completely avoiding equipment loosening or falling off caused by accidental collision, greatly improving operational safety.
• Ergonomic D-Ring Design: The integrated rounded D-shaped grip enables one-handed quick insertion and removal without auxiliary tools. Compared with button-only handles, the ring structure is more labor-saving for frequent pulling, and supports lanyard and split ring installation to prevent pin loss during frequent replacement and maintenance.
• Graded Material & Hardened Performance: Targeted material matching for different functional parts avoids the performance bottleneck of single-material pins. Hardened pin body and steel balls provide excellent wear resistance, resisting abrasion after thousands of disassembly cycles and maintaining long-term precise locking accuracy.
• Full Passivation Anti-Corrosion Protection: Overall passivation treatment eliminates surface rust spots and oxidation risks, enabling stable use in humid, dusty, and mild corrosive industrial environments, with a far longer service life than ordinary untreated stainless steel pins.
• High Assembly Compatibility: Smooth precision-machined pin shaft ensures tight fitting with equipment mounting holes, no gap shaking after locking, and accurate positioning, effectively improving the overall assembly precision of mechanical components.
• Diversified Version Adaptability: Multiple material and surface treatment options meet economical and high-standard industrial demands, covering ordinary indoor working conditions and harsh outdoor and humid environment scenarios.
Application of Quick Release D Ring Pins:
With its safe locking, convenient operation, and strong environmental adaptability, the d ring ball locking pin is widely applied in core fastening and positioning links of various industrial equipment, solving the frequent disassembly and adjustment demands of multiple scenarios:
• Industrial Automation Equipment: Used for quick positioning and fixing of automation tooling, movable brackets, and modular assembly components, facilitating rapid equipment debugging, module replacement, and production line switching, improving overall production efficiency.
• Automotive Manufacturing & Inspection Tooling: Applied to automotive jigs, inspection fixtures, and mold auxiliary positioning parts. Its high-precision locking and anti-loosening performance ensures stable fixture positioning during high-frequency detection and stamping operations.
• Conveying & Logistics Equipment: Suitable for height adjustment and component fixing of conveyor brackets, lifting equipment, and sorting machinery. The anti-loss D-ring design avoids pin loss during equipment movement and daily maintenance.
• Mechanical & Aerospace Auxiliary Equipment: Adopted for quick assembly and disassembly of mechanical frames, movable protective covers, and auxiliary structural parts, meeting the high safety and high precision requirements of precision mechanical equipment.
• General Industrial Jigs & Fixtures: Serves as standard quick-release fastening parts for various custom tooling, experimental equipment, and portable mechanical devices, providing flexible and reliable locking solutions for temporary and frequent adjusted structures.
As a professional quick-release pin manufacturer, PDM supports full-process OEM and non-standard customized services for D-ring ball lock quick-release pin 7/16, covering all personalized technical requirements of global industrial customers, with flexible and reliable custom solutions:
• Size Customization: Custom non-standard pin diameters, effective grip lengths, and overall pin heights based on customer equipment hole sizes and installation space.
• Structural Customization: Adjustable number and position of locking steel balls, customized D-ring size and thickness, and exclusive recessed or raised button head design.
• Material Customization: Optional 1.4542/1.4305 stainless steel, low-carbon steel, and cast aluminum handle combinations to adapt to strength, weight, and budget requirements.
• Surface Process Customization: Support enhanced passivation, zinc plating, polishing, and matte treatment to improve wear resistance, corrosion resistance, and appearance.
• Accessory Matching: Custom supporting lanyards, split rings, and anti-loss accessories, and integrated marking of customer logos and part numbers.
• Q1: What is the core difference between D-ring and T-handle quick release ball pins?
A1: The D-ring design focuses on portable operation and anti-loss performance, suitable for frequently moved and adjusted equipment; while T-handle pins provide larger gripping force for heavy-duty disassembly scenarios. The D-ring model is more compact and adaptable for portable and small-space installation environments.
• Q2: How to select the correct size d ring pin lock for my equipment?
A2: Confirm two core parameters: equipment mounting hole diameter and effective clamping thickness. Match the pin diameter with the hole size and select the grip length slightly longer than the clamping thickness to ensure complete locking and stable assembly.
• Q3: What are the differences between stainless steel and carbon steel versions in actual use?
A3: Full stainless steel pins feature passivation treatment, excellent corrosion and rust resistance, suitable for humid and harsh environments; carbon steel zinc-plated versions are more cost-effective, ideal for indoor dry conventional working conditions with low environmental requirements.
• Q4: Can you provide non-standard custom ball lock pins with special structures?
A4: Yes. We support full non-standard customization including special dimensions, multi-ball locking structures, customized handle shapes, and exclusive surface processes, with professional technical teams providing one-to-one solution design.
• Q5: Will the hardened steel balls affect repeated disassembly accuracy?
A5: No. The steel balls are hardened to 58±4 HRC with ultra-high wear resistance. After thousands of repeated disassembly and locking tests, the dimensional accuracy and locking tightness remain stable without jamming or loose locking.
