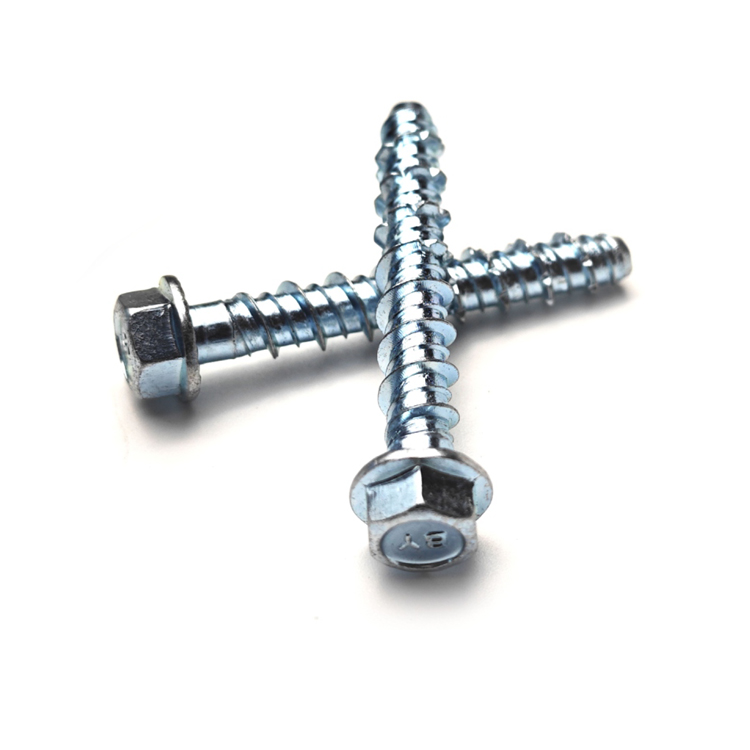

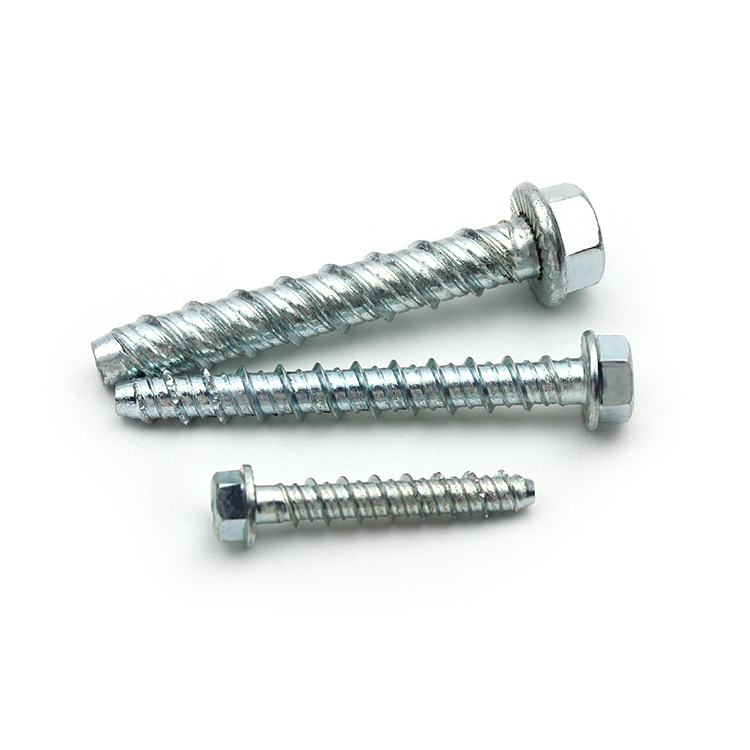

Structural integrity depends entirely on reliable fastening. When a connection fails, the root cause rarely points to material defects. Instead, catastrophic pull-out failures and shear stress vulnerabilities almost always stem from installation errors. Achieving proper load transfer in concrete substrates requires exact precision. If you ignore engineering tolerances, skip hole preparation, or disregard torque specifications, you risk severe structural damage and non-compliance with building codes.
Securing heavy equipment or structural steel demands a rigorous, evidence-based approach. You cannot rely on basic guidelines when dealing with dynamic loads and strict environmental factors. Implementing a reliable concrete anchor bolt requires understanding the base material, selecting the exact expansion mechanism, and executing a flawless installation sequence. This technical breakdown provides the exact protocols needed to evaluate structural conditions, prepare masonry substrates, and lock fasteners permanently into place.
Anchor Selection Dictates Process: The choice between a wedge anchor bolt, an expansion hook anchor bolt, or a standard fastener must align with specific tension, shear, and environmental load requirements.
Hole Preparation is Critical: Up to 50% of post-installed anchor failures are attributed to inadequate dust and debris removal prior to setting the anchor.
Torque Specifications are Non-Negotiable: Applying precise torque ensures proper expansion and load distribution; over-torquing damages the concrete, while under-torquing prevents the anchor from engaging.
Edge Distance and Spacing Matter: Strict adherence to manufacturer and engineering guidelines for anchor spacing prevents concrete spalling and overlapping stress cones.
Every successful fastening application begins with defining baseline structural requirements. You must identify the specific load type acting on the joint before selecting hardware. Static loads exert constant, unchanging force, such as a structural column supporting a roof. Dynamic loads introduce vibration, wind shear, or seismic activity, such as a heavy stamping press or an exterior signpost. The condition of the concrete itself dictates your options. Uncracked concrete provides a solid, uninterrupted matrix for expansion. Cracked concrete requires specialized anchors designed to expand further if a fissure widens under stress. Environmental exposure determines the necessary corrosion resistance. Indoor climate-controlled spaces allow for standard zinc plating, but exterior, coastal, or chemical environments demand high-grade stainless steel to prevent galvanic corrosion.
High-stakes applications require exact load calculations and field verification. Bolting down heavy shop machinery introduces intense vibration that can slowly back out improper fasteners over time. Securing safes and vaults demands extreme shear strength to resist tampering, prying, and lateral force. When anchoring structural base plates for steel columns, the fasteners must handle immense compressive and tension loads simultaneously. Understanding these real-world demands contextualizes why selecting the correct hardware matters before drilling a single hole. A 10,000-pound two-post automotive lift, for example, requires anchors that can withstand massive asymmetrical tension loads when a vehicle is raised. You cannot guess on these specifications; you must match the hardware to the exact mechanical demands of the equipment.
Solid concrete applications frequently rely on a wedge anchor bolt. Often called concrete stud anchors, these fasteners feature a threaded stud with a conical end and a free-floating expansion clip. As you tighten the nut, the cone pulls up into the clip, wedging it permanently against the concrete walls. This design delivers exceptional pull-out resistance. You use these primarily for heavy-duty structural connections where maximum holding power is required. They perform best in solid, uncracked concrete and offer rapid installation for base plates, racking systems, and structural supports. Because they are torque-controlled, their holding capacity is directly proportional to the accuracy of your installation torque. They are permanent fixtures; once the clip expands, you cannot extract the anchor without destroying the surrounding concrete.
Suspension and tie-down applications require specific mechanical engagement. An expansion hook anchor bolt utilizes a similar wedging mechanism but terminates in an open hook or closed eye rather than a threaded stud. This makes it ideal for hanging overhead fixtures, securing guy wires, routing cables, or suspending HVAC equipment. The mechanical expansion ensures the hook remains firmly embedded even under constant static tension. Conversely, a standard fastener lacks an independent expansion mechanism. Standard bolts rely entirely on friction, pre-threaded inserts, or chemical adhesives to grip masonry. Without an expanding collar or epoxy bonding agent, standard bolts will slip and pull out under heavy tension in raw concrete environments. You should never use standard machine bolts directly in drilled concrete holes for load-bearing applications.
Fastener Type | Primary Load Type | Mechanical Action | Ideal Application | Field Limitations |
|---|---|---|---|---|
Wedge Anchor | Heavy Tension & Shear | Torque-controlled expansion clip | Structural base plates, heavy machinery, pallet racking. | Cannot be used in brick or hollow block. Permanent installation only. |
Expansion Hook | Static Suspension | Torque-controlled sleeve or clip | Overhead lighting, guy wires, chain tie-downs, suspended piping. | Not suitable for dynamic or vibrating loads. Open hooks can deform under extreme weight. |
Standard Fastener | Light Shear (with adhesive) | Thread friction or chemical bond | Wood-to-wood connections, pre-threaded drop-in inserts. | Fails completely under tension in raw concrete without secondary adhesive bonding. |
Engineers generally choose between cast-in-place and post-installed methods based on project timelines and structural demands. Cast-in-place involves setting anchors during the wet concrete pour. You lay out locations directly from architectural plans, secure the bolts to the wooden forms or rebar grid, and verify alignment before the concrete cures. This method offers superior strength because the concrete cures directly around the steel, but it leaves zero margin for layout errors. If a bolt shifts during the pour, the mating equipment will not fit. Post-installed anchors require drilling into cured concrete. This approach provides flexibility for equipment placement and accommodates field modifications. However, post-installation demands strict adherence to drilling and cleaning protocols to achieve the required holding capacity. Most retrofit and renovation projects rely exclusively on post-installed mechanical anchors.
The base material dictates the ultimate holding power of any fastener. Concrete compressive strength, measured in pounds per square inch (PSI), directly impacts anchor expansion. High-PSI concrete (4,000 to 6,000 PSI) provides a rigid, dense matrix that forces the anchor clip to bite aggressively into the aggregate. Low-PSI concrete (2,500 PSI or below) or green, uncured concrete can crumble under the localized pressure of an expanding clip. You must allow new concrete to cure for a minimum of 28 days before installing expansion fasteners. Attempting to torque an anchor in uncured concrete will crush the surrounding cement paste, causing the clip to spin freely and resulting in immediate pull-out failure. Always verify the concrete mix design and curing logs before beginning a fastening phase on new construction.
Evaluating directional forces prevents catastrophic joint failure. Tension loads pull the fastener straight out of the hole, fighting the friction of the expansion clip. Shear loads apply force perpendicular to the fastener, attempting to slice the steel stud off at the concrete surface. You must calculate both forces acting on the connection, especially in applications like retaining walls or cantilevered supports where both forces act simultaneously.
Determine the total weight of the equipment or structural member.
Identify the center of gravity to calculate asymmetrical load distribution across the anchor group.
Calculate the maximum potential wind or seismic uplift (tension).
Calculate the maximum lateral force (shear).
Cross-reference these figures with the anchor manufacturer's published load tables.
Apply a safety factor, typically 4:1 for static loads and up to 10:1 for dynamic or overhead loads, to ensure the chosen hardware exceeds the maximum possible stress.
Environmental conditions dictate material selection and protective coatings. Moisture, airborne chemicals, and salt exposure rapidly degrade standard carbon steel. Use standard zinc-plated hardware strictly for dry, indoor applications. Specify hot-dipped galvanized or Type 316 stainless steel for exterior, marine, or corrosive industrial environments. Geographic location also influences selection. Seismic zones require specialized, seismically rated anchors tested specifically for cracked concrete conditions. During an earthquake, concrete flexes, causing microscopic cracks to open and close. Standard expansion clips lose their grip when a crack opens across the drill hole. Seismic anchors feature specialized sleeves and secondary expansion mechanisms that dynamically adjust to maintain tension even as the concrete shifts and fractures around them.
Accuracy begins before you pick up a drill. Mark your drill locations directly from the project plans using a laser level and concrete chalk. Verify all edge distances and spacing requirements to prevent structural blowouts. Once locations are marked, determine the required embedment depth specified by the manufacturer. Add the thickness of the fixture (the base plate or equipment flange) to the embedment depth, plus the thickness of the nut and washer, to calculate the total anchor length needed. Set a physical depth stop on your rotary hammer drill. Drilling too shallow prevents the nut from threading properly and leaves the equipment loose. Drilling too deep allows the anchor to slip below the surface during the driving phase, rendering it useless.
Hole diameter dictates anchor engagement. You must use an ANSI B212.15 compliant carbide-tipped masonry bit. Do not use worn bits; as the carbide tip wears down, it creates undersized holes that prevent anchor insertion and strip the expansion clip. The drill bit diameter must match the anchor diameter exactly. A 5/8-inch anchor requires a 5/8-inch drill bit. Use a professional-grade SDS-Plus or SDS-Max rotary hammer drill set to the hammer-drill mode. The percussive action pulverizes the concrete aggregate, while the spiral flutes evacuate the dust. Keep the drill perfectly perpendicular to the surface. Rocking the drill creates oval-shaped holes, which severely compromise the anchor's ability to grip the concrete evenly.
Residual dust destroys anchor grip. Concrete dust acts as a dry lubricant between the expansion clip and the concrete wall, drastically reducing friction. You must execute the OSHA-compliant "blow-brush-blow" method for every single hole. First, use compressed air with a nozzle extension or a manual blowout pump to force dust out from the very bottom of the hole. Next, insert a stiff wire brush matching the hole diameter and scrub the walls vigorously with a twisting motion to loosen caked-on debris from the concrete pores. Finally, blow the hole out a second time until no visible dust emerges. Skipping this step accounts for the vast majority of post-installation failures. If you install an anchor in a dirty hole, it will fail under load.
Position your fixture or base plate over the prepared holes. Thread the nut onto the anchor until it sits flush with the top of the threads. This protects the internal threads from deformation during the driving process. Insert the anchor through the fixture and into the hole. Use a heavy 3-pound sledgehammer to drive the bolt down. Strike the top of the nut squarely. Drive the fastener until the washer and nut sit completely flush against the fixture. Do not force an anchor into a hole that is too tight. If the anchor binds after a few strikes, extract it immediately and verify your drill bit size and hole depth. Forcing it will bend the stud and ruin the connection.
Mechanical expansion requires precise tension. Begin by hand-tightening the nut against the structure to achieve a "snug tight" condition. This pulls the fixture flat against the concrete and initiates the wedging action of the clip. Next, use a calibrated torque wrench to apply the final tension. Consult the manufacturer's technical data for the exact foot-pound torque specification. As you apply torque, the conical stud pulls upward, forcing the clip outward into the concrete pores. Stop exactly at the specified torque. Guessing with an impact wrench guarantees failure. An impact wrench will either under-expand the clip, leaving it loose, or over-torque the stud, pulling the cone completely through the clip and crushing the surrounding concrete matrix.
Concrete possesses immense compressive strength but relatively poor tensile strength. When an anchor expands, it creates a stress cone—a 45-degree angle of force radiating outward and upward from the embedded end of the fastener toward the surface. If you place anchors too close to an unsupported edge, this stress cone shears through the side of the slab, causing explosive spalling and complete joint failure. Similarly, placing anchors too close together causes their individual stress cones to overlap, multiplying the internal pressure until the concrete fractures between the holes. Always strictly adhere to the manufacturer's minimum edge distance and spacing guidelines. A general field rule is to maintain an edge distance of at least five times the anchor diameter, and a spacing distance of at least ten times the anchor diameter, though engineered plans supersede these rules of thumb.
Hitting reinforcing steel halts installation immediately. You will feel the rotary hammer suddenly stop progressing and hear a distinct metallic ringing sound. Do not attempt to force a standard carbide masonry bit through rebar; you will melt the bit and potentially damage the structural reinforcement of the slab. Stop drilling and consult the project engineer. They may approve relocating the hole slightly to avoid the steel. Alternatively, they might authorize using a specialized hollow-core rebar cutter bit to core through the steel. However, cutting rebar requires explicit engineering approval, as severing a tensioned rebar tendon can compromise the structural integrity of the entire concrete span. Ground Penetrating Radar (GPR) scanning prior to drilling effectively mitigates this risk.
Pull-out failures occur when the expansion mechanism fails to grip the concrete walls. This usually results from two specific errors: under-torquing or over-torquing. Under-torquing leaves the expansion clip loose. When a load is applied, the anchor simply slides out of the hole with zero resistance. Over-torquing pulls the cone too far up the stud, crushing the concrete matrix around the clip and turning solid rock into loose gravel. Once the concrete is crushed, the anchor loses all holding power. Strict quality assurance processes prevent this. Mandate the use of calibrated click-style torque wrenches on all sites and require supervisors to verify torque values before signing off on structural connections.
Commercial construction requires verified performance data. You cannot specify generic, untested hardware for structural applications. Always source anchors backed by an International Code Council Evaluation Service (ICC-ES) report. These independent reports verify that the fastener meets specific building code requirements for tension, shear, and seismic performance. Engineers rely on ICC-ES documentation (specifically the ESR number) to calculate load capacities legally and safely. Using unrated hardware exposes the project to failed municipal inspections, severe liability issues, and catastrophic structural failure. Inspectors will check the head stamp on the anchors to verify they match the approved submittals.
Verification ensures long-term safety and code compliance. Post-installation inspections begin with visual checks. Inspectors verify that the anchor is driven to the correct depth, the washer is flat, the nut is fully engaged, and the minimum edge distances are maintained. Next, torque verification involves checking a random sample of installed anchors with a calibrated wrench to ensure they meet specifications. For highly critical connections, such as suspended walkways or heavy crane rails, engineers may require proof-load testing. This involves attaching a hydraulic pull-tester to the installed anchor and applying a specific tension load to physically verify its holding capacity in the field without yielding the steel or cracking the concrete.
A fastening system only performs as well as its installation. The most engineered fastener in the world will fail if placed in an improperly cleaned hole or tightened without a calibrated torque wrench. Structural reliability demands strict adherence to layout, drilling, cleaning, and torquing protocols. By matching the correct expansion mechanism to your specific load requirements and concrete conditions, you eliminate the variables that lead to joint failure.
Take the following actions to secure your next installation:
Review your project load requirements to select the exact fastener type needed for tension and shear demands.
Verify the compressive strength and age of your concrete substrate before drilling.
Equip your installation team with ANSI-compliant bits, blowout pumps, wire brushes, and calibrated torque wrenches.
Consult project structural engineers to confirm all edge distances, spacing requirements, and ICC-ES compliance documentation.
A: Embedment depth depends entirely on the anchor diameter and the manufacturer's specifications. Generally, minimum embedment is at least 4 to 5 times the diameter of the anchor. Deeper embedment increases pull-out resistance. Always consult the specific product data sheet to ensure the depth matches your engineered load requirements.
A: No, they are designed for permanent installation. Once the clip expands into the concrete, pulling the stud upward only wedges it tighter. If removal is necessary, the standard practice is to remove the nut and washer, then use an angle grinder to cut the stud completely flush with the concrete surface.
A: A hook anchor features a mechanical expansion collar that flares outward to grip concrete when tightened, making it ideal for suspension loads. A standard fastener lacks this expansion mechanism and relies solely on friction or threads, which will slip and fail under tension in raw masonry.
A: The most common causes of failure are improper hole cleaning, using the wrong drill bit size, over-torquing, under-torquing, and placing anchors too close to unsupported concrete edges. Dust left in the hole acts as a lubricant, preventing the expansion clip from gripping the concrete.
A: Yes. A standard rotary drill cannot penetrate cured concrete effectively. A hammer drill or rotary hammer provides the percussive force necessary to pulverize the masonry while rotating to clear the debris, ensuring a perfectly round hole that matches the anchor's tolerances.
A: It must be completely free of dust. You must use the blow-brush-blow method: blow out the dust with compressed air, scrub the walls with a wire brush, and blow it out again. Residual concrete dust severely reduces the anchor's holding capacity.
A: Position the equipment, mark the floor through the pre-drilled base plates, move the equipment, and drill the holes. Clean the holes thoroughly. Reposition the equipment, insert wedge anchors through the base plates into the holes, drive them flush, and tighten to the specified torque.
